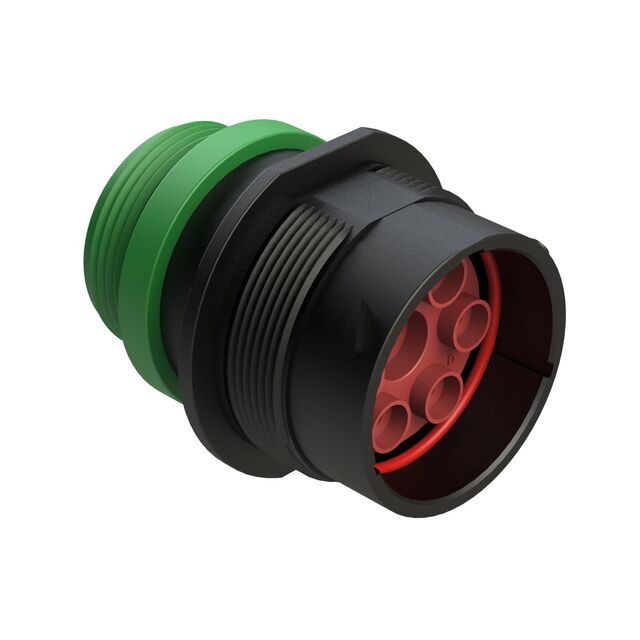

AHDP04-24-07PN-STA
ActiveAmphenol Sine Systems Corp
7 POSITION RECEPTACLE, PIN, SHEL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AHDP04-24-07PN-STA
ActiveAmphenol Sine Systems Corp
7 POSITION RECEPTACLE, PIN, SHEL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AHDP04-24-07PN-STA |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 8, 12 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Housing Color | Black |
| Ingress Protection | IP68, IP69K |
| Insert Material | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut |
| Note | Contacts Not Included |
| Number of Positions | 7 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Size - Insert | 24-7 |
| Shielding | Unshielded |
| Type | For Male Pins |
AHDP04 Series
...
| Part | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Housing Color | Contact Type | Primary Material | Contact Shape | Ingress Protection | Connector Type | Insert Material | Type | Mounting Feature | Note | Fastening Type | Shielding | Contact Size | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Number of Positions | Shell Size - Insert | Number of Positions | Contact Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Keyed | -55 °C | 125 °C | Black | Crimp | Plastic | Circular | IP68 IP69K | Receptacle Housing | Thermoplastic | For Female Sockets | Bulkhead - Front Side Nut | Contacts Not Included | Bayonet Lock | Unshielded | 12 | 24 | 16 | 16 | |||
Amphenol Sine Systems Corp | Keyed | -55 °C | 125 °C | Black | Crimp | Circular | IP67 IP69K | Receptacle Housing | Thermoplastic | For Male Pins | Bulkhead - Front Side Nut | Contacts Not Included Jam Nut Not Included | Bayonet Lock | Unshielded | 24-9 | 9 | 12 (6) 4 (1) 8 (2) | |||||
Amphenol Sine Systems Corp | Keyed | -55 °C | 125 °C | Black | Crimp | Plastic | Circular | IP67 IP69K | Receptacle Housing | For Female Sockets | Bulkhead - Front Side Nut | Contacts Not Included | Bayonet Lock | Unshielded | 4 12 16 | 24-14 | 14 | |||||
Amphenol Sine Systems Corp | Keyed | -55 °C | 125 °C | Black | Crimp | Plastic | Circular | IP68 IP69K | Receptacle Housing | Thermoplastic | For Male Pins | Bulkhead - Front Side Nut | Contacts Not Included | Bayonet Lock | Unshielded | 8 12 | 24-7 | 7 | ||||
Amphenol Sine Systems Corp | Keyed | -55 °C | 125 °C | Black | Crimp | Plastic | Circular | IP67 IP69K | Receptacle Housing | Thermoplastic | For Male Pins | Bulkhead - Front Side Nut | Contacts Not Included Jam Nut Not Included | Bayonet Lock | Unshielded | 24 | 91 | 9 | 12 (2) 16 (5) 8 (2) | |||
Amphenol Sine Systems Corp | Keyed | -55 °C | 125 °C | Black | Crimp | Circular | IP67 IP69K | Receptacle Housing | Thermoplastic | For Female Sockets | Bulkhead - Front Side Nut | Contacts Not Included Jam Nut Not Included | Bayonet Lock | Unshielded | 24 | 27 | 27 | |||||
Amphenol Sine Systems Corp | Keyed | -55 °C | 125 °C | Black | Crimp | Circular | IP67 IP69K | Receptacle Housing | Thermoplastic | For Female Sockets | Bulkhead - Front Side Nut | Contacts Not Included Jam Nut Not Included | Bayonet Lock | Unshielded | 20 | 18 | 21 | 21 | ||||
Amphenol Sine Systems Corp | Keyed | -55 °C | 125 °C | Black | Crimp | Circular | IP67 IP69K | Receptacle Housing | Thermoplastic | For Female Sockets | Bulkhead - Front Side Nut | Contacts Not Included Jam Nut Not Included | Bayonet Lock | Unshielded | 12 | 24 | 16 | 16 | ||||
Amphenol Sine Systems Corp | Keyed | -55 °C | 125 °C | Black | Crimp | Circular | IP67 IP69K | Receptacle Housing | Thermoplastic | For Male Pins | Bulkhead - Front Side Nut | Contacts Not Included Jam Nut Not Included | Bayonet Lock | Unshielded | 18 | 20 | 20 | 16 (2) 20 (18) | ||||
Amphenol Sine Systems Corp | Keyed | -55 °C | 125 °C | Black | Crimp | Circular | IP67 IP69K | Receptacle Housing | Thermoplastic | For Female Sockets | Bulkhead - Front Side Nut | Contacts Not Included Jam Nut Not Included | Bayonet Lock | Unshielded | 4 4 | 18-6 | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 50 | $ 13.10 | |
Description
General part information
AHDP04 Series
7 Position Circular Connector Receptacle Housing Panel Mount
