GP2500S20-0.040-02-0816

Active

Bergquist

THERM PAD 406.4X203.2MM YLW

Search across all available documentation for this part.

Active

Bergquist

THERM PAD 406.4X203.2MM YLW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

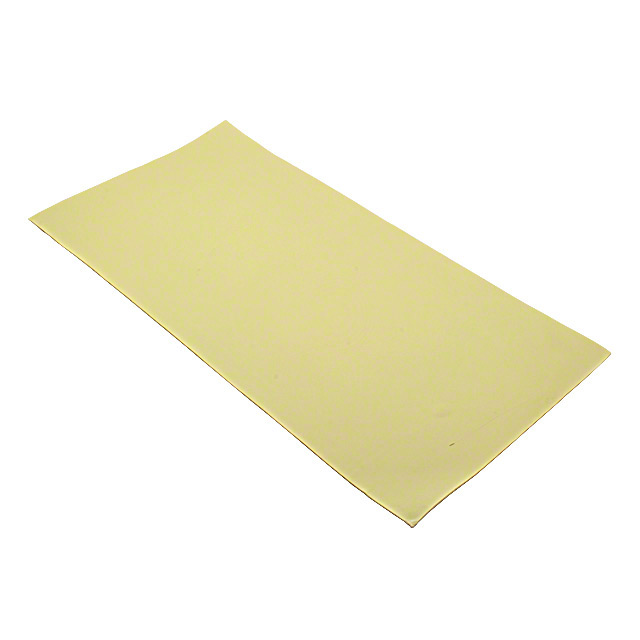

Thermal Pad Yellow 406.40mm x 203.20mm Rectangular Tacky - Both Sides

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	GP2500S20-0.040-02-0816	GP2500S20 Series

Adhesive	Tacky - Both Sides	Tacky - Both Sides
Backing, Carrier	Fiberglass	Fiberglass
Color	Yellow	Yellow
Outline [x]	406.4 mm	406.4 mm
Outline [y]	203.2 mm	203.2 mm
Shape	Rectangular	Rectangular
Shelf Life	12 Months	12 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature [Max]	95 °F	95 °F
Storage/Refrigeration Temperature [Max]	35 °C	35 °C
Thermal Conductivity	2.4 W/m-K	2.4 W/m-K
Thickness	1.016 mm	0.381 - 80 mm
Thickness	0.04 in	0.015 - 0.25 in

THERM PAD 406.4X203.2MM YLW

Part	Color	Shelf Life Start	Backing, Carrier	Outline [x]	Outline [y]	Shelf Life	Shape	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Max]	Adhesive	Thermal Conductivity	Thickness	Thickness
Bergquist GP2500S20-0.125-02-0816	Yellow	Date of Manufacture	Fiberglass	406.4 mm	203.2 mm	12 Months	Rectangular	95 °F	35 °C	Tacky - Both Sides	2.4 W/m-K	0.125 in	3.18 mm
Bergquist GP2500S20-0.040-02-0816	Yellow	Date of Manufacture	Fiberglass	406.4 mm	203.2 mm	12 Months	Rectangular	95 °F	35 °C	Tacky - Both Sides	2.4 W/m-K	0.04 in	1.016 mm
Bergquist GP2500S20-0.015-02-0816	Yellow	Date of Manufacture	Fiberglass	406.4 mm	203.2 mm	12 Months	Rectangular	95 °F	35 °C	Tacky - Both Sides	2.4 W/m-K	0.015 in	0.381 mm
Bergquist GP2500S20-0.250-02-0816	Yellow	Date of Manufacture	Fiberglass	406.4 mm	203.2 mm	12 Months	Rectangular	95 °F	35 °C	Tacky - Both Sides	2.4 W/m-K	0.25 in	6.35 mm
Bergquist GP2500S20-0.100-02-0816	Yellow	Date of Manufacture	Fiberglass	406.4 mm	203.2 mm	12 Months	Rectangular	95 °F	35 °C	Tacky - Both Sides	2.4 W/m-K	0.1 in	2.54 mm
Bergquist GP2500S20-0.160-02-0816	Yellow	Date of Manufacture	Fiberglass	406.4 mm	203.2 mm	12 Months	Rectangular	95 °F	35 °C	Tacky - Both Sides	2.4 W/m-K	0.16 in	4.06 mm
Bergquist GP2500S20-0.080-02-0816	Yellow	Date of Manufacture	Fiberglass	406.4 mm	203.2 mm	12 Months	Rectangular	95 °F	35 °C	Tacky - Both Sides	2.4 W/m-K	0.08 "	80 mils
Bergquist GP2500S20-0.020-02-0816	Yellow	Date of Manufacture	Fiberglass	406.4 mm	203.2 mm	12 Months	Rectangular	95 °F	35 °C	Tacky - Both Sides	2.4 W/m-K	0.02 in	0.508 mm
