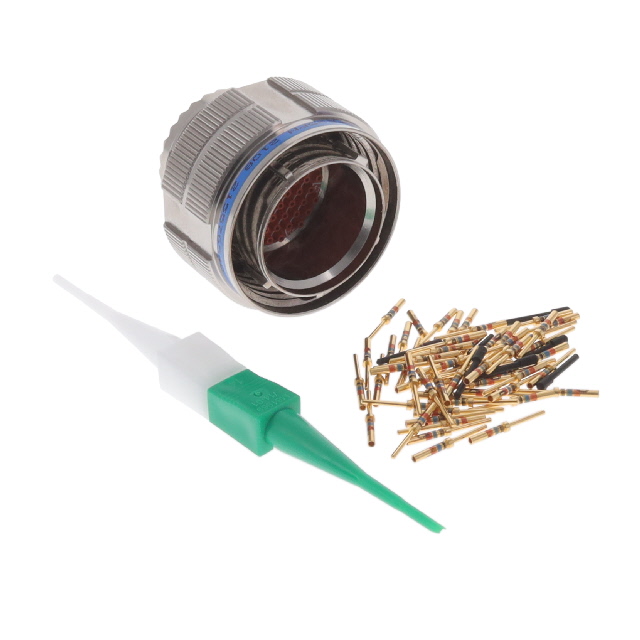

D38999/26FE35PN

Active

Amphenol Aerospace Operations

CONN PLUG MALE 55POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26FE35PN

Active

Amphenol Aerospace Operations

CONN PLUG MALE 55POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26FE35PN

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	55 positions
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Aluminum
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	17
Shell Size, MIL	E
Shielding	Shielded
Termination	Crimp

D38999/26FE Series

Part	Connector Type	Qualification	Shielding	Shell Finish	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Material	Shell Material	Shell Size, MIL	Primary Material	Number of Positions	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Orientation	Applications	Contact Finish - Mating	Features	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Grade	Mounting Type	Note	Contact Size	Contact Size	Housing Color	Contact Type	Contact Shape	Type	Shell Size - Insert	Contact Size	Backshell Material, Plating
Amphenol Aerospace Operations D38999/26FE26SA	Female Sockets Plug	MIL-DTL-38999 Series III	Shielded	Electroless Nickel	Silver	1.27 µm	50 µin	Crimp	Copper Alloy	Aluminum	E	Metal	26	17	26	A	Aerospace Aviation Marine Military	Gold	Coupling Nut	-65 ░C	200 °C	Environment Resistant	Military	Free Hanging (In-Line)
Amphenol Aerospace Operations D38999/26FE35PN	Male Pins Plug	MIL-DTL-38999 Series III	Shielded	Electroless Nickel	Silver	1.27 µm	50 µin	Crimp	Copper Alloy	Aluminum	E	Metal	55 positions	17	35	N	Aerospace Aviation Marine Military	Gold	Coupling Nut	-65 ░C	200 °C	Environment Resistant	Military	Free Hanging (In-Line)
Amphenol Aerospace Operations D38999/26FE35JA	Female Sockets Plug	MIL-DTL-38999 Series III	Shielded	Electroless Nickel	Silver	2.54 çm	100 çin	Crimp	Copper Alloy	Aluminum	E	Metal	55 positions	17	35	A	Aerospace Aviation Military	Gold	Coupling Nut	-65 ░C	200 °C	Environment Resistant	Military	Free Hanging (In-Line)
Amphenol Aerospace Operations D38999/26FE99BA	Plug Housing	MIL-DTL-38999 Series III	Shielded	Electroless Nickel						Aluminum	E		23	17	99	A			Coupling Nut Self Locking	-65 ░C	200 °C	Environment Resistant	Military	Free Hanging (In-Line)	Contacts Not Included	16 20	2 21	Silver	Crimp	Circular	For Female Sockets
Amphenol Aerospace Operations D38999/26FE6JN	Female Sockets Plug	MIL-DTL-38999 Series III	Shielded	Electroless Nickel	Silver	2.54 çm	100 çin	Crimp	Copper Alloy	Aluminum	E	Metal	6			N	Aerospace Aviation Military	Gold	Coupling Nut	-65 ░C	200 °C	Environment Resistant	Military	Free Hanging (In-Line)								17-6
Amphenol Aerospace Operations D38999/26FE99JN-LC	Plug Housing	MIL-DTL-38999 Series III	Shielded	Electroless Nickel						Aluminum	E		23	17	99	N			Coupling Nut Self Locking	-65 ░C	200 °C	Environment Resistant	Military	Free Hanging (In-Line)	Contacts Not Included	16 20	2 21	Silver	Crimp	Circular	For Female Sockets
Amphenol Aerospace Operations D38999/26FE35HA-LC	Plug Housing	MIL-DTL-38999 Series III	Shielded	Electroless Nickel						Aluminum	E		55 positions	17	35	A			Coupling Nut Self Locking	-65 ░C	200 °C	Environment Resistant	Military	Free Hanging (In-Line)	Contacts Not Included			Silver	Crimp	Circular	For Male Pins		22D
Amphenol Aerospace Operations D38999/26FE6PN-U	Male Pins Plug	MIL-DTL-38999 Series III	Unshielded	Electroless Nickel	Silver	1.27 µm	50 µin	Crimp	Copper Alloy	Aluminum	E	Metal	6			N	Aviation Marine Military	Gold	Backshell Coupling Nut Self Locking	-65 ░C	200 °C	Environment Resistant	Military	Free Hanging (In-Line)								17-6		Metal
Amphenol Aerospace Operations D38999/26FE6HD	Male Pins Plug	MIL-DTL-38999 Series III	Shielded	Electroless Nickel	Silver	2.54 çm	100 çin	Crimp	Copper Alloy	Aluminum	E	Metal	6			D	Aviation Marine Military	Gold	Coupling Nut Self Locking	-65 ░C	200 °C	Environment Resistant	Military	Free Hanging (In-Line)								17-6
Amphenol Aerospace Operations D38999/26FE8SB-UWSB4	Female Sockets Plug	MIL-DTL-38999 Series III	Shielded	Electroless Nickel	Silver	1.27 µm	50 µin	Crimp	Copper Alloy	Aluminum	E	Metal	8			B	Aviation Marine Military	Gold	Backshell Coupling Nut Self Locking Shielding Device Shrink Boot	-65 ░C	200 °C	Environment Resistant	Military	Free Hanging (In-Line)								17-8		Metal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 284.09
		1	$ 3094.15
		10	$ 222.93
		25	$ 203.64
		50	$ 190.66

Description

General part information

D38999/26FE Series

55 Position Circular Connector Plug, Male Pins Crimp
