845-140-500-807

Active

EDAC Inc.

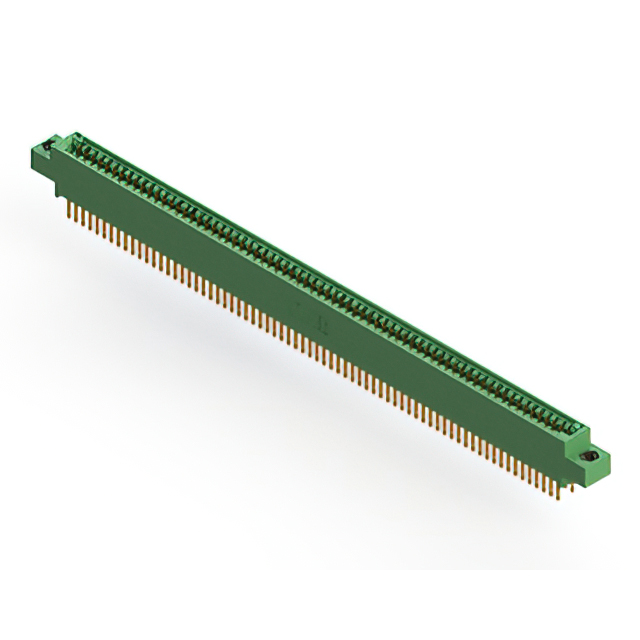

CARD EDGE CONNECTOR, 140 CONTACT(S), 2 ROW(S), FEMALE, 0.1 INCH PITCH, SOLDER TERMINAL, M3, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

845-140-500-807

Active

EDAC Inc.

CARD EDGE CONNECTOR, 140 CONTACT(S), 2 ROW(S), FEMALE, 0.1 INCH PITCH, SOLDER TERMINAL, M3, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	845-140-500-807

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	M3, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	140
Number of Positions/Bay/Row [custom]	70
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

845-140 Series

...

Part	Mounting Type	Termination	Contact Material	Contact Type	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination Rows	Gender	Number of Rows	Card Type	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Color	Number of Positions	Read Out	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions/Bay/Row [custom]	Pitch [x]	Pitch [x]	Features	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 845-140-558-508	Through Hole Right Angle	Solder	Copper Alloy	Cantilever	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Female	2	Non Specified - Dual Edge	10 Áin	0.25 Ám	4-40 Threaded Insert Top Mount Opening	Green	140	Dual	Gold	125 °C	-40 °C	70	2.54 mm	0.1 in
EDAC Inc. 845-140-556-207	Board Edge Straddle Mount	Solder	Copper Alloy	Cantilever	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Female	2	Non Specified - Dual Edge	10 Áin	0.25 Ám	Flush Mount M3 Threaded Insert Top Opening	Green	140	Dual	Gold	125 °C	-40 °C	70	2.54 mm	0.1 in	Card Extender
EDAC Inc. 845-140-544-503	Through Hole	Wire Wrap	Copper Alloy	Cantilever	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Female	2	Non Specified - Dual Edge	10 Áin	0.25 Ám	Floating Bobbin Top Mount Opening	Green	140	Dual	Gold	125 °C	-40 °C	70	2.54 mm	0.1 in		2.95 mm	0.116 in
EDAC Inc. 845-140-559-802	Through Hole Right Angle	Solder	Copper Alloy	Cantilever	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Female	2	Non Specified - Dual Edge	10 Áin	0.25 Ám		Green	140	Dual	Gold	125 °C	-40 °C	70	2.54 mm	0.1 in				3.25 mm	0.128 in
EDAC Inc. 845-140-500-807	Through Hole	Solder Eyelet(s)	Copper Alloy	Cantilever	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Female	2	Non Specified - Dual Edge	10 Áin	0.25 Ám	M3 Threaded Insert Top Mount Opening	Green	140	Dual	Gold	125 °C	-40 °C	70	2.54 mm	0.1 in
EDAC Inc. 845-140-520-803	Through Hole	Solder	Copper Alloy	Cantilever	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Female	2	Non Specified - Dual Edge	10 Áin	0.25 Ám	Floating Bobbin Top Mount Opening	Green	140	Dual	Gold	125 °C	-40 °C	70	2.54 mm	0.1 in		2.95 mm	0.116 in
EDAC Inc. 845-140-540-201	Through Hole	Wire Wrap	Copper Alloy	Cantilever	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Female	2	Non Specified - Dual Edge	10 Áin	0.25 Ám		Green	140	Dual	Gold	125 °C	-40 °C	70	2.54 mm	0.1 in
EDAC Inc. 845-140-523-807	Through Hole	Solder	Copper Alloy	Cantilever	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Female	2	Non Specified - Dual Edge	10 Áin	0.25 Ám	M3 Threaded Insert Top Mount Opening	Green	140	Dual	Gold	125 °C	-40 °C	70	2.54 mm	0.1 in
EDAC Inc. 845-140-558-204	Through Hole Right Angle	Solder	Copper Alloy	Cantilever	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Female	2	Non Specified - Dual Edge	10 Áin	0.25 Ám	Flush Mount Top Opening Unthreaded	Green	140	Dual	Gold	125 °C	-40 °C	70	2.54 mm	0.1 in		3.96 mm	0.156 in
EDAC Inc. 845-140-541-208	Through Hole	Wire Wrap	Copper Alloy	Cantilever	Diallyl Phthalate (DAP)	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Female	2	Non Specified - Dual Edge	10 Áin	0.25 Ám	4-40 Flush Mount Threaded Insert Top Opening	Green	140	Dual	Gold	125 °C	-40 °C	70	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 259.92

Description

General part information

845-140 Series

140 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
