R523W422050P0K

Active

KEMET

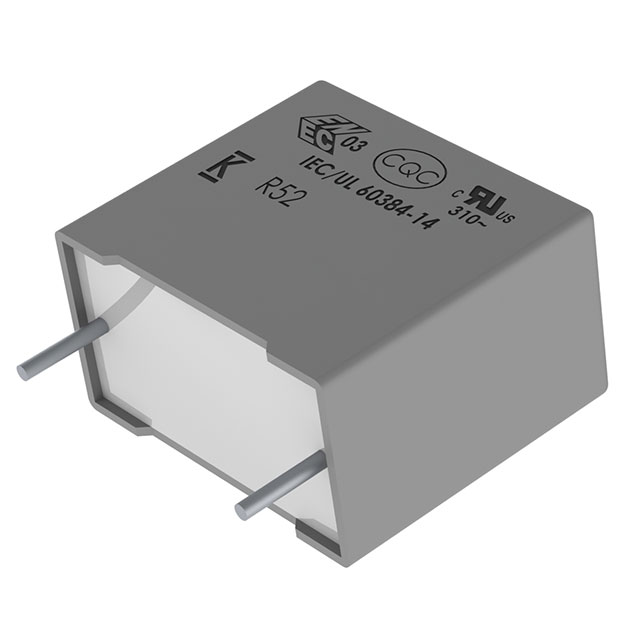

CAP FILM 2.2UF 10% 630VDC RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP FILM 2.2UF 10% 630VDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	R523W422050P0K

Applications	Automotive
Capacitance	2.2 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	0.87 in
Height - Seated (Max) [Max] [z]	22.1 mm
Lead Spacing	37.5 mm
Lead Spacing	1.476 in
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X2, AEC-Q200
Size / Dimension [x]	1.634 "
Size / Dimension [x]	41.5 mm
Size / Dimension [y]	0.433 in
Size / Dimension [y]	11 mm
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	310 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Tolerance	Dielectric Material	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	Package / Case	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Voltage Rating - AC	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET R523W422050P0K	-40 °C	110 °C	PC Pins	10 %	Metallized Polypropylene (PP)	2.2 µF	0.87 in	22.1 mm	37.5 mm	1.476 in	Radial	Automotive	1.634 "	0.433 in	11 mm	41.5 mm	Through Hole	310 V	AEC-Q200 X2
KEMET R523W447050P0K	-40 °C	110 °C	PC Pins	10 %	Metallized Polypropylene (PP)	4.7 µF	1.126 in	28.6 mm	37.5 mm	1.476 in	Radial	Automotive	1.634 "	0.63 in	16 mm	41.5 mm	Through Hole	310 V	AEC-Q200 X2
KEMET R523W522050P0K	-40 °C	110 °C	PC Pins	10 %	Metallized Polypropylene (PP)	22 µF	1.776 in	45.1 mm	37.5 mm	1.476 in	Radial	Automotive	1.634 "	1.181 in	30 mm	41.5 mm	Through Hole	310 V	AEC-Q200 X2
KEMET R523W433050P0K	-40 °C	110 °C	PC Pins	10 %	Metallized Polypropylene (PP)	3.3 µF			37.5 mm	1.476 in	Radial	Automotive	1.634 "	0.512 in	13 mm	41.5 mm	Through Hole	310 V	AEC-Q200 X2	24.1 mm	0.949 in
KEMET R523W468050P0K	-40 °C	110 °C	PC Pins	10 %	Metallized Polypropylene (PP)	6.8 ÁF	1.264 "	32.1 mm	37.5 mm	1.476 in	Radial	Automotive	1.634 "	0.748 in	19 mm	41.5 mm	Through Hole	310 V	AEC-Q200 X2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.2 µF Film Capacitor 310V 630V Polypropylene (PP), Metallized Radial
