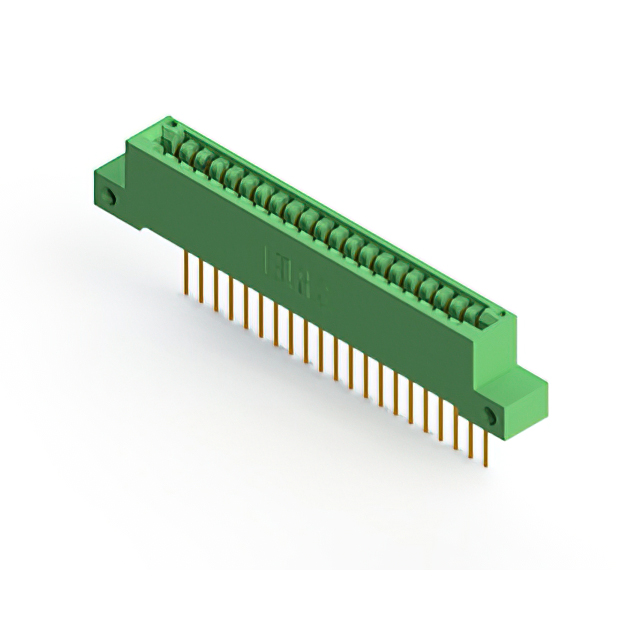

846-021-541-112

Active

EDAC Inc.

CONN EDGE SGL FMALE 21POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

846-021-541-112

Active

EDAC Inc.

CONN EDGE SGL FMALE 21POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	846-021-541-112

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Unthreaded, Flush Mount, Side Opening
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	21
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

846-021 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Flange Feature	Flange Feature	Contact Material	Color	Termination Rows	Number of Rows	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Card Type	Termination	Material - Insulation	Contact Finish	Gender	Read Out	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]
EDAC Inc. 846-021-540-602	125 °C	-40 °C	Through Hole	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	0.128 in	Copper Alloy	Green	1	1	21	10 Áin	0.25 Ám	Non Specified - Single Edge	Wire Wrap	Diallyl Phthalate (DAP)	Gold	Female	Single	0.125 in	3.18 mm
EDAC Inc. 846-021-522-112	125 °C	-40 °C	Through Hole	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in			Copper Alloy	Green	1	1	21	10 Áin	0.25 Ám	Non Specified - Single Edge	Solder	Diallyl Phthalate (DAP)	Gold	Female	Single	0.125 in	3.18 mm	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "
EDAC Inc. 846-021-541-112	125 °C	-40 °C	Through Hole	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in			Copper Alloy	Green	1	1	21	10 Áin	0.25 Ám	Non Specified - Single Edge	Wire Wrap	Diallyl Phthalate (DAP)	Gold	Female	Single	0.125 in	3.18 mm	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "
EDAC Inc. 846-021-540-104	125 °C	-40 °C	Through Hole	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in			Copper Alloy	Green	1	1	21	10 Áin	0.25 Ám	Non Specified - Single Edge	Wire Wrap	Diallyl Phthalate (DAP)	Gold	Female	Single	0.125 in	3.18 mm	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in
EDAC Inc. 846-021-521-112	125 °C	-40 °C	Through Hole	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in			Copper Alloy	Green	1	1	21	10 Áin	0.25 Ám	Non Specified - Single Edge	Solder	Diallyl Phthalate (DAP)	Gold	Female	Single	0.125 in	3.18 mm	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "
EDAC Inc. 846-021-520-107	125 °C	-40 °C	Through Hole	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in			Copper Alloy	Green	1	1	21	10 Áin	0.25 Ám	Non Specified - Single Edge	Solder	Diallyl Phthalate (DAP)	Gold	Female	Single	0.125 in	3.18 mm		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 846-021-522-107	125 °C	-40 °C	Through Hole	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in			Copper Alloy	Green	1	1	21	10 Áin	0.25 Ám	Non Specified - Single Edge	Solder	Diallyl Phthalate (DAP)	Gold	Female	Single	0.125 in	3.18 mm		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 846-021-520-607	125 °C	-40 °C	Through Hole	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in			Copper Alloy	Green	1	1	21	10 Áin	0.25 Ám	Non Specified - Single Edge	Solder	Diallyl Phthalate (DAP)	Gold	Female	Single	0.125 in	3.18 mm		M3 Threaded Insert Top Mount Opening
EDAC Inc. 846-021-526-604	125 °C	-40 °C	Through Hole	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in			Copper Alloy	Green	1	1	21	10 Áin	0.25 Ám	Non Specified - Single Edge	Solder	Diallyl Phthalate (DAP)	Gold	Female	Single	0.125 in	3.18 mm	3.96 mm	Top Mount Opening Unthreaded	0.156 in
EDAC Inc. 846-021-540-608	125 °C	-40 °C	Through Hole	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in			Copper Alloy	Green	1	1	21	10 Áin	0.25 Ám	Non Specified - Single Edge	Wire Wrap	Diallyl Phthalate (DAP)	Gold	Female	Single	0.125 in	3.18 mm		4-40 Threaded Insert Top Mount Opening

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 50.68

Description

General part information

846-021 Series

21 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
