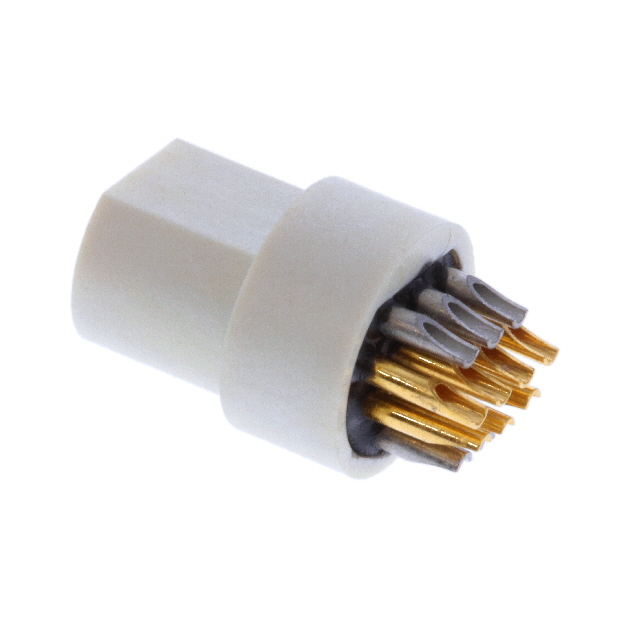

A22004-001

Active

Omnetics

CONN PLUG MALE 12POS SOLDER CUP

Search across all available documentation for this part.

Active

Omnetics

CONN PLUG MALE 12POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	A22004-001

Color	Natural
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Beryllium Copper
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insert Material	Liquid Crystal Polymer (LCP)
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Liquid Crystal Polymer (LCP)
Shielding	Unshielded

CONN PLUG MALE 12POS SOLDER CUP

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Orientation	Primary Material	Shielding	Shell Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Color	Connector Type	Contact Material	Current Rating (Amps)	Mounting Type	Fastening Type	Insert Material
Omnetics A22004-001	1.27 µm	50 µin	Gold	Keyed	Plastic	Unshielded	Liquid Crystal Polymer (LCP)	12	-55 °C	125 °C	Natural	Male Pins, Plug	Beryllium Copper	3 A	Free Hanging (In-Line)	Push-Pull	Liquid Crystal Polymer (LCP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Plug, Male Pins Solder Cup
