3603-0-07-21-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.040DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3603-0-07-21-00-00-08-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.282 in |
| Length - Above Flange [x] | 7.16 mm |
| Length - Below Flange [x] | 6.99 mm |
| Length - Below Flange [x] | 0.275 in |
| Length - Overall [x] | 0.588 in |
| Length - Overall [x] | 14.94 mm |
| Mounting Type | Free Hanging (In-Line) |
| Pin Size - Above Flange [diameter] | 1.02 mm |
| Pin Size - Above Flange [diameter] | 0.04 in |
| Terminal Style | Wire |
| Terminal Type | PC Pin |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.10 | |
| 10 | $ 0.93 | |||
| 25 | $ 0.90 | |||
| 50 | $ 0.88 | |||
| 100 | $ 0.84 | |||
| 250 | $ 0.76 | |||
| 500 | $ 0.69 | |||
| 1000 | $ 0.61 | |||
| 2500 | $ 0.55 | |||
Description
General part information
3603-0 Series

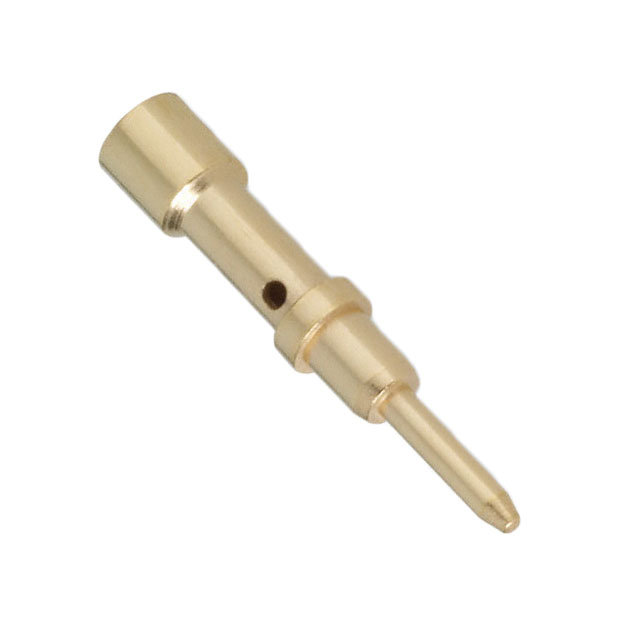

PC Pin Terminal Connector Free Hanging (In-Line) Gold 0.040" (1.02mm) Dia
