Q-1U03H0003003i

Active

Amphenol Custom Cable

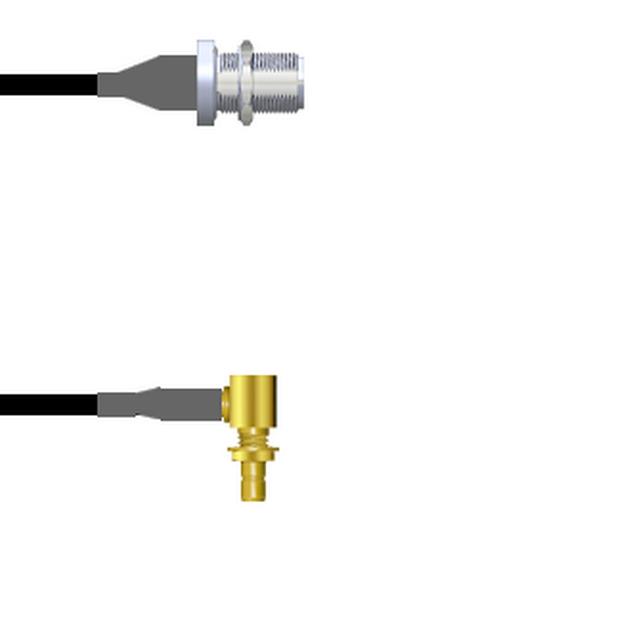

CBL ASSY SMB-NTYPE JACK-JACK 3"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1U03H0003003i

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE JACK-JACK 3"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1U03H0003003i

1st Connector	Right Angle, SMB Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	3 in
Length	76.2 mm
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-1U03H0 Series

Part	2nd Connector	1st Connector Mounting Type	Length	Length	Length	Frequency - Max [Max]	Cable Type	Features	1st Connector Mounting Feature	2nd Connector Mounting Type	2nd Contact Gender	Color	Style	1st Contact Gender	2nd Connector Mounting Feature	1st Connector	Overall Impedance	Length [x]	Length [x]
Amphenol Custom Cable Q-1U03H00052.5M	N-Type Jack	Panel Mount	8.2 '	98.4 in	2.5 m	4 GHz	RG-316	Shielded	Bulkhead - Front Side Nut	Panel Mount	Female	Copper	SMB to N-Type	Male	Bulkhead - Front Side Nut	Right Angle SMB Jack	50 Ohms
Amphenol Custom Cable Q-1U03H0003003i	N-Type Jack	Panel Mount		3 in	76.2 mm	4 GHz	RG-174	Shielded	Bulkhead - Front Side Nut	Panel Mount	Female	Black	SMB to N-Type	Male	Bulkhead - Front Side Nut	Right Angle SMB Jack	50 Ohms
Amphenol Custom Cable Q-1U03H0003009i	N-Type Jack	Panel Mount		9 "	228.6 mm	4 GHz	RG-174	Shielded	Bulkhead - Front Side Nut	Panel Mount	Female	Black	SMB to N-Type	Male	Bulkhead - Front Side Nut	Right Angle SMB Jack	50 Ohms
Amphenol Custom Cable Q-1U03H0003001M	N-Type Jack	Panel Mount	3.3 ft	39.4 in	1 m	4 GHz	RG-174	Shielded	Bulkhead - Front Side Nut	Panel Mount	Female	Black	SMB to N-Type	Male	Bulkhead - Front Side Nut	Right Angle SMB Jack	50 Ohms
Amphenol Custom Cable Q-1U03H0003108i	N-Type Jack	Panel Mount	9 ft	108 in	2.7 m	4 GHz	RG-174	Shielded	Bulkhead - Front Side Nut	Panel Mount	Female	Black	SMB to N-Type	Male	Bulkhead - Front Side Nut	Right Angle SMB Jack	50 Ohms
Amphenol Custom Cable Q-1U03H0005003i	N-Type Jack	Panel Mount		3 in	76.2 mm	4 GHz	RG-316	Shielded	Bulkhead - Front Side Nut	Panel Mount	Female	Copper	SMB to N-Type	Male	Bulkhead - Front Side Nut	Right Angle SMB Jack	50 Ohms
Amphenol Custom Cable Q-1U03H0005084i	N-Type Jack	Panel Mount	7 ft	84 in	2.1 m	4 GHz	RG-316	Shielded	Bulkhead - Front Side Nut	Panel Mount	Female	Copper	SMB to N-Type	Male	Bulkhead - Front Side Nut	Right Angle SMB Jack	50 Ohms
Amphenol Custom Cable Q-1U03H0003006i	N-Type Jack	Panel Mount		6 in	152.4 mm	4 GHz	RG-174	Shielded	Bulkhead - Front Side Nut	Panel Mount	Female	Black	SMB to N-Type	Male	Bulkhead - Front Side Nut	Right Angle SMB Jack	50 Ohms
Amphenol Custom Cable Q-1U03H0003048i	N-Type Jack	Panel Mount	4 ft	48 in	1200 mm	4 GHz	RG-174	Shielded	Bulkhead - Front Side Nut	Panel Mount	Female	Black	SMB to N-Type	Male	Bulkhead - Front Side Nut	Right Angle SMB Jack	50 Ohms
Amphenol Custom Cable Q-1U03H0003018i	N-Type Jack	Panel Mount				4 GHz	RG-174	Shielded	Bulkhead - Front Side Nut	Panel Mount	Female	Black	SMB to N-Type	Male	Bulkhead - Front Side Nut	Right Angle SMB Jack	50 Ohms	457.2 mm	457.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 141.62
		25	$ 138.91
		50	$ 136.21
		100	$ 133.51
		250	$ 130.81

Description

General part information

Q-1U03H0 Series

Cable Assembly Coaxial SMB to N-Type RG-174 3.000" (76.20mm)

Documents

Technical documentation and resources

No documents available
