AZ40019

Obsolete

Panasonic Industrial Automation Sales

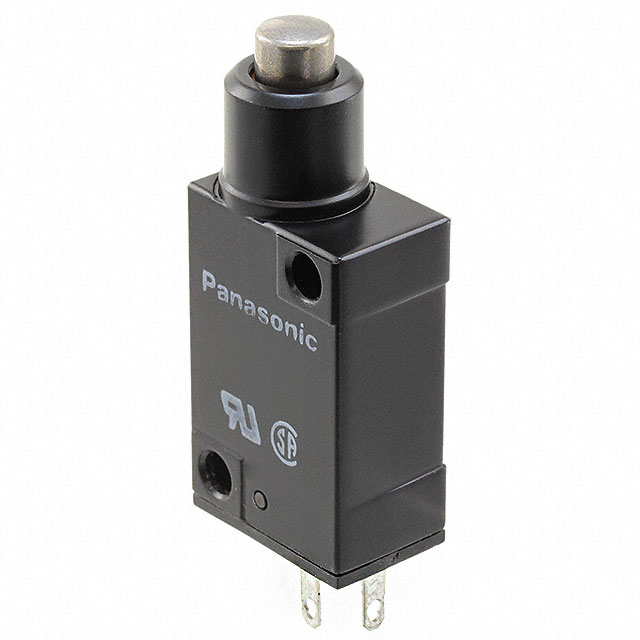

SWITCH SNAP ACTION SPDT 5A 125V

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

SWITCH SNAP ACTION SPDT 5A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	AZ40019

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	5 A
Differential Travel	0.15 mm
Differential Travel	0.006 in
Electrical Life	300000 Cycles
Ingress Protection	IP64 - Dust Tight, Water Resistant
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	700 gf
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Overtravel	4 mm
Overtravel	0.158 in
Pretravel	0.04 in
Pretravel	1 mm
Release Force	70 gf
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Electrical Life	Mechanical Life	Voltage Rating - AC	Overtravel	Overtravel	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Operating Force	Circuit	Termination Style	Termination Style	Termination Style	Differential Travel	Differential Travel	Actuator Type	Ingress Protection	Pretravel	Pretravel	Release Force	Current Rating (Amps)	Switch Function	Voltage Rating - DC
Panasonic Industrial Automation Sales AZ40019	300000 Cycles	10000000 Cycles	125 V	4 mm	0.158 in	-20 C	60 °C	Chassis Mount	700 gf	SPDT	0.11 in	Quick Connect Solder	2.8 mm	0.15 mm	0.006 in	Round (Pin Plunger)	IP64 - Dust Tight Water Resistant	0.04 in	1 mm	70 gf	5 A	On-Mom	30 V
