845-017-500-608
ActiveEDAC Inc.
CONN EDGE SINGLE FML 17POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-017-500-608
ActiveEDAC Inc.
CONN EDGE SINGLE FML 17POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-017-500-608 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
845-017 Series
...
| Part | Contact Finish | Material - Insulation | Card Type | Read Out | Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Contact Type | Pitch [x] | Pitch [x] | Gender | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Rows | Termination Rows | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Single | Solder | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | 2.54 mm | 0.1 in | Female | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | 1 | 1 | 125 °C | -40 °C | ||
EDAC Inc. | Gold | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Single | Wire Wrap | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | 2.54 mm | 0.1 in | Female | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 4-40 Threaded Insert Top Mount Opening | 1 | 1 | 125 °C | -40 °C | ||||
EDAC Inc. | Gold | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Single | Wire Wrap | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | 2.54 mm | 0.1 in | Female | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | 1 | 1 | 125 °C | -40 °C | ||
EDAC Inc. | Gold | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Single | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | 2.54 mm | 0.1 in | Female | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | M3 Threaded Insert Top Mount Opening | 1 | 1 | 125 °C | -40 °C | ||||
EDAC Inc. | Gold | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Single | Solder | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | 2.54 mm | 0.1 in | Female | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | M3 Threaded Insert Top Mount Opening | 1 | 1 | 125 °C | -40 °C | ||||
EDAC Inc. | Gold | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Single | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | 2.54 mm | 0.1 in | Female | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 4-40 Threaded Insert Top Mount Opening | 1 | 1 | 125 °C | -40 °C | ||||
EDAC Inc. | Gold | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Single | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | 2.54 mm | 0.1 in | Female | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Flush Mount M3 Threaded Insert Top Opening | 1 | 1 | 125 °C | -40 °C | ||||
EDAC Inc. | Gold | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Single | Wire Wrap | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | 2.54 mm | 0.1 in | Female | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Side Mount Opening Unthreaded | 1 | 1 | 125 °C | -40 °C | 3.25 mm | 0.128 in | ||
EDAC Inc. | Gold | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Single | Solder | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | 2.54 mm | 0.1 in | Female | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | M3 Threaded Insert Top Mount Opening | 1 | 1 | 125 °C | -40 °C | ||||
EDAC Inc. | Gold | Diallyl Phthalate (DAP) | Non Specified - Single Edge | Single | Wire Wrap | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | 2.54 mm | 0.1 in | Female | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 1 | 1 | 125 °C | -40 °C | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 90.92 | |
Description
General part information
845-017 Series

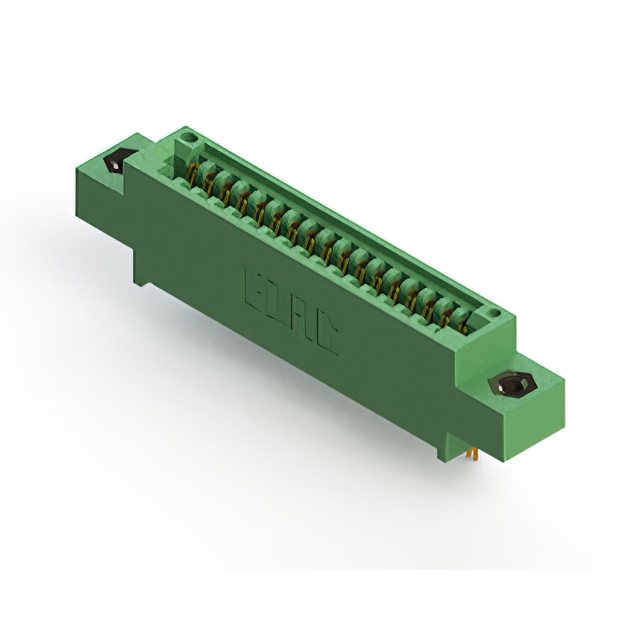

17 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
