AXN320038S

Obsolete

Panasonic Electric Works

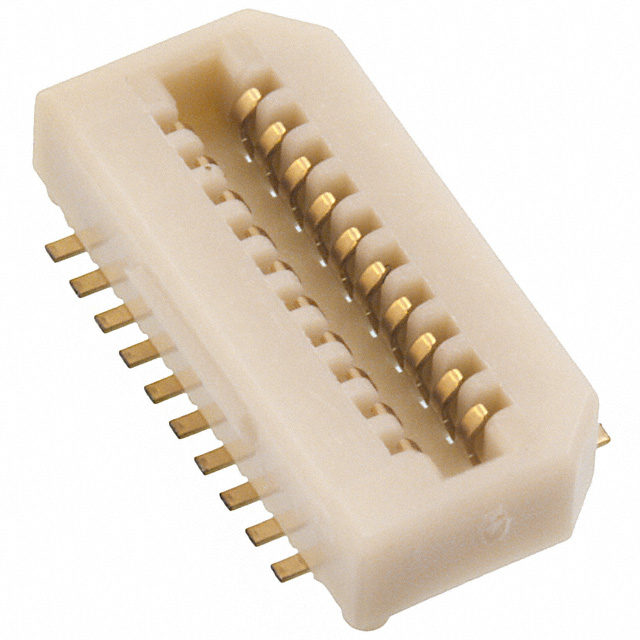

CONN SOCKET 20POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN SOCKET 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXN320038S

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Board Guide
Height Above Board	0.087 in
Height Above Board	2.2 mm
Mated Stacking Heights [z]	4 mm, 3 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Pitch [x]	Pitch [x]	Mated Stacking Heights [z]	Number of Positions	Contact Finish	Height Above Board	Height Above Board	Connector Type	Mounting Type	Features	Number of Rows	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]
Panasonic Electric Works AXN320038S	0.8 mm	0.031 in	3 mm 4 mm 5 mm	20	Gold	0.087 in	2.2 mm	Socket Center Strip Contacts	Surface Mount	Board Guide	2
Panasonic Electric Works AXN320C038P	0.8 mm	0.031 in	3 mm 4 mm 5 mm	20	Gold	0.087 in	2.2 mm	Socket Center Strip Contacts	Surface Mount	Board Guide	2
Panasonic Electric Works AXN320130S	0.8 mm	0.031 in		20	Gold			Socket Center Strip Contacts	Surface Mount	Board Guide	2	6 mm 7 mm 8 mm 13 mm 14 mm	0.106 in	2.7 mm
Panasonic Electric Works AXN320C130P	0.8 mm	0.031 in		20	Gold			Socket Center Strip Contacts	Surface Mount	Board Guide	2	6 mm 7 mm 8 mm 13 mm 14 mm	0.106 in	2.7 mm
