BG0703-B054-000-00
ObsoleteNMB TECHNOLOGIES

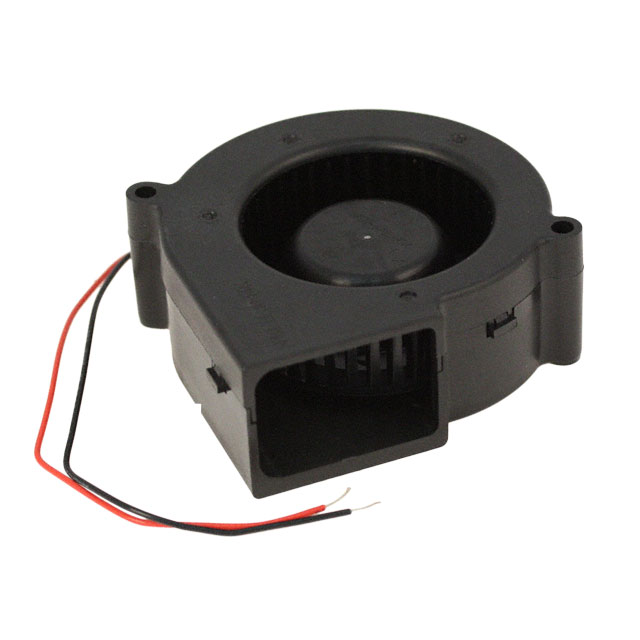

FAN BLOWER 75X30MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
BG0703-B054-000-00
ObsoleteNMB TECHNOLOGIES
FAN BLOWER 75X30MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BG0703-B054-000-00 |
|---|---|
| Air Flow | 0.297 m³/min |
| Air Flow | 10.6 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 150 mA |
| Fan Type | Blower |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 38.5 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 3.6 W |
| RPM | 3000 RPM |
| Size / Dimension | Square/Rounded |
| Size / Dimension [x] | 75 mm |
| Size / Dimension [z] | 75 mm |
| Static Pressure | 0.441 in H2O |
| Static Pressure | 110 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 26 VDC |
| Voltage Range [Min] | 10 VDC |
| Weight | 0.198 lb |
| Weight | 89.81 g |
| Width [y] | 30 mm |
BG0703 Series
| Part | Air Flow | Air Flow | Termination | Size / Dimension [z] | Size / Dimension | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Fan Type | Current Rating (Amps) | Bearing Type | Static Pressure | Static Pressure | Noise | Voltage - Rated | Width [y] | RPM | Material - Blade | Material - Frame | Approval Agency | Weight | Weight | Voltage Range [Min] | Voltage Range [Max] | Power (Watts) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NMB TECHNOLOGIES | 0.297 m³/min | 10.6 CFM | 2 Wire Leads | 75 mm | Square/Rounded | 75 mm | 70 °C | 70 °C | -10 °C | -10 °C | Blower | 150 mA | Ball | 0.441 in H2O | 110 Pa | 38.5 dB | 24 VDC | 30 mm | 3000 RPM | Plastic | Plastic | CE CSA UL VDE | 0.198 lb | 89.81 g | 10 VDC | 26 VDC | 3.6 W | |
NMB TECHNOLOGIES | 0.246 mł/min | 8.8 CFM | 3 Wire Leads | 75.7 mm | Square/Rounded | 75.7 mm | 70 °C | 70 °C | -10 °C | -10 °C | Blower | 0.09 A | Ball | 0.301 in H2O | 75 Pa | 34.5 dB(A) | 24 VDC | 30 mm | 2550 RPM | Plastic | Plastic | CE CSA UL VDE | 0.198 lb | 89.81 g | 10 VDC | 27.6 VDC | 2.16 W | Locked Rotor Sensor |
NMB TECHNOLOGIES | 0.246 mł/min | 8.8 CFM | 3 Wire Leads | 75.7 mm | Square/Rounded | 75.7 mm | 70 °C | 70 °C | -10 °C | -10 °C | Blower | 0.18 A | Ball | 0.301 in H2O | 75 Pa | 34.5 dB(A) | 12 VDC | 30 mm | 2550 RPM | Plastic | Plastic | CE CSA UL VDE | 0.198 lb | 89.81 g | 6 VDC | 13.8 VDC | 2.16 W | Speed Sensor (Tach) |
NMB TECHNOLOGIES | 0.188 mł/min | 6.7 CFM | 3 Wire Leads | 75.7 mm | Square/Rounded | 75.7 mm | 70 °C | 70 °C | -10 °C | -10 °C | Blower | 100 mA | Ball | 28 dB | 12 VDC | 30 mm | 2000 RPM | Plastic | Plastic | CE CSA UL VDE | 0.198 lb | 89.81 g | 6 VDC | 13.8 VDC | 1.2 W | Locked Rotor Sensor | ||
NMB TECHNOLOGIES | 0.207 mł/min | 7.4 CFM | 3 Wire Leads | 75.7 mm | Square/Rounded | 75.7 mm | 70 °C | 70 °C | -10 °C | -10 °C | Blower | 70 mA | Ball | 0.2 in H2O | 49.8 Pa | 29.5 dB(A) | 24 VDC | 30 mm | 2200 RPM | Plastic | Plastic | CE CSA UL VDE | 0.198 lb | 89.81 g | 10 VDC | 27.6 VDC | 1.68 W | Locked Rotor Sensor |
NMB TECHNOLOGIES | 0.297 m³/min | 10.6 CFM | 3 Wire Leads | 75.7 mm | Square/Rounded | 75.7 mm | 70 °C | 70 °C | -10 °C | -10 °C | Blower | 0.29 A | Ball | 0.441 in H2O | 110 Pa | 38.5 dB | 12 VDC | 30 mm | 3000 RPM | Plastic | Plastic | CE CSA UL VDE | 0.198 lb | 89.81 g | 6 VDC | 13 VDC | 3.48 W | Speed Sensor (Tach) |
NMB TECHNOLOGIES | 0.207 mł/min | 7.4 CFM | 3 Wire Leads | 75.7 mm | Square/Rounded | 75.7 mm | 70 °C | 70 °C | -10 °C | -10 °C | Blower | 120 mA | Ball | 0.2 in H2O | 49.8 Pa | 29.5 dB(A) | 12 VDC | 30 mm | 2200 RPM | Plastic | Plastic | CE CSA UL VDE | 0.198 lb | 89.81 g | 6 VDC | 13.8 VDC | 1.44 W | Speed Sensor (Tach) |
NMB TECHNOLOGIES | 0.188 mł/min | 6.7 CFM | 3 Wire Leads | 75.7 mm | Square/Rounded | 75.7 mm | 70 °C | 70 °C | -10 °C | -10 °C | Blower | 60 mA | Ball | 28 dB | 24 VDC | 30 mm | 2000 RPM | Plastic | Plastic | CE CSA UL VDE | 0.198 lb | 89.81 g | 10 VDC | 27.6 VDC | 1.44 W | Locked Rotor Sensor | ||
NMB TECHNOLOGIES | 0.246 mł/min | 8.8 CFM | 2 Wire Leads | 75.7 mm | Square/Rounded | 75.7 mm | 70 °C | 70 °C | -10 °C | -10 °C | Blower | 0.09 A | Ball | 0.3 in H2O | 74.7 Pa | 34.5 dB(A) | 24 VDC | 30 mm | 2550 RPM | Plastic | Plastic | CE CSA UL VDE | 0.198 lb | 89.81 g | 10 VDC | 27.6 VDC | 2.16 W | |
NMB TECHNOLOGIES | 0.188 mł/min | 6.7 CFM | 3 Wire Leads | 75.7 mm | Square/Rounded | 75.7 mm | 70 °C | 70 °C | -10 °C | -10 °C | Blower | 60 mA | Ball | 28 dB | 24 VDC | 30 mm | 2000 RPM | Plastic | Plastic | CE CSA UL VDE | 0.198 lb | 89.81 g | 10 VDC | 27.6 VDC | 1.44 W | Speed Sensor (Tach) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.78 | |
| 10 | $ 13.18 | |||
| 25 | $ 12.59 | |||
| 80 | $ 11.88 | |||
| 160 | $ 11.47 | |||
| 320 | $ 11.08 | |||
| 560 | $ 10.78 | |||
Description
General part information
BG0703 Series
Fan Blower 24VDC Square/Rounded - 75mm L x 75mm H Ball 10.6 CFM (0.297m³/min) 2 Wire Leads
