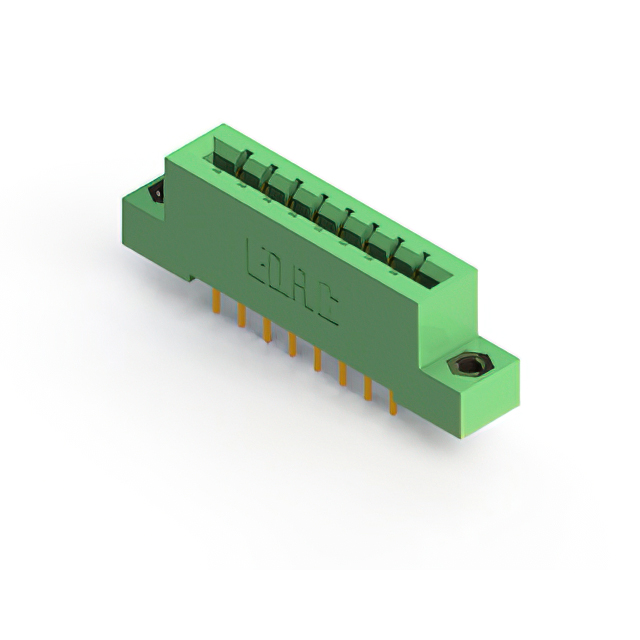

833-016-540-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 16POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
833-016-540-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 16POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 833-016-540-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
833-016 Series
...
| Part | Features | Contact Finish | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Gender | Pitch [x] | Pitch [x] | Number of Positions | Contact Material | Contact Type | Color | Termination Rows | Number of Rows | Card Type | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Read Out | Mounting Type | Material - Insulation | Number of Positions/Bay/Row [custom] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Card Extender | Gold | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Female | 0.156 in | 3.96 mm | 16 | Copper Alloy | Cantilever | Green | 2 | 2 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 125 °C | -40 °C | 8 | 8 | 8 | Dual | Board Edge Straddle Mount | Diallyl Phthalate (DAP) | |||
EDAC Inc. | Gold | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Female | 0.156 in | 3.96 mm | 16 | Copper Alloy | Cantilever | Green | 1 | 1 | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 125 °C | -40 °C | Single | Through Hole | Diallyl Phthalate (DAP) | 16 | ||||||
EDAC Inc. | Gold | Female | 0.156 in | 3.96 mm | 16 | Copper Alloy | Cantilever | Green | 1 | 1 | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 125 °C | -40 °C | Single | Through Hole | Diallyl Phthalate (DAP) | 16 | 3.25 mm | 0.128 in | |||||||
EDAC Inc. | Gold | Flush Mount M3 Threaded Insert Top Opening | Female | 0.156 in | 3.96 mm | 16 | Copper Alloy | Cantilever | Green | 2 | 2 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 125 °C | -40 °C | 8 | 8 | 8 | Dual | Through Hole | Diallyl Phthalate (DAP) | ||||||
EDAC Inc. | Gold | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Female | 0.156 in | 3.96 mm | 16 | Copper Alloy | Cantilever | Green | 2 | 2 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | 125 °C | -40 °C | 8 | 8 | 8 | Dual | Through Hole | Diallyl Phthalate (DAP) | ||||
EDAC Inc. | Gold | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Female | 0.156 in | 3.96 mm | 16 | Copper Alloy | Cantilever | Green | 1 | 1 | Non Specified - Single Edge | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 125 °C | -40 °C | Single | Through Hole | Diallyl Phthalate (DAP) | 16 | ||||||
EDAC Inc. | Gold | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Female | 0.156 in | 3.96 mm | 16 | Copper Alloy | Cantilever | Green | 2 | 2 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 125 °C | -40 °C | 8 | 8 | 8 | Dual | Through Hole | Diallyl Phthalate (DAP) | ||||
EDAC Inc. | Card Extender | Gold | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | Female | 0.156 in | 3.96 mm | 16 | Copper Alloy | Cantilever | Green | 2 | 2 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 125 °C | -40 °C | 8 | 8 | 8 | Dual | Board Edge Straddle Mount | Diallyl Phthalate (DAP) | |||
EDAC Inc. | Gold | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Female | 0.156 in | 3.96 mm | 16 | Copper Alloy | Cantilever | Green | 2 | 2 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 125 °C | -40 °C | 8 | 8 | 8 | Dual | Through Hole | Diallyl Phthalate (DAP) | ||||
EDAC Inc. | Gold | Female | 0.156 in | 3.96 mm | 16 | Copper Alloy | Cantilever | Green | 2 | 2 | Non Specified - Dual Edge | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 125 °C | -40 °C | 8 | 8 | 8 | Dual | Through Hole | Diallyl Phthalate (DAP) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 44.18 | |
Description
General part information
833-016 Series
16 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
