Q-2U03J0001002M

Active

Amphenol Custom Cable

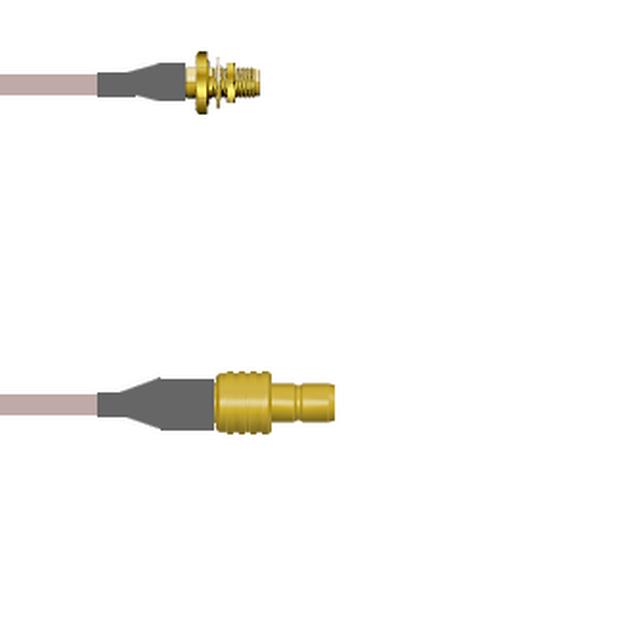

CBL ASSY SMA-SMB JACK-JACK 6.6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2U03J0001002M

Active

Amphenol Custom Cable

CBL ASSY SMA-SMB JACK-JACK 6.6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2U03J0001002M

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMB Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-178
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	6.6 ft
Length	78.7 in
Length	2 m
Overall Impedance	50 Ohms
Style	SMA to SMB

Q-2U03J0 Series

Part	1st Connector	2nd Contact Gender	1st Connector Mounting Type	Color	Frequency - Max [Max]	Cable Type	Overall Impedance	Style	1st Contact Gender	Cable Impedance	Features	1st Connector Mounting Feature	2nd Connector Mounting Type	Length	Length	2nd Connector	Connector Impedance	Length
Amphenol Custom Cable Q-2U03J0001006I	SMA Jack	Male	Panel Mount	Copper	3 GHz	RG-178	50 Ohms	SMA to SMB	Female	50 Ohms	Shielded	Bulkhead - Front Side Nut	Free Hanging (In-Line)	152.4 mm	6 in	SMB Jack	50 Ohms
Amphenol Custom Cable Q-2U03J0001002M	SMA Jack	Male	Panel Mount	Copper	3 GHz	RG-178	50 Ohms	SMA to SMB	Female	50 Ohms	Shielded	Bulkhead - Front Side Nut	Free Hanging (In-Line)	2 m	78.7 in	SMB Jack	50 Ohms	6.6 ft
Amphenol Custom Cable Q-2U03J00010.5M	SMA Jack	Male	Panel Mount	Copper	3 GHz	RG-178	50 Ohms	SMA to SMB	Female	50 Ohms	Shielded	Bulkhead - Front Side Nut	Free Hanging (In-Line)	50 cm	19.69 "	SMB Jack	50 Ohms
Amphenol Custom Cable Q-2U03J0001108I	SMA Jack	Male	Panel Mount	Copper	3 GHz	RG-178	50 Ohms	SMA to SMB	Female	50 Ohms	Shielded	Bulkhead - Front Side Nut	Free Hanging (In-Line)	2.7 m	108 in	SMB Jack	50 Ohms	9 ft
Amphenol Custom Cable Q-2U03J0001009I	SMA Jack	Male	Panel Mount	Copper	3 GHz	RG-178	50 Ohms	SMA to SMB	Female	50 Ohms	Shielded	Bulkhead - Front Side Nut	Free Hanging (In-Line)	228.6 mm	9 "	SMB Jack	50 Ohms
Amphenol Custom Cable Q-2U03J0001084I	SMA Jack	Male	Panel Mount	Copper	3 GHz	RG-178	50 Ohms	SMA to SMB	Female	50 Ohms	Shielded	Bulkhead - Front Side Nut	Free Hanging (In-Line)	2.1 m	84 in	SMB Jack	50 Ohms	7 ft
Amphenol Custom Cable Q-2U03J0001036I	SMA Jack	Male	Panel Mount	Copper	3 GHz	RG-178	50 Ohms	SMA to SMB	Female	50 Ohms	Shielded	Bulkhead - Front Side Nut	Free Hanging (In-Line)	91.44 cm	36 in	SMB Jack	50 Ohms
Amphenol Custom Cable Q-2U03J0001072I	SMA Jack	Male	Panel Mount	Copper	3 GHz	RG-178	50 Ohms	SMA to SMB	Female	50 Ohms	Shielded	Bulkhead - Front Side Nut	Free Hanging (In-Line)	1.8 m	72 in	SMB Jack	50 Ohms	6 ft
Amphenol Custom Cable Q-2U03J0001024I	SMA Jack	Male	Panel Mount	Copper	3 GHz	RG-178	50 Ohms	SMA to SMB	Female	50 Ohms	Shielded	Bulkhead - Front Side Nut	Free Hanging (In-Line)	609.6 mm	24 "	SMB Jack	50 Ohms
Amphenol Custom Cable Q-2U03J00011.5M	SMA Jack	Male	Panel Mount	Copper	3 GHz	RG-178	50 Ohms	SMA to SMB	Female	50 Ohms	Shielded	Bulkhead - Front Side Nut	Free Hanging (In-Line)	1.5 m	59.1 in	SMB Jack	50 Ohms	4.9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 125.56
		25	$ 116.95
		50	$ 108.34
		100	$ 100.97
		250	$ 94.82

Description

General part information

Q-2U03J0 Series

Cable Assembly Coaxial SMA to SMB RG-178 78.7" (2.0m) 6.6'

Documents

Technical documentation and resources

No documents available
