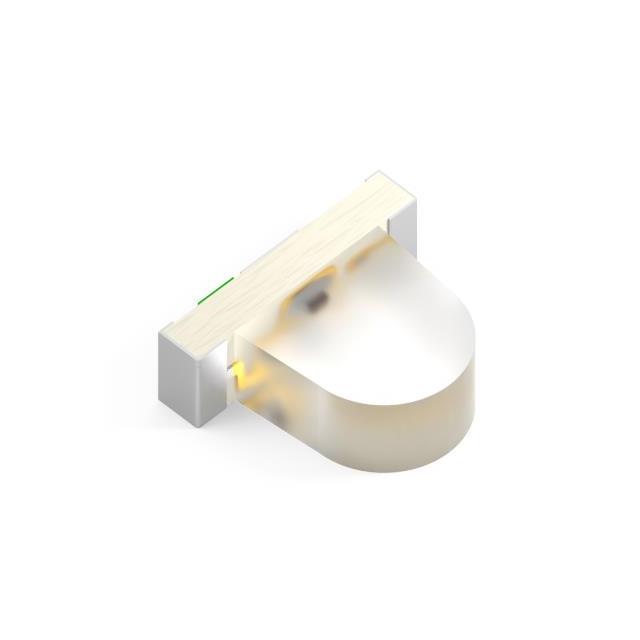

XZFBB56W-1
ActiveSunLED
LED BLUE CLEAR 2SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZFBB56W-1
ActiveSunLED
LED BLUE CLEAR 2SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZFBB56W-1 |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 1 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 447 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 2.5 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 30 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
| Wavelength - Dominant | 470 nm |
| Wavelength - Peak | 465 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.62 | |
| 10 | $ 0.40 | |||
| 100 | $ 0.27 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.21 | |||
| Digi-Reel® | 1 | $ 0.62 | ||
| 10 | $ 0.40 | |||
| 100 | $ 0.27 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.21 | |||
| Tape & Reel (TR) | 2000 | $ 0.19 | ||
| 4000 | $ 0.18 | |||
| 6000 | $ 0.17 | |||
| 10000 | $ 0.17 | |||
| 14000 | $ 0.16 | |||
| 20000 | $ 0.16 | |||
| 50000 | $ 0.16 | |||
Description
General part information
XZFBB56 Series
Blue 470nm LED Indication - Discrete 3.3V 2-SMD, No Lead
