FN286B-2-06

Active

TE Connectivity AMP Connectors

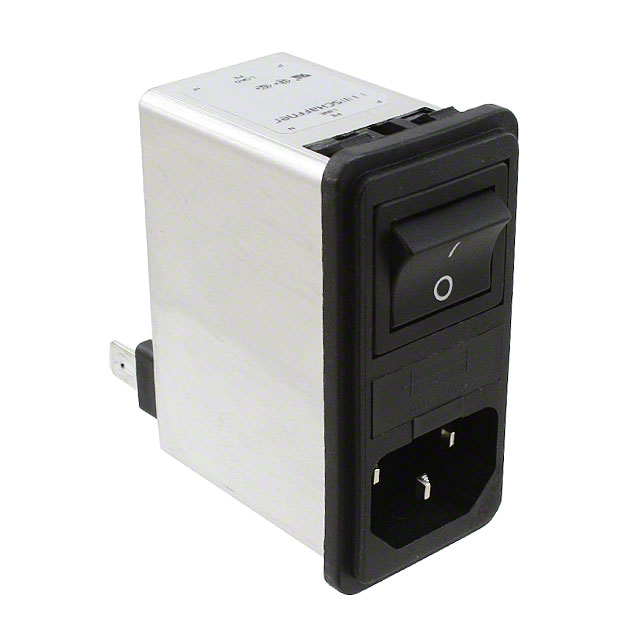

PWR ENT MOD RCPT IEC320-C14 PNL

FN286B-2-06

Active

TE Connectivity AMP Connectors

PWR ENT MOD RCPT IEC320-C14 PNL

Description Specifications Series Pricing CAD Documents

Description

General part information

Schaffner FN280 Series

2 A, Unfiltered, 2 µA Leakage Current @ 250VAC, 50Hz, FASTON, PD2 Pollution Degree, IP40, UL 94V-2, Schaffner FN280, Inlet Filters

Technical Specifications

Parameters and characteristics for this part

Specification	FN286B-2-06

Accomodates a Fuse	Yes (Fuse Not Included)
Approval Agency	ENEC, UL, CQC, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades - Module, Receptacle
Current Rating - Filter	2 A
Features	Bleed Resistor
Filter Application	Medical, Commercial
Filter Subtype	EMI, RFI
Filter Type	Filtered
Fuse Holder, Drawer	Twin Fused, Fuse Holder
Ingress Protection	IP40
Material Flammability Rating	UL94 V-2
Mounting Type	Panel Mount, Snap-In
Number of Positions	3
Panel Cutout Length	29 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	61.5 mm
Panel Thickness (Max)	0.118 in
Panel Thickness (Min)	0.031 in
Switch Features	Switch On-Off
Termination	Quick Connect
Termination Probe Tip OD	0.25 in

Schaffner FN280 Series

...

Part	Panel Cutout Width	Panel Cutout Shape	Panel Cutout Length	Approval Agency	Filter Subtype	Filter Application	Filter Type	Connector Type	Fuse Holder, Drawer	Termination Probe Tip OD	Termination	Ingress Protection	Accomodates a Fuse	Mounting Type	Number of Positions	Connector Style	Features	Switch Features	Material Flammability Rating	Current Rating - Filter	Panel Thickness (Min)	Panel Thickness (Max)
TE Connectivity AMP Connectors FN282B-6-06	60 mm	Rectangular	29 mm	CQC CSA ENEC UL	EMI RFI	Commercial Medical	Filtered	Male Blades - Module Receptacle	Fuse Holder Twin Fused	0.25 in	Quick Connect	IP40	Yes (Fuse Not Included)	Flange Panel Mount	3	IEC 320-C14	Bleed Resistor Front or Rear Side Mount	Switch On-Off	UL94 V-2	6 A
TE Connectivity AMP Connectors FN285-1-06	61.5 mm	Rectangular	29 mm	CQC CSA ENEC UL	EMI RFI	Commercial	Filtered	Male Blades - Module Receptacle	Fuse Holder	0.25 in	Quick Connect	IP40	Yes (Fuse Not Included)	Panel Mount Snap-In	3	IEC 320-C14		Switch On-Off	UL94 V-2	1 A	0.031 in	0.118 in
TE Connectivity AMP Connectors FN286E-4-06	61.5 mm	Rectangular	29 mm	CQC CSA ENEC UL	EMI RFI	Commercial	Filtered	Male Blades - Module Receptacle	Fuse Holder Twin Fused	0.25 in	Quick Connect	IP40	Yes (Fuse Not Included)	Panel Mount Snap-In	3	IEC 320-C14	Earth Line Choke	Switch On-Off	UL94 V-2	4 A	0.031 in	0.118 in
TE Connectivity AMP Connectors FN286-4-06	61.5 mm	Rectangular	29 mm	CQC CSA ENEC UL	EMI RFI	Commercial	Filtered	Male Blades - Module Receptacle	Fuse Holder Twin Fused	0.25 in	Quick Connect	IP40	Yes (Fuse Not Included)	Panel Mount Snap-In	3	IEC 320-C14		Switch On-Off	UL94 V-2	4 A	0.031 in	0.118 in
TE Connectivity AMP Connectors FN285-4-06	61.5 mm	Rectangular	29 mm	CQC CSA ENEC UL	EMI RFI	Commercial	Filtered	Male Blades - Module Receptacle	Fuse Holder	0.25 in	Quick Connect	IP40	Yes (Fuse Not Included)	Panel Mount Snap-In	3	IEC 320-C14		Switch On-Off	UL94 V-2	4 A	0.031 in	0.118 in
TE Connectivity AMP Connectors FN286-10-06	61.5 mm	Rectangular	29 mm	CQC CSA ENEC UL	EMI RFI	Commercial	Filtered	Male Blades - Module Receptacle	Fuse Holder Twin Fused	0.25 in	Quick Connect	IP40	Yes (Fuse Not Included)	Panel Mount Snap-In	3	IEC 320-C14		Switch On-Off	UL94 V-2	10 A	0.031 in	0.118 in
TE Connectivity AMP Connectors FN286B-2-06	61.5 mm	Rectangular	29 mm	CQC CSA ENEC UL	EMI RFI	Commercial Medical	Filtered	Male Blades - Module Receptacle	Fuse Holder Twin Fused	0.25 in	Quick Connect	IP40	Yes (Fuse Not Included)	Panel Mount Snap-In	3	IEC 320-C14	Bleed Resistor	Switch On-Off	UL94 V-2	2 A	0.031 in	0.118 in
TE Connectivity AMP Connectors FN286-4-06	61.5 mm	Rectangular	29 mm	CQC CSA ENEC UL	EMI RFI	Commercial	Filtered	Male Blades - Module Receptacle	Fuse Holder Twin Fused	0.25 in	Quick Connect	IP40	Yes (Fuse Not Included)	Panel Mount Snap-In	3	IEC 320-C14		Switch On-Off	UL94 V-2	4 A	0.031 in	0.118 in
TE Connectivity AMP Connectors FN284E-6-06	60 mm	Rectangular	29 mm	CQC CSA ENEC UL	EMI RFI	Commercial	Filtered	Male Blades - Module Receptacle	Fuse Holder Twin Fused	0.25 in	Quick Connect	IP40	Yes (Fuse Not Included)	Flange Panel Mount	3	IEC 320-C14	Earth Line Choke Front or Rear Side Mount	Switch On-Off	UL94 V-2	6 A
TE Connectivity AMP Connectors FN283-2-06	60 mm	Rectangular	29 mm	CQC CSA ENEC UL	EMI RFI	Commercial	Filtered	Male Blades - Module Receptacle	Fuse Holder	0.25 in	Quick Connect	IP40	Yes (Fuse Not Included)	Flange Panel Mount	3	IEC 320-C14	Front or Rear Side Mount	Switch On-Off	UL94 V-2	2 A
