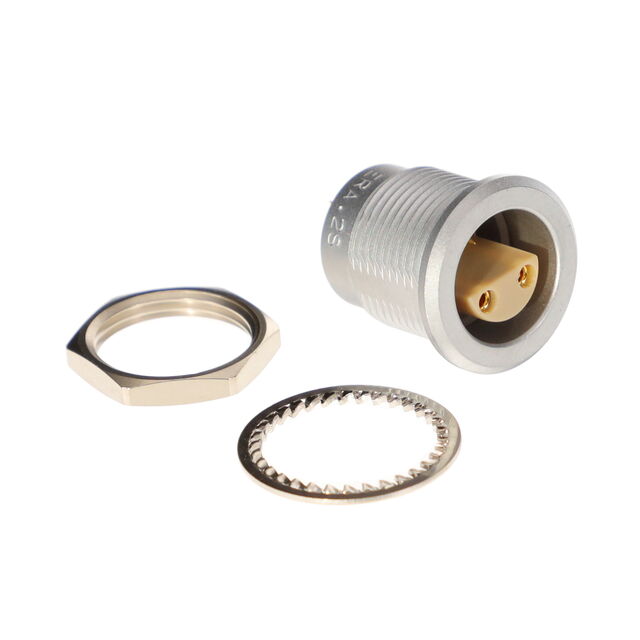

ERA.2S.303.CLL
ActiveLEMO
CONN CIRC RCPT 3P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ERA.2S.303.CLL
ActiveLEMO
CONN CIRC RCPT 3P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ERA.2S.303.CLL | ERA.2S Series |
|---|---|---|
| Body Finish | - | Chrome |
| Body Material | - | Brass |
| Cable Group | - | 8232A, 9222, RG-174, Belden 8215, 223, RG-58C, 302, 400, 59B |
| Center Contact Material | - | Beryllium Copper |
| Center Contact Plating | - | Gold |
| Color | Silver | Silver |
| Connector Style | - | Triaxial, Coaxial |
| Connector Type | Female Sockets, Male Pins, Receptacle | Female Sockets, Male Pins, Receptacle, Female Socket, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Bronze, Brass | Bronze, Brass |
| Contact Termination | - | Solder Cup |
| Current Rating (Amps) | 15 A | 7 - 40 A |
| Dielectric Material | - | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Push-Pull | Push-Pull |
| Housing Color | - | Silver |
| Impedance | - | 50 Ohms |
| Includes | - | 1 Nut, 1 Connector, 1 Lockwasher |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mating Cycles | - | 1000 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Number of Ports | - | 1 |
| Number of Positions | - | 1 - 10 |
| Operating Temperature [Max] | 250 °C | 200 - 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 303 | 140 - 310 |
| Shield Termination | - | Solder |
| Shielding | Shielded | Shielded |
ERA.2S Series
CONN CIRC RCPT 3P GOLD SLDR CUP
| Part | Contact Material | Fastening Type | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Current Rating (Amps) | Mounting Feature | Material Flammability Rating | Color | Shell Material | Insert Material | Shielding | Orientation | Connector Type | Shell Size - Insert | Contact Finish - Mating | Primary Material | Number of Positions | Body Finish | Includes | Connector Style | Impedance | Center Contact Plating | Shield Termination | Mating Cycles | Cable Group | Contact Termination | Body Material | Center Contact Material | Dielectric Material | Housing Color | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO ERA.2S.303.CLL | Brass, Bronze | Push-Pull | IP50 | -55 °C | 250 °C | Chrome | 15 A | Bulkhead - Rear Side Nut | UL94 V-0 | Silver | Brass | Polyetheretherketone (PEEK) | Shielded | Keyed | Female Sockets, Male Pins, Receptacle | 303 | Gold | Metal | |||||||||||||||
LEMO ERA.2S.302.CLL | Brass, Bronze | Push-Pull | IP50 | -55 °C | 250 °C | Chrome | 20 A | Bulkhead - Rear Side Nut | UL94 V-0 | Silver | Brass | Polyetheretherketone (PEEK) | Shielded | Keyed | Female Sockets, Male Pins, Receptacle | 302 | Gold | Metal | 2 | ||||||||||||||
LEMO ERA.2S.650.CTL | Push-Pull | IP50 | -55 °C | 200 °C | Bulkhead - Rear Side Nut | Female Socket, Receptacle | Chrome | 1 Connector, 1 Lockwasher, 1 Nut | Triaxial | 50 Ohms | Gold | Solder | 1000 | 8232A, 9222, Belden 8215, RG-174 | Solder Cup | Brass | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Silver | ||||||||||||||
LEMO ERA.2S.310.CLL | Brass, Bronze | Push-Pull | IP50 | -55 °C | 250 °C | Chrome | 7 A | Bulkhead - Rear Side Nut | UL94 V-0 | Silver | Brass | Polyetheretherketone (PEEK) | Shielded | Keyed | Female Sockets, Male Pins, Receptacle | 310 | Gold | Metal | 10 | ||||||||||||||
LEMO ERA.2S.408.CLL | Bronze | Push-Pull | IP50 | -55 °C | 250 °C | Chrome | 10 A | Bulkhead - Rear Side Nut | UL94 V-0 | Silver | Brass | Polyetheretherketone (PEEK) | Shielded | Keyed | Receptacle, Female Sockets | Gold | Metal | 1 | |||||||||||||||
LEMO ERA.2S.250.CTL | Push-Pull | IP50 | -55 °C | 200 °C | Bulkhead - Rear Side Nut | Female Socket, Receptacle | Chrome | 1 Connector, 1 Lockwasher, 1 Nut | Coaxial | 50 Ohms | Gold | Solder | 1000 | 223, 302, 400, 59B, RG-58C | Solder Cup | Brass | Beryllium Copper | Polytetrafluoroethylene (PTFE) | Silver | 1 | |||||||||||||
LEMO ERA.2S.305.CLL | Brass, Bronze | Push-Pull | IP50 | -55 °C | 250 °C | Chrome | 13 A | Bulkhead - Rear Side Nut | UL94 V-0 | Silver | Brass | Polyetheretherketone (PEEK) | Shielded | Keyed | Female Sockets, Male Pins, Receptacle | 305 | Gold | Metal | |||||||||||||||
LEMO ERA.2S.307.CLL | Brass, Bronze | Push-Pull | IP50 | -55 °C | 250 °C | Chrome | 9 A, 12 A | Bulkhead - Rear Side Nut | UL94 V-0 | Silver | Brass | Polyetheretherketone (PEEK) | Shielded | Keyed | Female Sockets, Male Pins, Receptacle | 307 | Gold | Metal | 7 | ||||||||||||||
LEMO ERA.2S.408.CTL | Bronze | Push-Pull | IP50 | -55 °C | 250 °C | Chrome | 10 A | Bulkhead - Rear Side Nut | Silver | Brass | Polytetrafluoroethylene (PTFE) | Shielded | Keyed | Receptacle, Female Sockets | Gold | Metal | 1 | ||||||||||||||||
LEMO ERA.2S.140.CLL | Bronze | Push-Pull | IP50 | -55 °C | 250 °C | Chrome | 40 A | Bulkhead - Rear Side Nut | UL94 V-0 | Silver | Brass | Polyetheretherketone (PEEK) | Shielded | Keyed | Receptacle, Female Sockets | 140 | Gold | Metal | 1 |
