ERA.2S.408.CTL

Active

LEMO

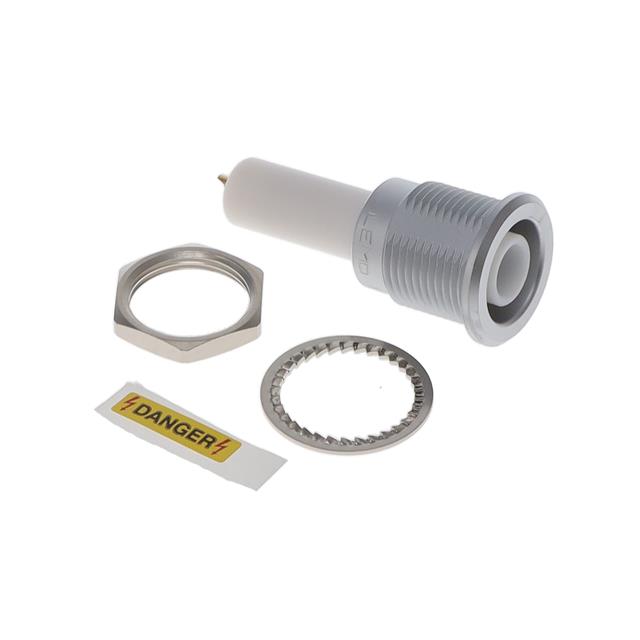

CONN RCPT FMALE 1P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ERA.2S.408.CTL

Active

LEMO

CONN RCPT FMALE 1P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 52.30
		10	$ 47.99
		25	$ 46.15
		50	$ 44.61
		100	$ 42.15

Description

General part information

ERA.2S Series

1 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ERA.2S.408.CTL	ERA.2S Series

Body Finish	-	Chrome
Body Material	-	Brass
Cable Group	-	8232A, 9222, RG-174, Belden 8215, 223, RG-58C, 302, 400, 59B
Center Contact Material	-	Beryllium Copper
Center Contact Plating	-	Gold
Color	Silver	Silver
Connector Style	-	Triaxial, Coaxial
Connector Type	Receptacle, Female Sockets	Female Sockets, Male Pins, Receptacle, Female Socket, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze	Bronze, Brass
Contact Termination	-	Solder Cup
Current Rating (Amps)	10 A	7 - 40 A
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Housing Color	-	Silver
Impedance	-	50 Ohms
Includes	-	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP50	IP50
Insert Material	Polytetrafluoroethylene (PTFE)	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Material Flammability Rating	-	UL94 V-0
Mating Cycles	-	1000
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Ports	-	1
Number of Positions	1	1 - 10
Operating Temperature [Max]	250 °C	200 - 250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	-	140 - 310
Shield Termination	-	Solder
Shielding	Shielded	Shielded

ERA.2S Series

CONN CIRC RCPT 3P GOLD SLDR CUP

Part	Contact Material	Fastening Type	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Current Rating (Amps)	Mounting Feature	Material Flammability Rating	Color	Shell Material	Insert Material	Shielding	Orientation	Connector Type	Shell Size - Insert	Contact Finish - Mating	Primary Material	Number of Positions	Body Finish	Includes	Connector Style	Impedance	Center Contact Plating	Shield Termination	Mating Cycles	Cable Group	Contact Termination	Body Material	Center Contact Material	Dielectric Material	Housing Color	Number of Ports
LEMO ERA.2S.303.CLL	Brass, Bronze	Push-Pull	IP50	-55 °C	250 °C	Chrome	15 A	Bulkhead - Rear Side Nut	UL94 V-0	Silver	Brass	Polyetheretherketone (PEEK)	Shielded	Keyed	Female Sockets, Male Pins, Receptacle	303	Gold	Metal
LEMO ERA.2S.302.CLL	Brass, Bronze	Push-Pull	IP50	-55 °C	250 °C	Chrome	20 A	Bulkhead - Rear Side Nut	UL94 V-0	Silver	Brass	Polyetheretherketone (PEEK)	Shielded	Keyed	Female Sockets, Male Pins, Receptacle	302	Gold	Metal	2
LEMO ERA.2S.650.CTL		Push-Pull	IP50	-55 °C	200 °C			Bulkhead - Rear Side Nut							Female Socket, Receptacle					Chrome	1 Connector, 1 Lockwasher, 1 Nut	Triaxial	50 Ohms	Gold	Solder	1000	8232A, 9222, Belden 8215, RG-174	Solder Cup	Brass	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Silver
LEMO ERA.2S.310.CLL	Brass, Bronze	Push-Pull	IP50	-55 °C	250 °C	Chrome	7 A	Bulkhead - Rear Side Nut	UL94 V-0	Silver	Brass	Polyetheretherketone (PEEK)	Shielded	Keyed	Female Sockets, Male Pins, Receptacle	310	Gold	Metal	10
LEMO ERA.2S.408.CLL	Bronze	Push-Pull	IP50	-55 °C	250 °C	Chrome	10 A	Bulkhead - Rear Side Nut	UL94 V-0	Silver	Brass	Polyetheretherketone (PEEK)	Shielded	Keyed	Receptacle, Female Sockets		Gold	Metal	1
LEMO ERA.2S.250.CTL		Push-Pull	IP50	-55 °C	200 °C			Bulkhead - Rear Side Nut							Female Socket, Receptacle					Chrome	1 Connector, 1 Lockwasher, 1 Nut	Coaxial	50 Ohms	Gold	Solder	1000	223, 302, 400, 59B, RG-58C	Solder Cup	Brass	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Silver	1
LEMO ERA.2S.305.CLL	Brass, Bronze	Push-Pull	IP50	-55 °C	250 °C	Chrome	13 A	Bulkhead - Rear Side Nut	UL94 V-0	Silver	Brass	Polyetheretherketone (PEEK)	Shielded	Keyed	Female Sockets, Male Pins, Receptacle	305	Gold	Metal
LEMO ERA.2S.307.CLL	Brass, Bronze	Push-Pull	IP50	-55 °C	250 °C	Chrome	9 A, 12 A	Bulkhead - Rear Side Nut	UL94 V-0	Silver	Brass	Polyetheretherketone (PEEK)	Shielded	Keyed	Female Sockets, Male Pins, Receptacle	307	Gold	Metal	7
LEMO ERA.2S.408.CTL	Bronze	Push-Pull	IP50	-55 °C	250 °C	Chrome	10 A	Bulkhead - Rear Side Nut		Silver	Brass	Polytetrafluoroethylene (PTFE)	Shielded	Keyed	Receptacle, Female Sockets		Gold	Metal	1
LEMO ERA.2S.140.CLL	Bronze	Push-Pull	IP50	-55 °C	250 °C	Chrome	40 A	Bulkhead - Rear Side Nut	UL94 V-0	Silver	Brass	Polyetheretherketone (PEEK)	Shielded	Keyed	Receptacle, Female Sockets	140	Gold	Metal	1
