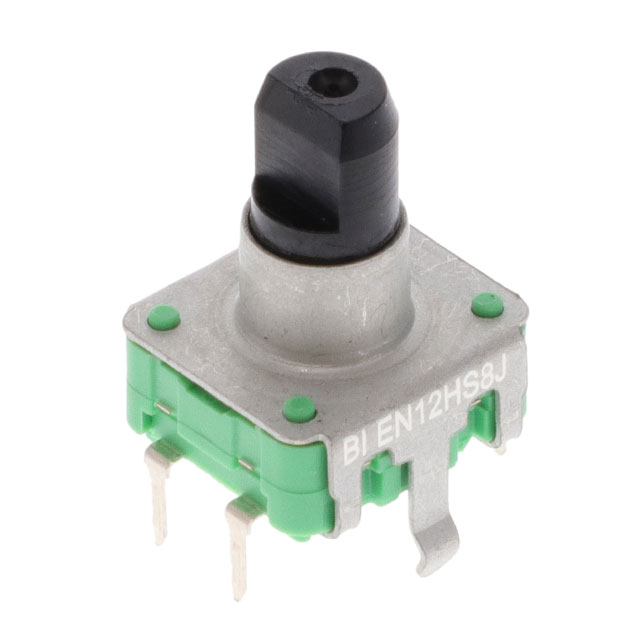

EN12-HS22AF18

Active

TT Electronics/BI

ROTARY ENCODER MECHANICAL 24PPR

Search across all available documentation for this part.

Active

TT Electronics/BI

ROTARY ENCODER MECHANICAL 24PPR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Encoder Mechanical 24 Quadrature (Incremental) Vertical

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	EN12-HS22AF18	EN12 Series

Actuator Type	Flatted End	Flatted End
Actuator Type [diameter]	6 mm	6 mm
Built in Switch	True	True, False
Detent	True	False, True
Encoder Type	Mechanical	Mechanical
Orientation	Vertical	Right Angle, Vertical
Output Type	Quadrature (Incremental)	Quadrature (Incremental)
Pulses per Revolution	24 per Revolution	12 - 24 per Revolution
Rotational Life (Cycles Min) [Min]	30K	30K
Termination Style	PC Pin	PC Pin

ROTARY ENCODER MECHANICAL 24PPR

Part	Output Type	Encoder Type	Termination Style	Orientation	Pulses per Revolution	Rotational Life (Cycles Min) [Min]	Actuator Type [diameter]	Actuator Type
TT Electronics/BI EN12-VS20AF20	Quadrature (Incremental)	Mechanical	PC Pin	Right Angle	24 per Revolution	30K	6 mm	Flatted End
TT Electronics/BI EN12-HS11AF18	Quadrature (Incremental)	Mechanical	PC Pin	Vertical	12 pulses per revolution	30K	6 mm	Flatted End
TT Electronics/BI EN12-HS22AF18	Quadrature (Incremental)	Mechanical	PC Pin	Vertical	24 per Revolution	30K	6 mm	Flatted End
TT Electronics/BI EN12-HS22AF20	Quadrature (Incremental)	Mechanical	PC Pin	Vertical	24 per Revolution	30K	6 mm	Flatted End
TT Electronics/BI EN12-HN11AF18	Quadrature (Incremental)	Mechanical	PC Pin	Vertical	12 pulses per revolution	30K	6 mm	Flatted End
TT Electronics/BI EN12-VS20A18	Quadrature (Incremental)	Mechanical	PC Pin	Right Angle	24 per Revolution	30K	6 mm	Flatted End
TT Electronics/BI EN12-VS22AF18	Quadrature (Incremental)	Mechanical	PC Pin	Right Angle	24 per Revolution	30K	6 mm	Flatted End
TT Electronics/BI EN12-VS20AF18	Quadrature (Incremental)	Mechanical	PC Pin	Right Angle	24 per Revolution	30K	6 mm	Flatted End
TT Electronics/BI EN12-HN20AF18	Quadrature (Incremental)	Mechanical	PC Pin	Vertical	24 per Revolution	30K	6 mm	Flatted End
TT Electronics/BI EN12-HN22AF25	Quadrature (Incremental)	Mechanical	PC Pin	Vertical	24 per Revolution	30K	6 mm	Flatted End
