1/2AA12-N4

Active

ULTRAVOLT / Advanced Energy

DC DC CONVERTER 500V 15W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

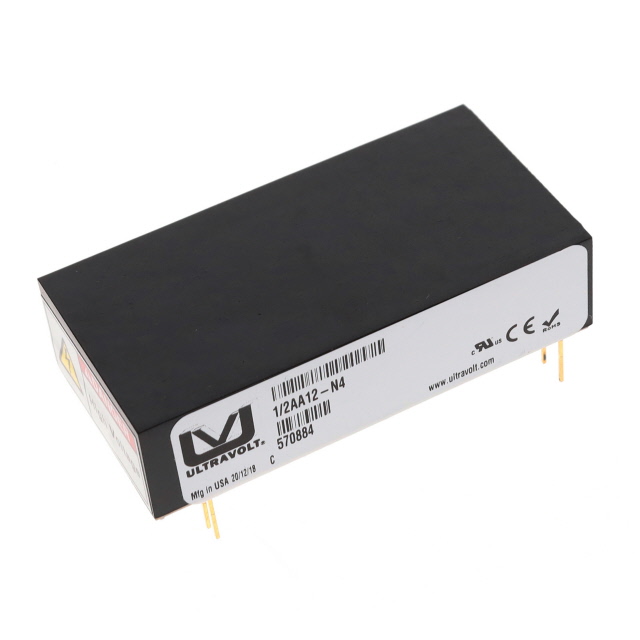

1/2AA12-N4

Active

ULTRAVOLT / Advanced Energy

DC DC CONVERTER 500V 15W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1/2AA12-N4	1/2AA12 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, cURus	CE, cURus
Control Features	Active Low, Enable	Active High, Enable, Active Low
Current - Output (Max) [Max]	8 mA	8 mA
Features	-	Heat Sink
Mounting Type	Through Hole	Through Hole, Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	65 °C	65 - 85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	11-DIP Module	11-DIP Module
Power (Watts)	15 W	4 - 15 W
Size / Dimension [x]	2.97 in	2.97 - 3 "
Size / Dimension [x]	75.4 mm	75.4 - 76.2 mm
Size / Dimension [y]	1.5 in	1.5 - 1.53 in
Size / Dimension [y]	38.1 mm	38.1 - 38.9 mm
Size / Dimension [z]	0.75 in	0.75 - 1.28 in
Size / Dimension [z]	19.1 mm	19.1 - 32.6 mm
Type	High Voltage - Non-Isolated Module	High Voltage - Non-Isolated Module, Enclosed
Voltage - Input (Max) [Max]	16 V	16 V
Voltage - Input (Min) [Min]	11 V	11 V
Voltage - Output 1	500 V	500 V

1/2AA12 Series

Non-Isolated DC/DC Converters AA-Series DC to HVDC Converter, Single output (Unipolar), +12V Input, +4000V HVout, 4W, Thru-hole mount, Regulated, Standard Interface, 25ppm/ C Temperature Coefficient

Part	Voltage - Output 1	Package / Case	Control Features	Power (Watts)	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Applications	Current - Output (Max) [Max]	Number of Outputs	Type	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Mounting Type	Features
ULTRAVOLT / Advanced Energy 1/2AA12-P4-25PPM-M-H	500 V	11-DIP Module	Active High, Enable	15 W	CE, cURus	65 °C	-40 °C	32.6 mm	76.2 mm	1.28 in	38.9 mm	1.53 in	3 "	ITE (Commercial)	8 mA	1	High Voltage - Non-Isolated Module	11 V	16 V	Through Hole	Heat Sink
ULTRAVOLT / Advanced Energy 1/2AA12-P4-H	500 V	11-DIP Module	Active High, Enable	15 W	CE, cURus	65 °C	-40 °C	31.8 mm	75.4 mm	1.25 "	38.1 mm	1.5 in	2.97 in	ITE (Commercial)	8 mA	1	High Voltage - Non-Isolated Module	11 V	16 V	Through Hole	Heat Sink
ULTRAVOLT / Advanced Energy 1/2AA12-P4-25PPM-E	500 V			4 W	CE, cURus	85 °C	-40 °C	19.1 mm	75.4 mm	0.75 in	38.1 mm	1.5 in	2.97 in	ITE (Commercial)	8 mA	1	Enclosed	11 V	16 V	Chassis Mount
ULTRAVOLT / Advanced Energy 1/2AA12-P4-M-E	500 V			4 W	CE, cURus	85 °C	-40 °C	19.1 mm	75.4 mm	0.75 in	38.1 mm	1.5 in	2.97 in	ITE (Commercial)	8 mA	1	Enclosed	11 V	16 V	Chassis Mount
ULTRAVOLT / Advanced Energy 1/2AA12-P4-25PPM-M-E	500 V			4 W	CE, cURus	85 °C	-40 °C	19.1 mm	75.4 mm	0.75 in	38.1 mm	1.5 in	2.97 in	ITE (Commercial)	8 mA	1	Enclosed	11 V	16 V	Chassis Mount
ULTRAVOLT / Advanced Energy 1/2AA12-N4-25PPM	500 V	11-DIP Module	Active Low, Enable	15 W	CE, cURus	65 °C	-40 °C	19.1 mm	75.4 mm	0.75 in	38.1 mm	1.5 in	2.97 in	ITE (Commercial)	8 mA	1	High Voltage - Non-Isolated Module	11 V	16 V	Through Hole
ULTRAVOLT / Advanced Energy 1/2AA12-P4-I5-H	500 V	11-DIP Module	Active High, Enable	15 W	CE, cURus	65 °C	-40 °C	31.8 mm	75.4 mm	1.25 "	38.1 mm	1.5 in	2.97 in	ITE (Commercial)	8 mA	1	High Voltage - Non-Isolated Module	11 V	16 V	Through Hole	Heat Sink
ULTRAVOLT / Advanced Energy 1/2AA12-P4-I5-M-H	500 V	11-DIP Module	Active High, Enable	15 W	CE, cURus	65 °C	-40 °C	32.6 mm	76.2 mm	1.28 in	38.9 mm	1.53 in	3 "	ITE (Commercial)	8 mA	1	High Voltage - Non-Isolated Module	11 V	16 V	Through Hole	Heat Sink
ULTRAVOLT / Advanced Energy 1/2AA12-P4-I5-25PPM-M-H	500 V	11-DIP Module	Active High, Enable	15 W	CE, cURus	65 °C	-40 °C	32.6 mm	76.2 mm	1.28 in	38.9 mm	1.53 in	3 "	ITE (Commercial)	8 mA	1	High Voltage - Non-Isolated Module	11 V	16 V	Through Hole	Heat Sink
ULTRAVOLT / Advanced Energy 1/2AA12-N4	500 V	11-DIP Module	Active Low, Enable	15 W	CE, cURus	65 °C	-40 °C	19.1 mm	75.4 mm	0.75 in	38.1 mm	1.5 in	2.97 in	ITE (Commercial)	8 mA	1	High Voltage - Non-Isolated Module	11 V	16 V	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 470.56

Description

General part information

1/2AA12 Series

Non-Isolated DC/DC Converters AA-Series DC to HVDC Converter, Single output (Unipolar), +12V Input, +4000V HVout, 4W, Thru-hole mount, Regulated, Standard Interface, 25ppm/ C Temperature Coefficient

Documents

Technical documentation and resources
