R141306000

Active

Radiall USA, Inc.

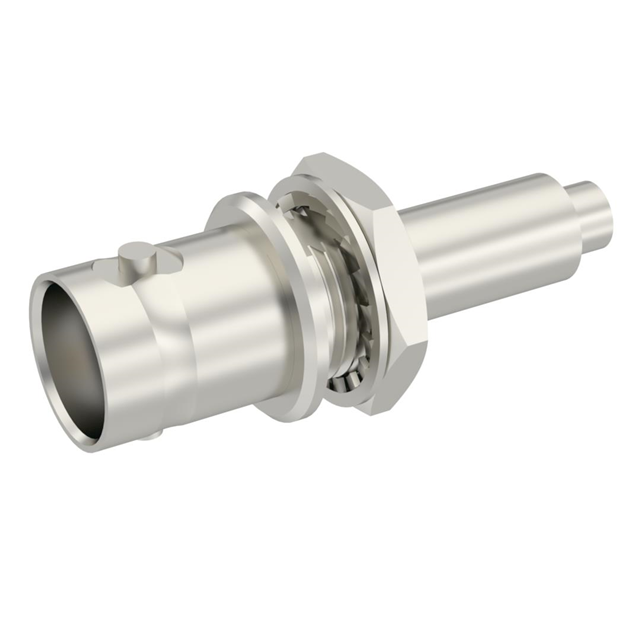

RF BNC CONNECTOR, FEMALE, PANEL MOUNT, CABLE MOUNT, CRIMP TERMINAL, JACK

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF BNC CONNECTOR, FEMALE, PANEL MOUNT, CABLE MOUNT, CRIMP TERMINAL, JACK

Technical Specifications

Parameters and characteristics for this part

Specification	R141306000

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-174, 316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Lockwasher, 1 Braid Clamp, 1 Insulator, 1 Connector, 1 Nut, 1 Ferrule, 1 Contact
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Impedance	Mating Cycles	Housing Color	Includes	Cable Group	Frequency - Max [Max]	Connector Type	Fastening Type	Voltage Rating	Connector Style	Shield Termination	Contact Termination	Dielectric Material	Center Contact Plating	Body Finish	Number of Ports	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Mounting Feature
Radiall USA, Inc. R141306000	50 Ohms	500	Silver	1 Braid Clamp 1 Connector 1 Contact 1 Ferrule 1 Insulator 1 Lockwasher 1 Nut	316 RG-174	4 GHz	Female Socket Jack	Bayonet Lock	335 V	BNC	Crimp	Crimp	Polytetrafluoroethylene (PTFE)	Gold	Nickel	1	Beryllium Copper	-65 ░C	165 °C	Brass	Bulkhead - Rear Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Crimp
