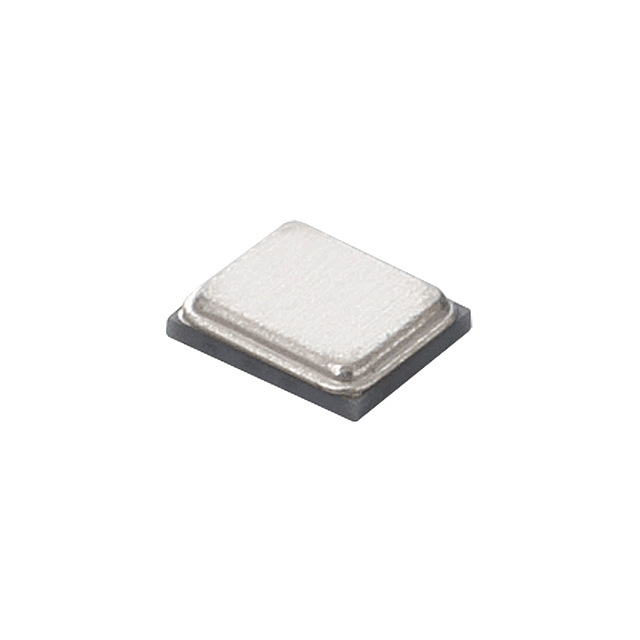

XRCTD48M000N2P50R0

Obsolete

Murata Electronics

CRYSTAL 48.0000MHZ SMD

Search across all available documentation for this part.

Obsolete

Murata Electronics

CRYSTAL 48.0000MHZ SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.40

General part information

CRYSTAL 48.0000MHZ SMD

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	XRCTD48M000N2P50R0	XRCTD Series

ESR (Equivalent Series Resistance)	-	60 Ohms
Frequency	-	32 - 48 MHz
Frequency Stability	-	10 - 20 ppm
Frequency Tolerance	-	10 - 20 ppm
Load Capacitance	-	6 pF
Mounting Type	-	Surface Mount
null		-
Operating Mode	-	Fundamental
Operating Temperature	-	-30 ░C
Operating Temperature	-	85 °C
Package / Case	-	4-SMD, No Lead
Size / Dimension	-	1.2 mm
Size / Dimension	-	1 mm
Size / Dimension	-	0.039 "
Size / Dimension	-	0.047 in
Type	-	MHz Crystal

1.2 X 1.0 X 0.3MM 48 MHZ CRYSTAL

Part	Mounting Type	Frequency	Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Mode	Package / Case	Frequency Stability	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Frequency Tolerance	Load Capacitance	ESR (Equivalent Series Resistance)
Murata Electronics XRCTD48M000N1Q1BR0	Surface Mount	48 MHz	MHz Crystal	-30 ░C	85 °C	Fundamental	4-SMD, No Lead	10 ppm	1.2 mm	1 mm	0.039 "	0.047 in	10 ppm
Murata Electronics XRCTD48M000N2P50R0
Murata Electronics XRCTD32M000N1P1AR0	Surface Mount	32 MHz	MHz Crystal	-30 ░C	85 °C	Fundamental	4-SMD, No Lead	20 ppm	1.2 mm	1 mm	0.039 "	0.047 in	10 ppm	6 pF
Murata Electronics XRCTD38M400N1Q1BR0	Surface Mount	38.4 MHz	MHz Crystal	-30 ░C	85 °C	Fundamental	4-SMD, No Lead	10 ppm	1.2 mm	1 mm	0.039 "	0.047 in	10 ppm
Murata Electronics XRCTD37M400FXQ50R0	Surface Mount	37.4 MHz	MHz Crystal	-30 ░C	85 °C	Fundamental	4-SMD, No Lead	20 ppm	1.2 mm	1 mm	0.039 "	0.047 in	20 ppm	6 pF	60 Ohms
Murata Electronics XRCTD38M400NXQ00R0		38.4 MHz
