T1410162000-000
ActiveTE Connectivity AMP Connectors
H16B-AG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T1410162000-000
ActiveTE Connectivity AMP Connectors
H16B-AG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T1410162000-000 | T141 Series |
|---|---|---|
| Connector Type | Base - Panel Mount | Base - Panel Mount |
| Housing Color | Gray | Gray, Red, Silver |
| Housing Finish | Powder Coated | Powder Coated, EMC Coating |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom | Locking Clip (2) on Hood, Locking Clip (2) on Base Bottom |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | H16B | H32A, H24B, H10B, H16B |
| Size / Dimension [x] | 116.2 mm | 95.2 - 142.2 mm |
| Size / Dimension [x] | 4.575 in | 3.748 - 5.598 in |
| Size / Dimension [y] | 45.7 mm | 44.4 - 59.2 mm |
| Size / Dimension [y] | 1.799 " | 1.748 - 2.331 in |
| Size / Dimension [z] | 1.173 in | 1.138 - 1.173 in |
| Size / Dimension [z] | 29.8 mm | 28.9 - 29.8 mm |
| Style | Bottom Entry | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.12 | |
| 10 | $ 11.86 | |||
| 30 | $ 11.55 | |||
| 50 | $ 11.11 | |||
| 100 | $ 10.29 | |||
| 250 | $ 10.23 | |||
| 500 | $ 9.86 | |||
| 1000 | $ 8.79 | |||
T141 Series
H32A-AG-BO
| Part | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Style | Ingress Protection | Lock Location | Connector Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size | Housing Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T1419320001-000 | Aluminum Alloy, Die Cast | 125 °C | -40 °C | Gray | Bottom Entry | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Hood | Base - Panel Mount | 59.2 mm | 1.165 in | 4.102 in | 29.6 mm | 104.2 mm | 2.331 in | H32A | Powder Coated |
TE Connectivity AMP Connectors T1415242000-000 | Aluminum Alloy, Die Cast | 125 °C | -40 °C | Bottom Entry | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Base Bottom | Base - Panel Mount | H24B | ||||||||
TE Connectivity AMP Connectors T1410102000-100 | Aluminum Alloy, Die Cast | 125 °C | -40 °C | Gray | Bottom Entry | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Base Bottom | Base - Panel Mount | 45.7 mm | 1.173 in | 3.748 " | 29.8 mm | 95.2 mm | 1.799 " | H10B | Powder Coated |
TE Connectivity AMP Connectors T1419320000-000 | Aluminum Alloy, Die Cast | 125 °C | -40 °C | Gray | Bottom Entry | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Base Bottom | Base - Panel Mount | H32A | Powder Coated | ||||||
TE Connectivity AMP Connectors T1415164000-000 | Aluminum Alloy, Die Cast | 125 °C | -40 °C | Bottom Entry | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Base Bottom | Base - Panel Mount | H16B | EMC Coating | |||||||
TE Connectivity AMP Connectors T1410161000-000 | Aluminum Alloy, Die Cast | 125 °C | -40 °C | Gray | Bottom Entry | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Base Bottom | Base - Panel Mount | 45.7 mm | 1.173 in | 4.575 in | 29.8 mm | 116.2 mm | 1.799 " | H16B | Powder Coated |
TE Connectivity AMP Connectors T1410167000-000 | Aluminum Alloy, Die Cast | 125 °C | -40 °C | Red | Bottom Entry | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Base Bottom | Base - Panel Mount | 45.7 mm | 1.173 in | 4.575 in | 29.8 mm | 116.2 mm | 1.799 " | H16B | Powder Coated |
TE Connectivity AMP Connectors T1410241000-100 | Aluminum Alloy, Die Cast | 125 °C | -40 °C | Gray | Bottom Entry | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Base Bottom | Base - Panel Mount | 45.7 mm | 1.173 in | 5.598 in | 29.8 mm | 142.2 mm | 1.799 " | H24B | Powder Coated |
TE Connectivity AMP Connectors T1415244000-000 | Aluminum Alloy, Die Cast | 125 °C | -40 °C | Bottom Entry | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Base Bottom | Base - Panel Mount | H24B | ||||||||
TE Connectivity AMP Connectors T1410242000-100 | Aluminum Alloy, Die Cast | 125 °C | -40 °C | Gray | Bottom Entry | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Base Bottom | Base - Panel Mount | 45.7 mm | 1.173 in | 5.598 in | 29.8 mm | 142.2 mm | 1.799 " | H24B | Powder Coated |
TE Connectivity AMP Connectors T1410101000-000 | Aluminum Alloy, Die Cast | 125 °C | -40 °C | Gray | Bottom Entry | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Base Bottom | Base - Panel Mount | 45.7 mm | 1.173 in | 3.748 " | 29.8 mm | 95.2 mm | 1.799 " | H10B | Powder Coated |
TE Connectivity AMP Connectors T1410162000-000 | Aluminum Alloy, Die Cast | 125 °C | -40 °C | Gray | Bottom Entry | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Base Bottom | Base - Panel Mount | 45.7 mm | 1.173 in | 4.575 in | 29.8 mm | 116.2 mm | 1.799 " | H16B | Powder Coated |
TE Connectivity AMP Connectors T1415163000-000 | Aluminum Alloy, Die Cast | 125 °C | -40 °C | Bottom Entry | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Base Bottom | Base - Panel Mount | 44.4 mm | 1.138 " | 4.449 " | 28.9 mm | 113 mm | 1.748 " | H16B | EMC Coating | |
TE Connectivity AMP Connectors T1410241000-G00 | Aluminum Alloy, Die Cast | 125 °C | -40 °C | Gray | Bottom Entry | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Base Bottom | Base - Panel Mount | 45.7 mm | 1.173 in | 5.598 in | 29.8 mm | 142.2 mm | 1.799 " | H24B | Powder Coated |
TE Connectivity AMP Connectors T1410107000-000 | Aluminum Alloy, Die Cast | 125 °C | -40 °C | Red | Bottom Entry | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Base Bottom | Base - Panel Mount | 45.7 mm | 1.173 in | 3.748 " | 29.8 mm | 95.2 mm | 1.799 " | H10B | Powder Coated |
TE Connectivity AMP Connectors T1410244000-000 | Aluminum Alloy, Die Cast | 125 °C | -40 °C | Silver | Bottom Entry | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Base Bottom | Base - Panel Mount | 45.7 mm | 1.173 in | 5.598 in | 29.8 mm | 142.2 mm | 1.799 " | H24B | Powder Coated |
TE Connectivity AMP Connectors T1410164000-000 | Aluminum Alloy, Die Cast | 125 °C | -40 °C | Silver | Bottom Entry | IP65 - Dust Tight, Water Resistant | Locking Clip (2) on Base Bottom | Base - Panel Mount | 45.7 mm | 1.173 in | 4.575 in | 29.8 mm | 116.2 mm | 1.799 " | H16B | Powder Coated |
Description
General part information
T141 Series

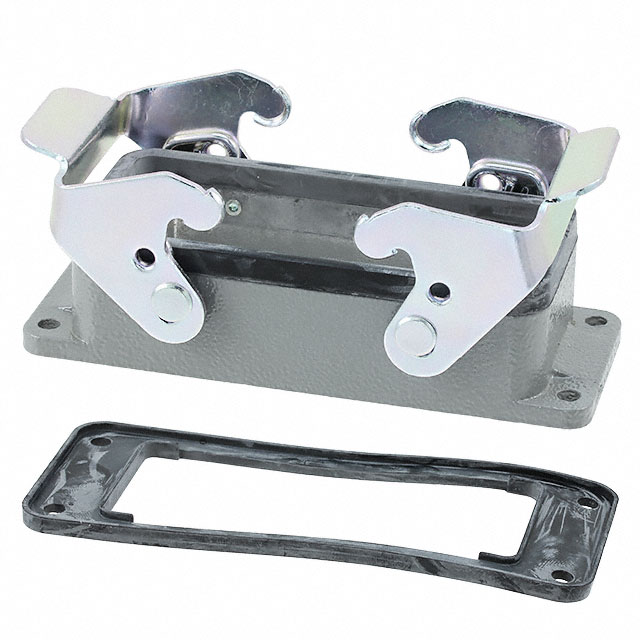

Base - Panel Mount Connector Bottom Entry H16B IP65 - Dust Tight, Water Resistant
