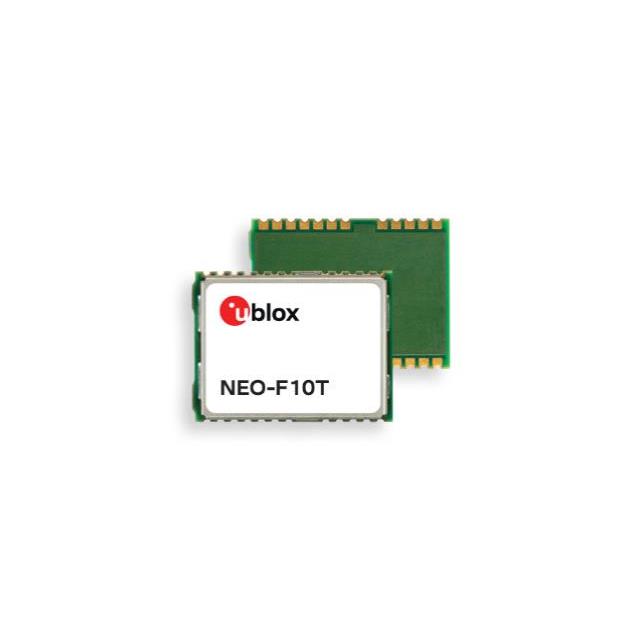

NEO-F10T-00B
Activeu-blox
MOD RF RECEIVER GPS GNSS
Deep-Dive with AI
Search across all available documentation for this part.
NEO-F10T-00B
Activeu-blox
MOD RF RECEIVER GPS GNSS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NEO-F10T-00B |
|---|---|
| Antenna Connector | Not Included |
| Applications | GNSS Receiver, Cellular |
| Data Interface | UART |
| Modulation or Protocol | BeiDou, Galileo, GNSS, GLONASS, GPS, QZSS, 5G |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-SMD Module |
| Sensitivity | -167 dBm |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 160.00 | |
| 10 | $ 144.46 | |||
| 50 | $ 131.39 | |||
| Digi-Reel® | 1 | $ 160.00 | ||
| 10 | $ 144.46 | |||
| 50 | $ 131.39 | |||
| Tape & Reel (TR) | 250 | $ 115.54 | ||
Description
General part information
NEO-F10 Series
NEO-F10T RF Receiver 5G, BeiDou, Galileo, GLONASS, GNSS, GPS, QZSS -167dBm Not Included
