FFSD-25-D-xx,xx-01-N-Dxx

Cable Assemblies

FFSD-25-D-18.00-01-N-D09

Active

.050 X .050 C.L. FEMALE IDC ASSE

FFSD-25-D-xx,xx-01-N-Dxx

Cable Assemblies

FFSD-25-D-18.00-01-N-D09

Active

.050 X .050 C.L. FEMALE IDC ASSE

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFSD-25-D-18.00-01-N-D09

Cable Termination	IDC
Color	Gray, Ribbon
Connector Pin Count	3 Pin
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Features	Polarizing Key, Reverse Wiring
Length	1.5 ft
Number of Positions	50
Number of Rows	2
Pitch - Cable	0.025 in
Pitch - Connector	0.05 in
Shielding	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$	Updated

Digikey	Bulk	1	$ 43.00	<5d
Samtec Inc.	N/A	1	$ 43.00	<1d
		10	$ 39.89
		25	$ 37.22
		50	$ 34.40
		100	$ 30.44
		250	$ 27.02
		500	$ 21.53

CAD

3D models and CAD resources for this part

Description

General part information

FFSD-25 Series

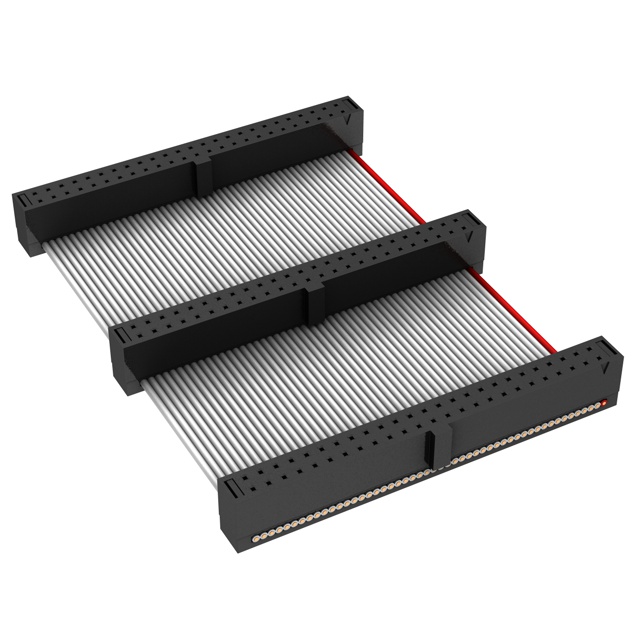

50 Position Cable Assembly Rectangular Socket to Socket (3) 1.50' (457.20mm)

Documents

Technical documentation and resources

FFSD-25-D-18.00-01-N-D09 | Datasheet

FFSD-25 Series

...

Part	Contact Finish Thickness	Number of Rows	Number of Positions	Pitch - Connector	Contact Finish	Shielding	Color	Length	Cable Termination	Features	Connector Type	Pitch - Cable	Connector Pin Count
Samtec Inc. FFSD-25-D-17.25-01-N	10 Ąin	2	50	0.05 in	Gold	Unshielded	Gray Ribbon	1.44 ft	IDC	Polarizing Key	Socket to Socket	0.025 in
Samtec Inc. FFSD-25-D-39.37-01-N-RW-R	10 Ąin	2	50	0.05 in	Gold	Unshielded	Gray Ribbon	3.28 ft	IDC	Polarizing Key Reverse Wiring	Reversed Socket to Socket	0.025 in
Samtec Inc. FFSD-25-S-15.90-01-N	10 Ąin	2	50	0.05 in	Gold	Unshielded	Gray Ribbon	1.32 ft	IDC	Polarizing Key	Socket to Cable	0.025 in
Samtec Inc. FFSD-25-D-07.00-01-N-D04-O	10 Ąin	2	50	0.05 in	Gold	Unshielded	Gray Ribbon	0.583 ft	IDC	Polarizing Key Reverse Wiring	Socket to Socket	0.025 in	3 Pin
Samtec Inc. FFSD-25-D-06.00-01-N-RN2	10 Ąin	2	50	0.05 in	Gold	Unshielded	Gray Ribbon	0.5 ft	IDC	Polarizing Key	Socket to Socket	0.025 in
Samtec Inc. FFSD-25-D-104.00-01-N-R	10 Ąin	2	50	0.05 in	Gold	Unshielded	Gray Ribbon	8.67 ft	IDC	Polarizing Key Reverse Wiring	Reversed Socket to Socket	0.025 in
Samtec Inc. FFSD-25-D-18.00-01-N-D09	10 Ąin	2	50	0.05 in	Gold	Unshielded	Gray Ribbon	1.5 ft	IDC	Polarizing Key Reverse Wiring	Socket to Socket	0.025 in	3 Pin
Samtec Inc. FFSD-25-D-75.80-01-N	10 Ąin	2	50	0.05 in	Gold	Unshielded	Gray Ribbon	6.32 ft	IDC	Polarizing Key	Socket to Socket	0.025 in
Samtec Inc. FFSD-25-D-20.00-01-F-N	3 µin	2	50	0.05 in	Gold	Unshielded	Gray Ribbon	1.67 ft	IDC	Polarizing Key	Socket to Socket	0.025 in
Samtec Inc. FFSD-25-D-17.70-01-N	10 Ąin	2	50	0.05 in	Gold	Unshielded	Gray Ribbon	1.47 ft	IDC	Polarizing Key	Socket to Socket	0.025 in
