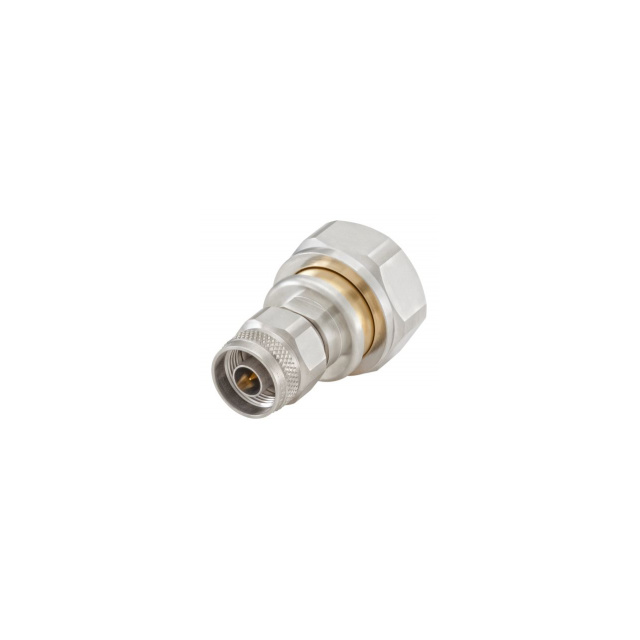

05S160-S50D3

Active

Rosenberger

PRECISION N TYPE CALIBRATION ADA

Search across all available documentation for this part.

Active

Rosenberger

PRECISION N TYPE CALIBRATION ADA

Technical Specifications

Parameters and characteristics for this part

Specification	05S160-S50D3

Accessory Type	Adapter
For Use With/Related Products	Network Analyzer
Specifications	N Type 50Ohm Plug, 7/16 50Ohm Plug
Type	Specialized

Part	For Use With/Related Products	Accessory Type	Specifications	Type	Convert From (Adapter End)	Center Contact Plating	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Adapter Type	Adapter Series	Adapter Series	Dielectric Material	Style	Mounting Type	Body Material	Conversion Type	Frequency - Max [Max]	Mating Cycles	Impedance	Body Finish	Convert To (Adapter End)
Rosenberger 05S160-S20S3	Network Analyzer	Calibration Adapter	7/16 Plug N Type 50Ohm Plug	Specialized
Rosenberger 05S160-S50D3	Network Analyzer	Adapter	7/16 50Ohm Plug N Type 50Ohm Plug	Specialized
Rosenberger 05S160-K50D3					N Plug Male Pin	Gold	85 °C	-40 °C	Beryllium Copper Brass	Plug to Jack	RJC-N	0.4375 DIN	Polyphenylene Ether (PPE)	Straight	Free Hanging (In-Line)	Brass	Between Series	8 GHz	500	50 Ohms	Silver White Bronze	7/16 Jack Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	5	$ 335.38

General part information

Specialized Adapter for use with Network Analyzer

Technical documentation and resources

No documents available
