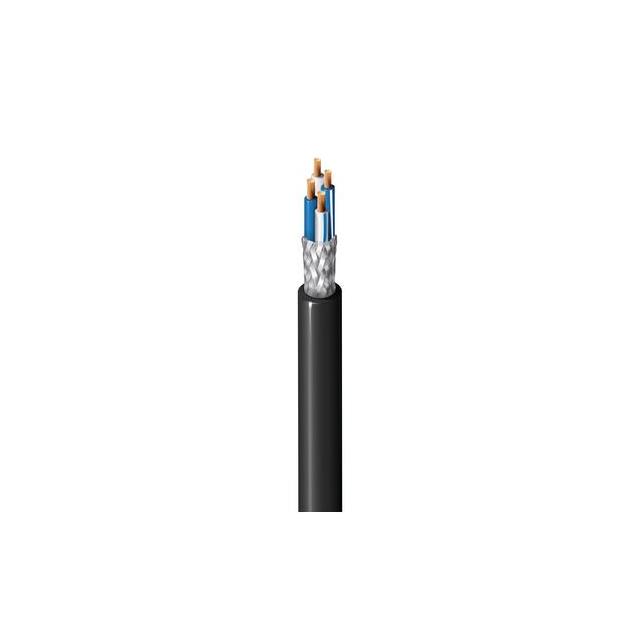

1192A B59100

Active

Belden Inc.

4 #24 PE SH PVC BLK MTT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Broadcast and Professional AV Solutions

1192A B59100

Active

Belden Inc.

4 #24 PE SH PVC BLK MTT

Deep-Dive with AI

DocumentsDatasheet Broadcast and Professional AV Solutions

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 3.75

Description

General part information

1192A Series

4 Conductor Microphone Cable Black 24 AWG Braid 100.0' (30.5m)

Documents

Technical documentation and resources

Datasheet

Broadcast and Professional AV Solutions

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1192A B59100	1192A Series

Cable Type	Microphone	Microphone
Conductor Insulation	Polyethylene (PE)	Polyethylene (PE)
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand	40 AWG, 42	40 - 42 AWG
Jacket (Insulation) Diameter [diameter]	6.22 mm	6.22 mm
Jacket (Insulation) Diameter [diameter]	0.245 in	0.245 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.118 mm	1.118 mm
Jacket (Insulation) Thickness	0.044 in	0.044 in
Jacket Color	Black	Green, Black, Red, Gray
Length	-	1000 ft
Length	-	304.8 m
Length [x]	30.5 m	30.5 - 152.4 m
Length [x]	100 ft	100 - 500 '
Number of Conductors	4	4
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-30 ░C	-30 ░C
Shield Coverage	92 %	92 %
Shield Material	Copper, Tinned	Copper, Tinned
Shield Type	Braid	Braid
Usage	Audio	Audio
Voltage	100 V	100 V
Wire Gauge	24 AWG	24 AWG

1192A Series

4 #24 PE SH PVC GRN MTT

Part	Jacket (Insulation) Material	Number of Conductors	Conductor Insulation	Cable Type	Shield Coverage	Shield Material	Jacket Color	Usage	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Conductor Material	Conductor Strand	Length [x]	Length [x]
Belden Inc. 1192A G7W1000	Poly-Vinyl Chloride (PVC)	4	Polyethylene (PE)	Microphone	92 %	Copper, Tinned	Green	Audio	1000 ft	304.8 m	1.118 mm	0.044 in	24 AWG	-30 ░C	75 ░C	100 V	6.22 mm	0.245 in	Braid	Copper, Bare	40 AWG, 42
Belden Inc. 1192A B591000	Poly-Vinyl Chloride (PVC)	4	Polyethylene (PE)	Microphone	92 %	Copper, Tinned	Black	Audio	1000 ft	304.8 m	1.118 mm	0.044 in	24 AWG	-30 ░C	75 ░C	100 V	6.22 mm	0.245 in	Braid	Copper, Bare	40 AWG, 42
Belden Inc. 1192A B59500	Poly-Vinyl Chloride (PVC)	4	Polyethylene (PE)	Microphone	92 %	Copper, Tinned	Black	Audio			1.118 mm	0.044 in	24 AWG	-30 ░C	75 ░C	100 V	6.22 mm	0.245 in	Braid	Copper, Bare	40 AWG, 42	500 '	152.4 m
Belden Inc. 1192A B59100	Poly-Vinyl Chloride (PVC)	4	Polyethylene (PE)	Microphone	92 %	Copper, Tinned	Black	Audio			1.118 mm	0.044 in	24 AWG	-30 ░C	75 ░C	100 V	6.22 mm	0.245 in	Braid	Copper, Bare	40 AWG, 42	100 ft	30.5 m
Belden Inc. 1192A G7WN1000	Poly-Vinyl Chloride (PVC)	4	Polyethylene (PE)	Microphone	92 %	Copper, Tinned	Green	Audio	1000 ft	304.8 m	1.118 mm	0.044 in	24 AWG	-30 ░C	75 ░C	100 V	6.22 mm	0.245 in	Braid	Copper, Bare	40 AWG, 42
Belden Inc. 1192A G7V1000	Poly-Vinyl Chloride (PVC)	4	Polyethylene (PE)	Microphone	92 %	Copper, Tinned	Red	Audio	1000 ft	304.8 m	1.118 mm	0.044 in	24 AWG	-30 ░C	75 ░C	100 V	6.22 mm	0.245 in	Braid	Copper, Bare	40 AWG, 42
Belden Inc. 1192A U901000	Poly-Vinyl Chloride (PVC)	4	Polyethylene (PE)	Microphone	92 %	Copper, Tinned	Gray	Audio	1000 ft	304.8 m	1.118 mm	0.044 in	24 AWG	-30 ░C	75 ░C	100 V	6.22 mm	0.245 in	Braid	Copper, Bare	40 AWG, 42
