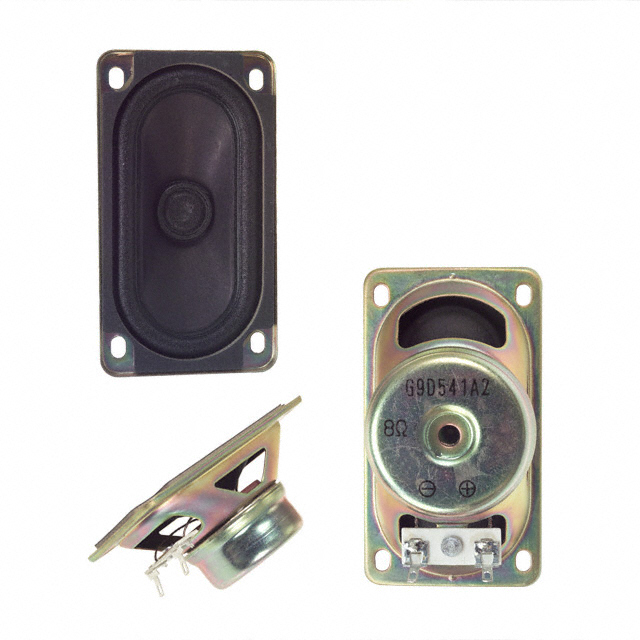

EAS-G9D541A2
ObsoletePanasonic Industrial Automation Sales
SPEAKER 8OHM 3W TOP PORT 88.5DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EAS-G9D541A2 |
|---|---|
| Efficiency - dBA | 88.5 dBA |
| Efficiency - Testing | 1 mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Height - Seated (Max) [Max] | 40.3 mm |
| Height - Seated (Max) [Max] | 1.587 in |
| Impedance | 8 Ohms |
| Port Location | Top |
| Power - Rated | 3 W |
| Shape | Oval, Rectangular Frame |
| Size / Dimension [x] | 3.563 in |
| Size / Dimension [x] | 90.5 mm |
| Size / Dimension [y] | 50.5 mm |
| Size / Dimension [y] | 1.988 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | Full Range |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EAS-G9 Series
8 Ohms Full Range Speaker 3 W Top Oval, Rectangular Frame
