NETM1000-14-0-SP

Active

TE Connectivity Raychem Cable Protection

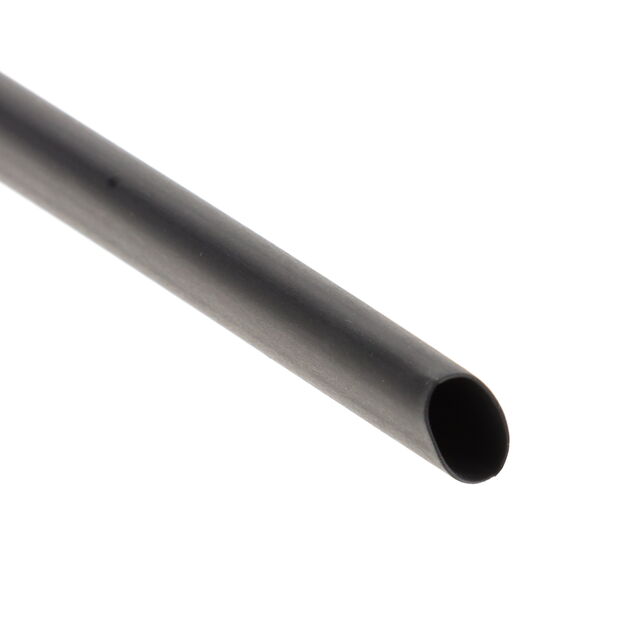

TUBING 0.551" ID POLY BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NETM1000-14-0-SP

Active

TE Connectivity Raychem Cable Protection

TUBING 0.551" ID POLY BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NETM1000-14-0-SP

Abrasion Protection	Abrasion Resistant
Color	Black
Diameter - Inside [diameter]	0.551 in
Diameter - Inside [diameter]	14 mm
Heat Protection	Flame Retardant, Heat Resistant
Length [x]	1 m
Length [x]	3.28 ft
Liquid Protection	Fluid Resistant, Fuel Resistant, Oil Resistant
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Shelf Life	144 Months
Type	Solid Tubing
Type Attributes	Smooth
Wall Thickness [custom]	0.51 mm
Wall Thickness [custom]	0.02 in

NETM1000 Series

Part	Type	Liquid Protection	Type Attributes	Shelf Life	Material	Operating Temperature [Max]	Operating Temperature [Min]	Wall Thickness [custom]	Wall Thickness [custom]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Abrasion Protection	Length [x]	Length [x]	Color	Heat Protection	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Length	Length	Diameter - Outside [diameter]
TE Connectivity Raychem Cable Protection NETM1000-14-0-SP	Solid Tubing	Fluid Resistant Fuel Resistant Oil Resistant	Smooth	144 Months	Polyolefin (PO)	135 °C	-55 °C	0.51 mm	0.02 in	0.551 in	14 mm	Abrasion Resistant	1 m	3.28 ft	Black	Flame Retardant Heat Resistant
TE Connectivity Raychem Cable Protection NETM1000-6-0-SP	Solid Tubing	Fluid Resistant Fuel Resistant Oil Resistant	Smooth	144 Months	Polyolefin (PO)	135 °C	-55 °C	0.51 mm	0.02 in	0.236 in	6 mm	Abrasion Resistant	1 m	3.28 ft	Black	Flame Retardant Heat Resistant	7.01 mm	0.276 in	1000 m	3281 ft
TE Connectivity Raychem Cable Protection NETM1000-4-0-SP	Solid Tubing	Fluid Resistant Fuel Resistant Oil Resistant	Smooth	144 Months	Polyolefin (PO)	135 °C	-55 °C	0.51 mm	0.02 in	0.157 "	3.99 mm	Abrasion Resistant	1 m	3.28 ft	Black	Flame Retardant Heat Resistant	5 mm	0.197 in	1500 m	4921 ft
TE Connectivity Raychem Cable Protection NETM1000-3-0-SP	Solid Tubing	Fluid Resistant Fuel Resistant Oil Resistant	Smooth	144 Months	Polyolefin (PO)	135 °C	-55 °C	0.51 mm	0.02 in	0.118 "	3 mm	Abrasion Resistant			Black	Flame Retardant Heat Resistant	4 mm	0.157 in	1500 m	4921 ft
TE Connectivity Raychem Cable Protection NETM1000-12-0-SP	Solid Tubing	Fluid Resistant Fuel Resistant Oil Resistant	Smooth	144 Months	Polyolefin (PO)	135 °C	-55 °C	0.51 mm	0.02 in	0.472 in	12 mm	Abrasion Resistant	1 m	3.28 ft	Black	Flame Retardant Heat Resistant	0.512 in		250 m	820 ft	13 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.39
		5	$ 4.21
		10	$ 3.25
		25	$ 2.98
		50	$ 2.81
		100	$ 2.63

Description

General part information

NETM1000 Series

Black Polyolefin (PO) Smooth Solid Tubing 0.551" (14.00mm) 3.28' (1.00m)

Documents

Technical documentation and resources
