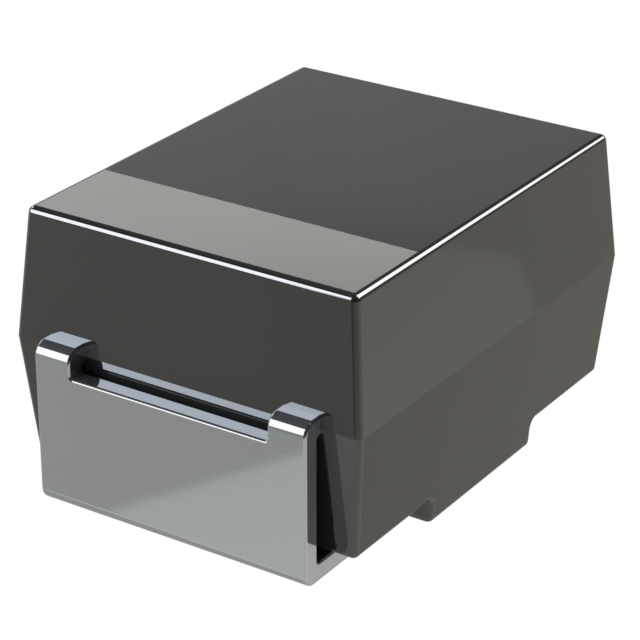

TCJB106M025R0150 - Capacitor

TCJB106M025R0150

Active
Kyocera AVX

CAP TANT POLY 10UF 25V 1210

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSolid Tantalum & OxiCap Material Handling GuidePolymer, Tantalum, Niobium Oxide Catalog+1
TCJB106M025R0150 - Capacitor

TCJB106M025R0150

Active
Kyocera AVX

CAP TANT POLY 10UF 25V 1210

Deep-Dive with AI

DocumentsSolid Tantalum & OxiCap Material Handling GuidePolymer, Tantalum, Niobium Oxide Catalog+1

Technical Specifications

Parameters and characteristics for this part

SpecificationTCJB106M025R0150
Capacitance10 µF
ESR (Equivalent Series Resistance)150 mOhm
FeaturesGeneral Purpose
Height - Seated (Max) [Max] [z]2.1 mm
Height - Seated (Max) [Max] [z]0.083 "
Lifetime @ Temp.2000 Hrs
Manufacturer Size CodeB
Mounting TypeSurface Mount
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Package / Case1210 (3528 Metric)
Size / Dimension [x]0.138 "
Size / Dimension [x]3.5 mm
Size / Dimension [y]0.11 in
Size / Dimension [y]2.8 mm
Tolerance20 %
TypeMolded
Voltage - Rated25 VDC

TCJB Series

...
PartManufacturer Size CodeTypeCapacitancePackage / CaseHeight - Seated (Max) [Max] [z]Height - Seated (Max) [Max] [z]FeaturesToleranceESR (Equivalent Series Resistance)Mounting TypeOperating Temperature [Max]Operating Temperature [Min]Size / Dimension [y]Size / Dimension [y]Size / Dimension [x]Size / Dimension [x]Voltage - RatedLifetime @ Temp.
Kyocera AVX
TCJB106M035R0200E
B
Molded
10 µF
1210 (3528 Metric)
2.1 mm
0.083 "
General Purpose
20 %
200 mOhm
Surface Mount
105 ░C
-55 °C
0.11 in
2.8 mm
0.138 "
3.5 mm
35 V
2000 Hrs
Kyocera AVX
TCJB157M006R0070E
B
Molded
150 µF
1210 (3528 Metric)
2.1 mm
0.083 "
General Purpose
20 %
70 mOhm
Surface Mount
105 ░C
-55 °C
0.11 in
2.8 mm
0.138 "
3.5 mm
6.3 V
2000 Hrs
Kyocera AVX
TCJB686M006R0055E
B
Molded
68 µF
1210 (3528 Metric)
2.1 mm
0.083 "
General Purpose
20 %
55 mOhm
Surface Mount
125 °C
-55 °C
0.11 in
2.8 mm
0.138 "
3.5 mm
6.3 V
2000 Hrs
Kyocera AVX
TCJB106M025R0150
B
Molded
10 µF
1210 (3528 Metric)
2.1 mm
0.083 "
General Purpose
20 %
150 mOhm
Surface Mount
105 ░C
-55 °C
0.11 in
2.8 mm
0.138 "
3.5 mm
25 VDC
2000 Hrs
Kyocera AVX
TCJB157M002R0070
B
Molded
150 µF
1210 (3528 Metric)
2.1 mm
0.083 "
General Purpose
20 %
70 mOhm
Surface Mount
105 ░C
-55 °C
0.11 in
2.8 mm
0.138 "
3.5 mm
2.5 V
2000 Hrs
Kyocera AVX
TCJB686M006R0070
B
Molded
68 µF
1210 (3528 Metric)
2.1 mm
0.083 "
General Purpose
20 %
70 mOhm
Surface Mount
125 °C
-55 °C
0.11 in
2.8 mm
0.138 "
3.5 mm
6.3 V
2000 Hrs
Kyocera AVX
TCJB107M006R0055
B
Molded
100 µF
1210 (3528 Metric)
2.1 mm
0.083 "
General Purpose
20 %
55 mOhm
Surface Mount
105 ░C
-55 °C
0.11 in
2.8 mm
0.138 "
3.5 mm
6.3 V
2000 Hrs
Kyocera AVX
TCJB227M002R0070
B
Molded
220 µF
1210 (3528 Metric)
2.1 mm
0.083 "
General Purpose
20 %
70 mOhm
Surface Mount
105 ░C
-55 °C
0.11 in
2.8 mm
0.138 "
3.5 mm
2.5 V
2000 Hrs
Kyocera AVX
TCJB157M006R0035E
B
Molded
150 µF
1210 (3528 Metric)
2.1 mm
0.083 "
General Purpose
20 %
35 mOhm
Surface Mount
105 ░C
-55 °C
0.11 in
2.8 mm
0.138 "
3.5 mm
6.3 V
2000 Hrs
Kyocera AVX
TCJB156M025R0150E
B
Molded
15 µF
1210 (3528 Metric)
2.1 mm
0.083 "
General Purpose
20 %
150 mOhm
Surface Mount
105 ░C
-55 °C
0.11 in
2.8 mm
0.138 "
3.5 mm
25 VDC
2000 Hrs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.97
10$ 0.59
50$ 0.44
100$ 0.40
500$ 0.32
1000$ 0.29
Digi-Reel® 1$ 0.97
10$ 0.59
50$ 0.44
100$ 0.40
500$ 0.32
1000$ 0.29
Tape & Reel (TR) 2000$ 0.27
4000$ 0.26
6000$ 0.25
10000$ 0.24
14000$ 0.23
20000$ 0.23

Description

General part information

TCJB Series

10 µF Molded Tantalum Polymer Capacitor 25 V 1210 (3528 Metric) 150mOhm @ 100kHz
