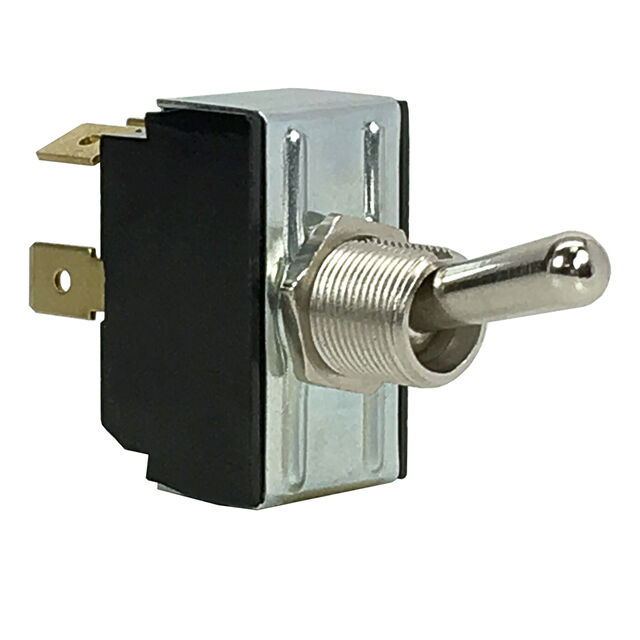

2GG51-73

Active

Carling Technologies

SWITCH TOGGLE DPDT 15A 125V

Search across all available documentation for this part.

Active

Carling Technologies

SWITCH TOGGLE DPDT 15A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	2GG51-73

Actuator Length [x]	17.45 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	DPDT
Current Rating (Amps)	15 A
Electrical Life	50000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [diameter]	12.7 mm
Switch Function	On-On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

SWITCH TOGGLE DPDT 15A 125V

Part	Switch Function	Voltage Rating - AC	Illumination	Actuator Length [x]	Actuator Type	Bushing Thread	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Current Rating (Amps)	Termination Style	Panel Cutout Dimensions [diameter]
Carling Technologies 2GG51-73	On-On-Off	125 V	Non-Illuminated	17.45 mm	Standard Round	15/32-32	DPDT	0 °C	85 °C	50000 Cycles	15 A	Quick Connect - 0.250" (6.3mm)	12.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	15	$ 12.86

General part information

Toggle Switch DPDT Panel Mount
