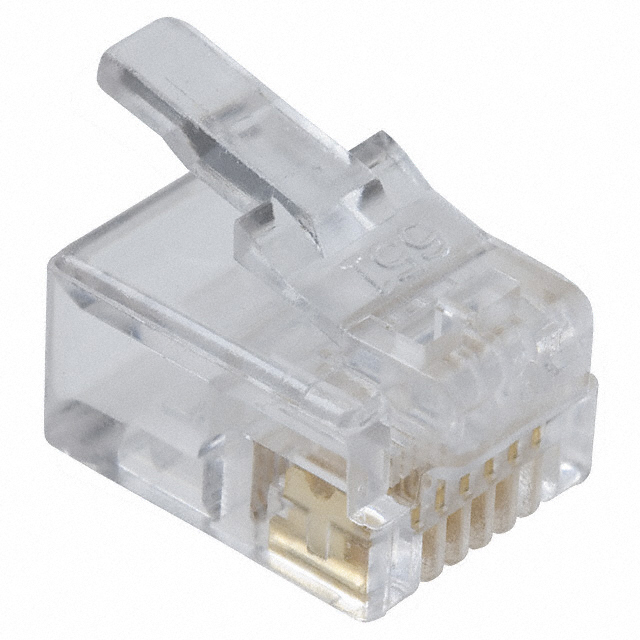

A-MO 6/6-SR

Active

Assmann WSW Components

CONN MOD PLUG 6P6C UNSHIELDED

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN MOD PLUG 6P6C UNSHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	A-MO 6/6-SR

Cable Type	Round Cable, Stranded Wires
Color	Translucent - Clear
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	0.152 Ám
Contact Finish Thickness	6 Áin
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Housing Material	Polycarbonate (PC)
Length	0.533 "
Length	13.54 mm
Number of Positions/Contacts	6p6c (RJ11, RJ12, RJ14, RJ25)
Shielding	Unshielded
Termination	IDC
Voltage Rating	250 VDC

Part	Connector Type	Housing Material	Length	Length	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Termination	Voltage Rating	Number of Positions/Contacts	Contact Finish	Shielding	Color	Contact Material	Cable Type	Length [x]	Length [x]
Assmann WSW Components A-MO 6/6-SR	Plug	Polycarbonate (PC)	0.533 "	13.54 mm	0.152 Ám	6 Áin	2 A	IDC	250 VDC	6p6c (RJ11 RJ12 RJ14 RJ25)	Gold	Unshielded	Translucent - Clear	Copper Alloy	Round Cable Stranded Wires
Assmann WSW Components A-MO 6/6-SF	Plug	Polycarbonate (PC)			0.152 Ám	6 Áin	2 A	IDC	250 VDC	6p6c (RJ11 RJ12 RJ14 RJ25)	Gold	Unshielded	Translucent - Clear	Copper Alloy	Flat Oval Cable Stranded Wires	0.526 in	13.35 mm
Assmann WSW Components A-MO 6/6-F50	Plug	Polycarbonate (PC)			1.27 µm	50 µin	2 A	IDC	250 VDC	6p6c (RJ11 RJ12 RJ14 RJ25)	Gold	Unshielded	Translucent - Clear	Copper Alloy	Flat Oval Cable Stranded Wires	0.526 in	13.35 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug Modular Connector 6p6c (RJ11, RJ12, RJ14, RJ25) Position Unshielded IDC
