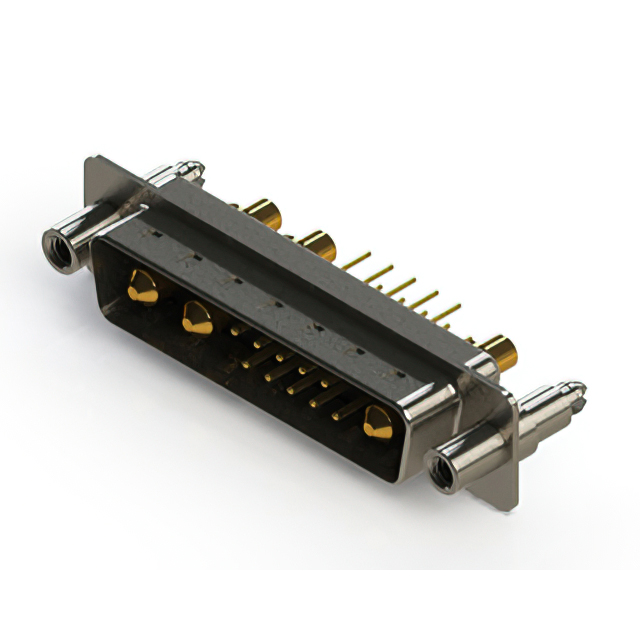

627-13W3624-3N6

Active

EDAC Inc.

CONN D-SUB PLG 13POS PNL MT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

627-13W3624-3N6

Active

EDAC Inc.

CONN D-SUB PLG 13POS PNL MT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627-13W3624-3N6

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	30 A, 5 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Shielded, Grounding Indents
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions [custom]	10
Number of Positions [custom]	3
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	13W3, 13C3, B, DB
Shell Size, Connector Layout	3
Termination	Solder
Voltage Rating	125 VDC

627-13W Series

...

Part	Features	Connector Type	Connector Style	Number of Rows	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish	Contact Type	Shell Size, Connector Layout	Shell Size, Connector Layout	Number of Positions [custom]	Number of Positions [custom]	Termination	Color	Dielectric Material	Contact Material	Contact Finish	Material Flammability Rating	Mounting Type	Current Rating (Amps)	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Number of Positions	Flange Feature [custom]	Flange Feature [custom]	Current Rating (Amps)	Number of Positions [custom]	Number of Positions [custom]
EDAC Inc. 627-13W3624-1N1	Grounding Indents Shielded	Male Pins Plug	Combo D-Sub	2	125 VDC	0.76 Ám	30 Áin	Nickel Plated Steel	Signal and Power	13C3 13W3 B DB	3	10	3	Solder	Black	Polyester Thermoplastic	Copper Alloy	Gold	UL94 V-0	Through Hole	10A 5A	Housing/Shell (Unthreaded)	-55 °C	125 °C
EDAC Inc. 627-13W6224-4NC	Grounding Indents Shielded	Male Pins Plug	Combo D-Sub	2	125 VDC			Nickel Plated Steel	Signal and Power	13W6 4 (DC C)			6	Solder	Black	Polyester Thermoplastic	Copper Alloy	Gold	UL94 V-0	Panel Mount Through Hole			-55 °C	125 °C	Flash	13	M3	M3	5 A 40 A
EDAC Inc. 627-13W3624-7TE	Board Lock Grounding Indents Shielded	Male Pins Plug	Combo D-Sub	2	125 VDC	0.76 Ám	30 Áin		Coax Signal	13C3 13W3 B DB	3			Solder	Black	Polyester Thermoplastic	Copper Alloy	Gold	UL94 V-0	Panel Mount Through Hole		M3	-55 °C	125 °C						10	3
EDAC Inc. 627-13W3624-5T6	Board Lock Grounding Indents Shielded	Male Pins Plug	Combo D-Sub	2	125 VDC	0.76 Ám	30 Áin		Coax Signal	13C3 13W3 B DB	3			Solder	Black	Polyester Thermoplastic	Copper Alloy	Gold	UL94 V-0	Panel Mount Through Hole		4-40	-55 °C	125 °C						10	3
EDAC Inc. 627-13W6624-4TD	Board Lock Grounding Indents Shielded	Male Pins Plug	Combo D-Sub	2	125 VDC	0.76 Ám	30 Áin		Signal and Power	13W6 4 (DC C)			6	Solder	Black	Polyester Thermoplastic	Copper Alloy	Gold	UL94 V-0	Through Hole		Board Side (M3)	-55 °C	125 °C		13			5 A 40 A
EDAC Inc. 627-13W3624-7T4	Grounding Indents Shielded	Male Pins Plug	Combo D-Sub	2	125 VDC	0.76 Ám	30 Áin		Coax Signal	13C3 13W3 B DB	3			Solder	Black	Polyester Thermoplastic	Copper Alloy	Gold	UL94 V-0	Panel Mount Through Hole		4-40	-55 °C	125 °C						10	3
EDAC Inc. 627-13W3624-7N6	Board Lock Grounding Indents Shielded	Male Pins Plug	Combo D-Sub	2	125 VDC	0.76 Ám	30 Áin	Nickel Plated Steel	Coax Signal	13C3 13W3 B DB	3			Solder	Black	Polyester Thermoplastic	Copper Alloy	Gold	UL94 V-0	Panel Mount Through Hole		4-40	-55 °C	125 °C						10	3
EDAC Inc. 627-13W3624-5T4	Grounding Indents Shielded	Male Pins Plug	Combo D-Sub	2	125 VDC	0.76 Ám	30 Áin		Coax Signal	13C3 13W3 B DB	3			Solder	Black	Polyester Thermoplastic	Copper Alloy	Gold	UL94 V-0	Panel Mount Through Hole		4-40	-55 °C	125 °C						10	3
EDAC Inc. 627-13W3224-1T3	Grounding Indents Shielded	Male Pins Plug	Combo D-Sub	2	125 VDC				Signal and Power	13C3 13W3 B DB	3	10	3	Solder	Black	Polyester Thermoplastic	Copper Alloy	Gold	UL94 V-0	Panel Mount Through Hole	10A 5A	4-40 Board Side	-55 °C	125 °C	Flash
EDAC Inc. 627-13W3624-3N6	Board Lock Grounding Indents Shielded	Male Pins Plug	Combo D-Sub	2	125 VDC	0.76 Ám	30 Áin	Nickel Plated Steel	Signal and Power	13C3 13W3 B DB	3	10	3	Solder	Black	Polyester Thermoplastic	Copper Alloy	Gold	UL94 V-0	Panel Mount Through Hole		4-40	-55 °C	125 °C					5 A 30 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 16.79

Description

General part information

627-13W Series

13 (10 + 3 Power) Position D-Sub, Combo Plug, Male Pins Connector
