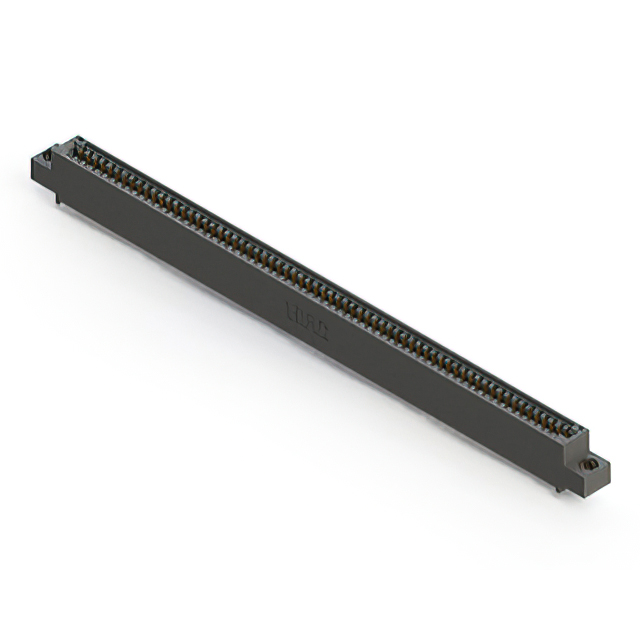

895-067-521-407
ActiveEDAC Inc.
CONN EDGE SINGLE FML 67POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
895-067-521-407
ActiveEDAC Inc.
CONN EDGE SINGLE FML 67POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 895-067-521-407 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | M3, Threaded Insert, Top Mount Opening |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 67 |
| Number of Positions/Bay/Row [custom] | 67 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
895-067 Series
...
| Part | Color | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Contact Material | Card Type | Contact Finish | Number of Positions | Termination Rows | Gender | Termination | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Rows | Read Out | Contact Type | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Black | 67 | 2.54 mm | 0.1 in | Copper Alloy | Non Specified - Single Edge | Gold | 67 | 1 | Female | Solder | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 1 | Single | Cantilever | ||
EDAC Inc. | Black | 67 | 2.54 mm | 0.1 in | Copper Alloy | Non Specified - Single Edge | Gold | 67 | 1 | Female | Solder | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | 1 | Single | Cantilever | ||||
EDAC Inc. | Black | 67 | 2.54 mm | 0.1 in | Copper Alloy | Non Specified - Single Edge | Gold | 67 | 1 | Female | Wire Wrap | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | 1 | Single | Cantilever | ||||
EDAC Inc. | Black | 67 | 2.54 mm | 0.1 in | Copper Alloy | Non Specified - Single Edge | Gold | 67 | 1 | Female | Solder | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | 1 | Single | Cantilever | 3.25 mm | 0.128 in | ||
EDAC Inc. | Black | 67 | 2.54 mm | 0.1 in | Copper Alloy | Non Specified - Single Edge | Gold | 67 | 1 | Female | Solder | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | M3 Threaded Insert Top Mount Opening | 1 | Single | Cantilever | ||||
EDAC Inc. | Black | 67 | 2.54 mm | 0.1 in | Copper Alloy | Non Specified - Single Edge | Gold | 67 | 1 | Female | Wire Wrap | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 1 | Single | Cantilever | ||
EDAC Inc. | Black | 67 | 2.54 mm | 0.1 in | Copper Alloy | Non Specified - Single Edge | Gold | 67 | 1 | Female | Wire Wrap | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | 1 | Single | Cantilever | ||
EDAC Inc. | Black | 67 | 2.54 mm | 0.1 in | Copper Alloy | Non Specified - Single Edge | Gold | 67 | 1 | Female | Solder | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | M3 Threaded Insert Top Mount Opening | 1 | Single | Cantilever | ||||
EDAC Inc. | Black | 67 | 2.54 mm | 0.1 in | Copper Alloy | Non Specified - Single Edge | Gold | 67 | 1 | Female | Solder | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | 1 | Single | Cantilever | ||
EDAC Inc. | Black | 67 | 2.54 mm | 0.1 in | Copper Alloy | Non Specified - Single Edge | Gold | 67 | 1 | Female | Solder | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 10 Áin | 0.25 Ám | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 1 | Single | Cantilever |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 149.12 | |
Description
General part information
895-067 Series
67 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
