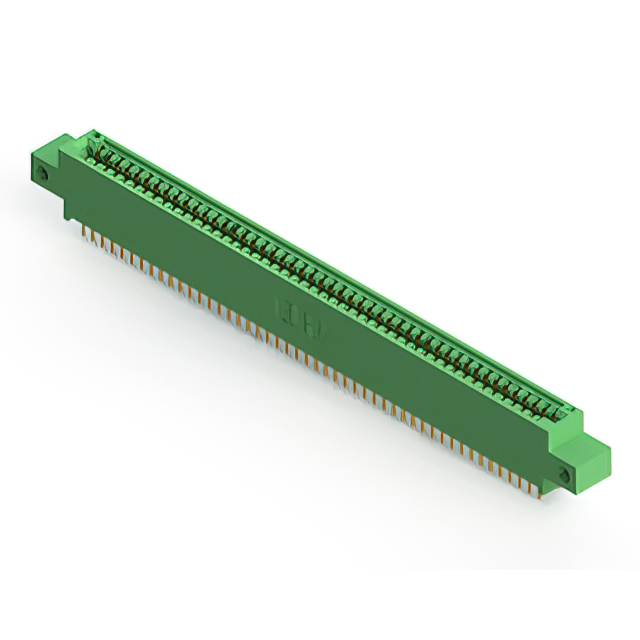

345-096-525-812
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 96POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
345-096-525-812
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 96POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-096-525-812 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 96 |
| Number of Positions/Bay/Row [custom] | 48 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
345-096 Series
...
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Contact Material | Card Type | Number of Positions | Pitch [x] | Pitch [x] | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Number of Positions/Bay/Row [custom] | Mounting Type | Color | Termination | Contact Finish | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Termination Rows | Gender | Features | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | 96 | 2.54 mm | 0.1 in | Dual | -40 °C | 105 ░C | 2 | 48 | Through Hole | Green | Solder | Gold | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Cantilever | 2 | Female | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | 96 | 2.54 mm | 0.1 in | Dual | -40 °C | 105 ░C | 2 | 48 | Through Hole | Green | Solder | Gold | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Cantilever | 2 | Female | Card Guides | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | 96 | 2.54 mm | 0.1 in | Dual | -40 °C | 105 ░C | 2 | 48 | Through Hole | Green | Wire Wrap | Gold | Floating Bobbin Flush Mount | 10 Áin | 0.25 Ám | Cantilever | 2 | Female | 0.116 in | 2.95 mm | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | 96 | 2.54 mm | 0.1 in | Dual | -40 °C | 105 ░C | 2 | 48 | Through Hole | Green | Solder Eyelet(s) | Gold | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Cantilever | 2 | Female | Card Guides | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | 96 | 2.54 mm | 0.1 in | Dual | -40 °C | 105 ░C | 2 | 48 | Through Hole | Green | Wire Wrap | Gold | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Cantilever | 2 | Female | Card Guides | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | 96 | 2.54 mm | 0.1 in | Dual | -40 °C | 105 ░C | 2 | 48 | Through Hole | Green | Solder | Gold | Side Mount Opening Unthreaded | 10 Áin | 0.25 Ám | Cantilever | 2 | Female | 3.25 mm | 0.128 in | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | 96 | 2.54 mm | 0.1 in | Dual | -40 °C | 105 ░C | 2 | 48 | Through Hole | Green | Solder | Gold | M3 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Cantilever | 2 | Female | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | 96 | 2.54 mm | 0.1 in | Dual | -40 °C | 105 ░C | 2 | 48 | Board Edge Straddle Mount | Green | Solder Eyelet(s) | Gold | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Cantilever | 2 | Female | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | 96 | 2.54 mm | 0.1 in | Dual | -40 °C | 105 ░C | 2 | 48 | Through Hole | Green | Solder | Gold | 10 Áin | 0.25 Ám | Cantilever | 2 | Female | ||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Copper Alloy | Non Specified - Dual Edge | 96 | 2.54 mm | 0.1 in | Dual | -40 °C | 105 ░C | 2 | 48 | Board Edge Straddle Mount | Green | Solder | Gold | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | Cantilever | 2 | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 14.67 | |
Description
General part information
345-096 Series
96 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
