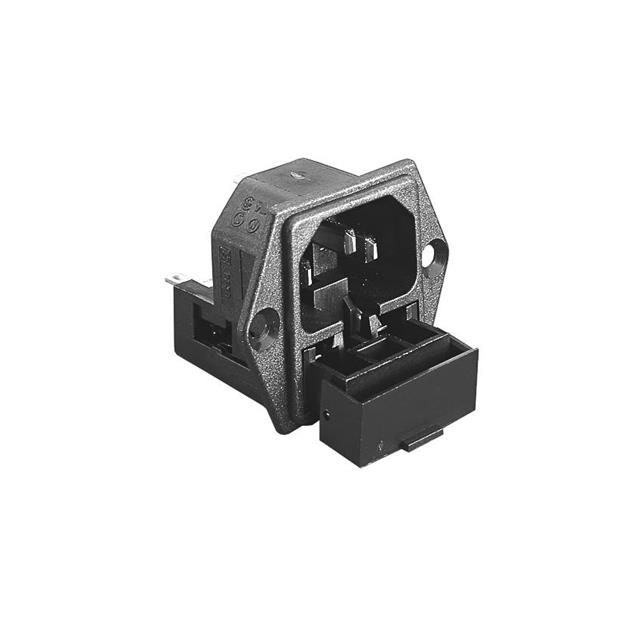

PF0030/28

Active

BULGIN LIMITED

FUSED INLET, 2 POLE, 10A, QC, FLANGE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

BULGIN LIMITED

FUSED INLET, 2 POLE, 10A, QC, FLANGE ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	PF0030/28

Accomodates a Fuse	True
Approval Agency	CSA, UL
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Twin Fused
Fuse Holder, Drawer	True
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	27.3 mm
Panel Cutout Dimensions [y]	31.12 mm
Termination	Solder
Voltage Rating - Appliance Inlet	250 VAC

Part	Filter Type	Fuse Holder, Drawer	Fuse Holder, Drawer	Termination	Material Flammability Rating	Current Rating - Appliance Inlet	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Connector Type	Accomodates a Fuse	Connector Style	Voltage Rating - Appliance Inlet	Approval Agency
BULGIN LIMITED PF0030/28	Unfiltered - Commercial	Twin Fused		Solder	UL94 V-0	10 A	Flange Panel Mount	31.12 mm	27.3 mm	Receptacle Male Blades - Module		IEC 320-C14	250 VAC	CSA UL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
