14HTSP500

Active

Essentra Access Solutions

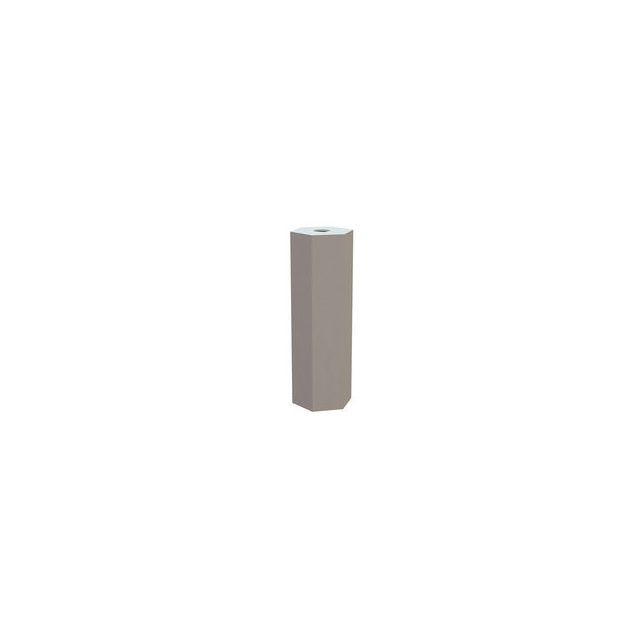

HEX THREADED STANDOFF, #6-32 THR

Deep-Dive with AI

Search across all available documentation for this part.

14HTSP500

Active

Essentra Access Solutions

HEX THREADED STANDOFF, #6-32 THR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	14HTSP500

Between Board Height [z]	1.625 in
Between Board Height [z]	41.28 mm
Color	Natural
Diameter - Outside [custom]	1/2" Hex
Diameter - Outside [diameter]	12.7 mm
Diameter - Outside [diameter]	0.5 in
Gender	Female
Length - Overall [x]	41.28 mm
Length - Overall [x]	1.625 in
Material	Nylon
Screw, Thread Size	#6-32
Threaded/Unthreaded	Threaded
Type	Hex Standoff

14HTSP Series

Part	Screw, Thread Size	Material	Color	Diameter - Outside [diameter]	Diameter - Outside [custom]	Between Board Height	Between Board Height	Between Board Height	Gender	Length - Overall [x]	Length - Overall [x]	Length - Overall [x]	Type	Threaded/Unthreaded	Length - Overall	Length - Overall	Length - Overall	Diameter - Outside	Diameter - Outside	Between Board Height [z]	Between Board Height [z]	Diameter - Outside [diameter]	Diameter - Outside [custom]
Essentra Access Solutions 14HTSP124	#4-40	Nylon	Natural	0.188 in 4.78 mm	0.1875 in	0.75 in	0.75 in	19.05 mm	Female	0.75 in	19.05 mm	0.75 in	Hex Standoff	Threaded
Essentra Access Solutions 14HTSP114	#2-56	Nylon	Natural	0.188 in 4.78 mm	0.1875 in	0.375 in	0.375 in	9.53 mm	Female				Hex Standoff	Threaded	0.375 in	9.53 mm	0.375 in
Essentra Access Solutions 14HTSP001	#4-40	Nylon	Natural		0.25 in	0.25 in	0.25 in	6.35 mm	Female	0.25 in	6.35 mm	0.25 in	Hex Standoff	Threaded				6.35 mm	0.25 in
Essentra Access Solutions 14HTSP107	#6-32	Nylon	Natural	0.188 in 4.78 mm	0.1875 in	0.375 in	0.375 in	9.53 mm	Female				Hex Standoff	Threaded	0.375 in	9.53 mm	0.375 in
Essentra Access Solutions 14HTSP500	#6-32	Nylon	Natural	12.7 mm					Female	1.625 in	41.28 mm		Hex Standoff	Threaded						1.625 in	41.28 mm	0.5 in	1/2" Hex
Essentra Access Solutions 14HTSP208	#6-32	Nylon	Natural		0.3125 in	0.5 in	0.5 in	12.7 mm	Female				Hex Standoff	Threaded	0.5 in	0.5 in	12.7 mm		0.313 in
Essentra Access Solutions 14HTSP102	#4-40	Nylon	Natural	0.188 in 4.78 mm	0.1875 in	0.375 in	0.375 in	9.53 mm	Female				Hex Standoff	Threaded	0.375 in	9.53 mm	0.375 in
Essentra Access Solutions 14HTSP023	#6-32	Nylon	Natural		0.25 in		1.25 in	31.75 mm	Female				Hex Standoff	Threaded	1.25 in		31.75 mm	6.35 mm	0.25 in
Essentra Access Solutions 14HTSP016	#4-40	Nylon	Natural		0.25 in	22.23 mm	0.875 in	0.875 in	Female				Hex Standoff	Threaded	0.875 in	0.875 in	22.23 mm	6.35 mm	0.25 in
Essentra Access Solutions 14HTSP101	#4-40	Nylon	Natural	0.188 in 4.78 mm	0.1875 in	0.25 in	0.25 in	6.35 mm	Female	0.25 in	6.35 mm	0.25 in	Hex Standoff	Threaded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.78
		5	$ 1.48
		10	$ 1.33
		25	$ 1.18
		50	$ 1.07
		100	$ 1.04

Description

General part information

14HTSP Series

Hex Standoff Threaded #6-32 Nylon 1.625" (41.28mm) Natural

Documents

Technical documentation and resources

No documents available
