307-028-540-201
ActiveEDAC Inc.

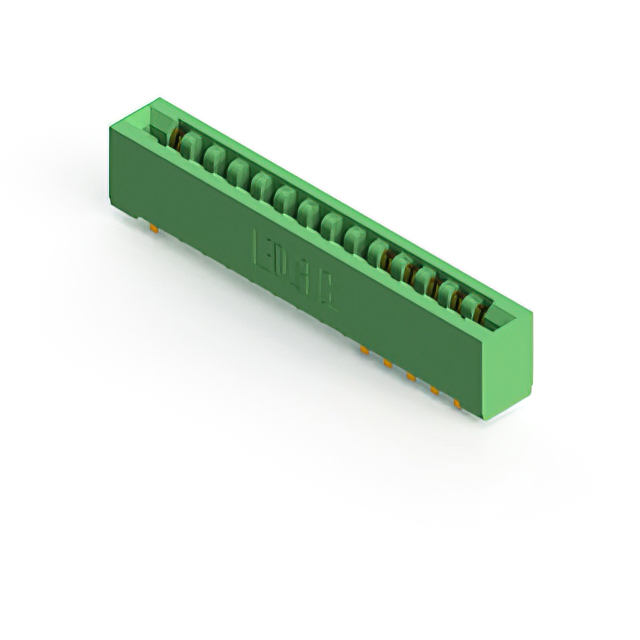

CONN EDGE DUAL FMALE 28POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
307-028-540-201
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 28POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 307-028-540-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 28 |
| Number of Positions/Bay/Row [custom] | 14 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
307-028 Series
...
| Part | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Contact Material | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Mounting Type | Gender | Contact Finish | Color | Number of Positions | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Termination Rows | Termination | Contact Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 14 | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Through Hole Right Angle | Female | Gold | Green | 28 | Non Specified - Dual Edge | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Solder Wire Wrap | Semi Bellows | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | |
EDAC Inc. | 0.156 in | 3.96 mm | 28 | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Through Hole | Female | Tin | Green | 56 | Non Specified - Dual Edge | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | Wire Wrap | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||||
EDAC Inc. | 0.156 in | 3.96 mm | 14 | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Board Edge Straddle Mount | Female | Tin | Green | 28 | Non Specified - Dual Edge | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Solder | Semi Bellows | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | |||
EDAC Inc. | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 14 | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Through Hole | Female | Gold | Green | 28 | Non Specified - Dual Edge | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Solder | Semi Bellows | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | |
EDAC Inc. | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 14 | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Board Edge Straddle Mount | Female | Gold | Green | 28 | Non Specified - Dual Edge | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Solder Eyelet(s) | Semi Bellows | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Card Extender |
EDAC Inc. | 0.156 in | 3.96 mm | 14 | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Board Edge Straddle Mount | Female | Tin | Green | 28 | Non Specified - Dual Edge | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Solder Eyelet(s) | Semi Bellows | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Card Extender | ||
EDAC Inc. | 0.156 in | 3.96 mm | 28 | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Through Hole Right Angle | Female | Tin | Green | 56 | Non Specified - Dual Edge | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | Solder | Semi Bellows | ||||||
EDAC Inc. | 0.156 in | 3.96 mm | 28 | Copper Alloy | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Through Hole | Female | Tin | Green | 28 | Non Specified - Single Edge | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | Solder | Semi Bellows | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | |||
EDAC Inc. | 0.156 in | 3.96 mm | 28 | Copper Alloy | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Through Hole | Female | Tin | Green | 28 | Non Specified - Single Edge | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | Wire Wrap | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||||
EDAC Inc. | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 14 | Copper Alloy | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Through Hole | Female | Gold | Green | 28 | Non Specified - Dual Edge | -40 °C | 105 ░C | Polyester Thermoplastic | 2 | Wire Wrap | Semi Bellows |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 10.65 | |
Description
General part information
307-028 Series
28 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
