YB16WRKW01-1F12-JF

Obsolete

NKK SWITCHES

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

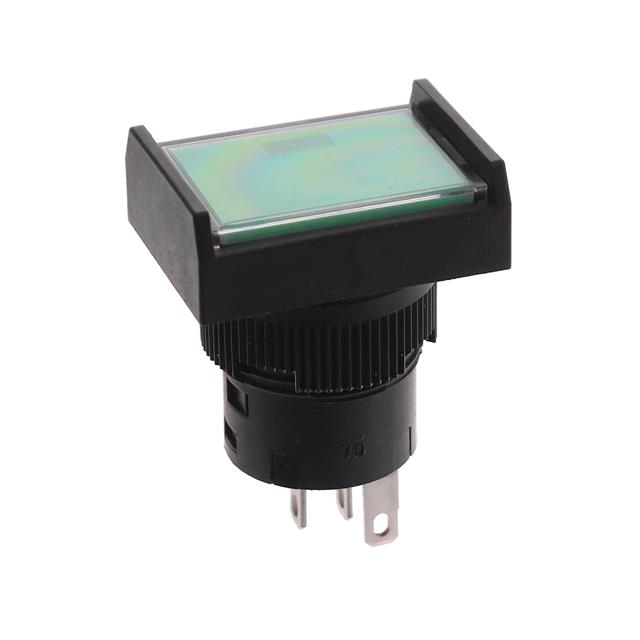

YB16WRKW01-1F12-JF

Obsolete

NKK SWITCHES

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.23
		10	$ 25.22
Newark	Each	1	$ 40.13
		5	$ 35.79
		10	$ 34.57
		25	$ 32.66
		50	$ 30.40
		100	$ 26.93
		250	$ 24.15

Description

General part information

YB16WR Series

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YB16WRKW01-1F12-JF	YB16WR Series

Actuator Marking	No Marking	No Marking
Actuator Type	Rectangular, Button	Rectangular, Button, Plunger for Cap
Circuit	SPDT	SPDT
Color - Actuator/Cap	Clear	Clear, Green, Clear (Red Filter/Diffuser)
Current Rating (Amps)	3 A	0.4 - 3 A
Electrical Life	100000 Cycles	100000 Cycles
Features	Tactile Feedback	Tactile Feedback
Illumination Type, Color	LED, Green	White, LED, Blue, Amber, Green, Green/Red, Red
Illumination Voltage (Nominal)	12 VDC	1.9 - 24 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	200000 Cycles	200000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	50 °C	50 - 70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16 mm	16 mm
Switch Function	On-On	On-On
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Quick Connect, Solder, Solder Lug
Termination Style	2.8 mm	2.8 mm
Type	Illuminated, Standard	Illuminated, Standard
Voltage Rating - AC	125 V	28 - 125 V
Voltage Rating - DC	30 V	28 - 30 V

YB16WR Series

SWITCH PUSHBUTTON SPDT 3A 125V

Part	Color - Actuator/Cap	Mechanical Life	Features	Mounting Type	Termination Style	Termination Style	Termination Style	Voltage Rating - DC	Switch Function	Electrical Life	Panel Cutout Dimensions [diameter]	Actuator Type	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Current Rating (Amps)	Ingress Protection	Illumination Voltage (Nominal)	Circuit	Type	Actuator Marking
NKK SWITCHES YB16WRKW01-6B-JB	Clear	200000 Cycles	Tactile Feedback	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	30 V	On-On	100000 Cycles	16 mm	Rectangular, Button	125 V	50 °C	-25 °C	LED, White	3 A	IP65 - Dust Tight, Water Resistant	3.3 VDC	SPDT	Illuminated, Standard	No Marking
NKK SWITCHES YB16WRKW01-6G-JB	Clear	200000 Cycles	Tactile Feedback	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	30 V	On-On	100000 Cycles	16 mm	Rectangular, Button	125 V	50 °C	-25 °C	Blue, LED	3 A	IP65 - Dust Tight, Water Resistant	3.6 VDC	SPDT	Illuminated, Standard	No Marking
NKK SWITCHES YB16WRKG01		200000 Cycles	Tactile Feedback	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	28 V	On-On	100000 Cycles	16 mm	Plunger for Cap	28 V	70 °C	-25 °C		0.4 VA	IP65 - Dust Tight, Water Resistant		SPDT	Standard	No Marking
NKK SWITCHES YB16WRKW01-FB	Green	200000 Cycles	Tactile Feedback	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	30 V	On-On	100000 Cycles	16 mm	Rectangular, Button	125 V	70 °C	-25 °C		3 A	IP65 - Dust Tight, Water Resistant		SPDT	Standard	No Marking
NKK SWITCHES YB16WRKG01-5D24-JD	Clear	200000 Cycles	Tactile Feedback	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	28 V	On-On	100000 Cycles	16 mm	Rectangular, Button	28 V	50 °C	-25 °C	Amber, LED	0.4 VA	IP65 - Dust Tight, Water Resistant	24 V	SPDT	Illuminated, Standard	No Marking
NKK SWITCHES YB16WRKG01-5F-JF	Clear	200000 Cycles	Tactile Feedback	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	28 V	On-On	100000 Cycles	16 mm	Rectangular, Button	28 V	50 °C	-25 °C	Green, LED	0.4 VA	IP65 - Dust Tight, Water Resistant	2.2 VDC	SPDT	Illuminated, Standard	No Marking
NKK SWITCHES YB16WRKG01-2CF05-JB	Clear	200000 Cycles	Tactile Feedback	Panel Mount, Front		Solder Lug		28 V	On-On	100000 Cycles	16 mm	Rectangular, Button	28 V	70 °C	-25 °C	Green/Red, LED	0.4 VA	IP65 - Dust Tight, Water Resistant	5 VDC	SPDT	Illuminated, Standard	No Marking
NKK SWITCHES YB16WRKW01-1CF02-JB	Clear	200000 Cycles	Tactile Feedback	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	30 V	On-On	100000 Cycles	16 mm	Rectangular, Button	125 V	50 °C	-25 °C	Green/Red, LED	3 A	IP65 - Dust Tight, Water Resistant	2 VDC	SPDT	Illuminated, Standard	No Marking
NKK SWITCHES YB16WRKG01-5D-JD	Clear	200000 Cycles	Tactile Feedback	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	28 V	On-On	100000 Cycles	16 mm	Rectangular, Button	28 V	50 °C	-25 °C	Amber, LED	0.4 VA	IP65 - Dust Tight, Water Resistant	2 VDC	SPDT	Illuminated, Standard	No Marking
NKK SWITCHES YB16WRKW01-1F12-JF	Clear	200000 Cycles	Tactile Feedback	Panel Mount, Front	0.11 in	Quick Connect, Solder	2.8 mm	30 V	On-On	100000 Cycles	16 mm	Rectangular, Button	125 V	50 °C	-25 °C	Green, LED	3 A	IP65 - Dust Tight, Water Resistant	12 VDC	SPDT	Illuminated, Standard	No Marking
