887-038-521-603

Active

EDAC Inc.

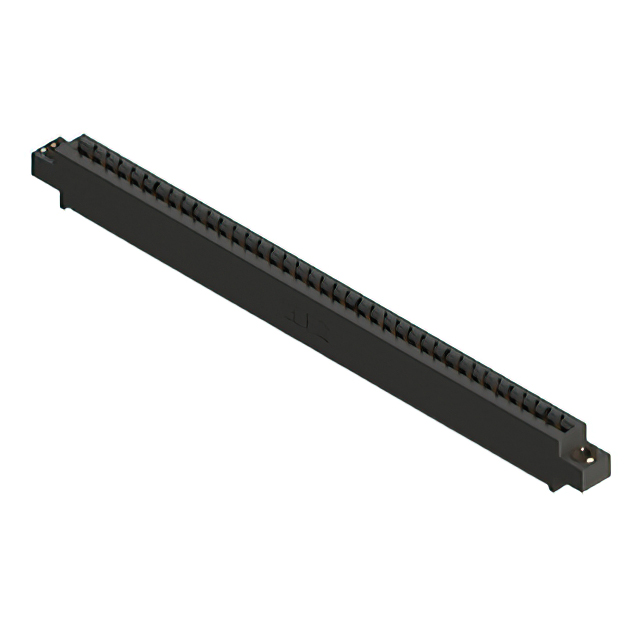

CARD EDGE CONNECTOR, 38 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.116, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

887-038-521-603

Active

EDAC Inc.

CARD EDGE CONNECTOR, 38 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.116, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	887-038-521-603

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Floating Bobbin
Flange Feature [diameter]	2.95 mm
Flange Feature [diameter]	0.116 in
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	38
Number of Positions/Bay/Row [custom]	38
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

887-038 Series

...

Part	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Color	Termination Rows	Gender	Pitch [x]	Pitch [x]	Contact Material	Material - Insulation	Number of Positions/Bay/Row [custom]	Number of Rows	Contact Type	Mounting Type	Read Out	Contact Finish	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination	Number of Positions	Card Type	Features	Flange Feature	Flange Feature
EDAC Inc. 887-038-540-804	10 Áin	0.25 Ám	125 °C	-40 °C	0.156 in	Top Mount Opening Unthreaded	3.96 mm	Black	2	Female	0.156 in	3.96 mm	Copper Alloy	Polyphenylene Sulfide (PPS)	19	2	Cantilever	Through Hole	Dual	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Wire Wrap	38	Non Specified - Dual Edge
EDAC Inc. 887-038-558-212	10 Áin	0.25 Ám	125 °C	-40 °C	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Black	2	Female	0.156 in	3.96 mm	Copper Alloy	Polyphenylene Sulfide (PPS)	19	2	Cantilever	Through Hole Right Angle	Dual	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	38	Non Specified - Dual Edge
EDAC Inc. 887-038-556-807	10 Áin	0.25 Ám	125 °C	-40 °C		M3 Threaded Insert Top Mount Opening		Black	2	Female	0.156 in	3.96 mm	Copper Alloy	Polyphenylene Sulfide (PPS)	19	2	Cantilever	Board Edge Straddle Mount	Dual	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	38	Non Specified - Dual Edge	Card Extender
EDAC Inc. 887-038-555-804	10 Áin	0.25 Ám	125 °C	-40 °C	0.156 in	Top Mount Opening Unthreaded	3.96 mm	Black	2	Female	0.156 in	3.96 mm	Copper Alloy	Polyphenylene Sulfide (PPS)	19	2	Cantilever	Board Edge Straddle Mount	Dual	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	38	Non Specified - Dual Edge	Card Extender
EDAC Inc. 887-038-524-103	10 Áin	0.25 Ám	125 °C	-40 °C	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Black	1	Female	0.156 in	3.96 mm	Copper Alloy	Polyphenylene Sulfide (PPS)	38	1	Cantilever	Through Hole	Single	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	38	Non Specified - Single Edge
EDAC Inc. 887-038-521-603	10 Áin	0.25 Ám	125 °C	-40 °C	0.116 in	Floating Bobbin Top Mount Opening	2.95 mm	Black	1	Female	0.156 in	3.96 mm	Copper Alloy	Polyphenylene Sulfide (PPS)	38	1	Cantilever	Through Hole	Single	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	38	Non Specified - Single Edge
EDAC Inc. 887-038-521-204	10 Áin	0.25 Ám	125 °C	-40 °C	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Black	2	Female	0.156 in	3.96 mm	Copper Alloy	Polyphenylene Sulfide (PPS)	19	2	Cantilever	Through Hole	Dual	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	38	Non Specified - Dual Edge
EDAC Inc. 887-038-523-203	10 Áin	0.25 Ám	125 °C	-40 °C	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Black	2	Female	0.156 in	3.96 mm	Copper Alloy	Polyphenylene Sulfide (PPS)	19	2	Cantilever	Through Hole	Dual	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	38	Non Specified - Dual Edge
EDAC Inc. 887-038-521-808	10 Áin	0.25 Ám	125 °C	-40 °C		4-40 Threaded Insert Top Mount Opening		Black	2	Female	0.156 in	3.96 mm	Copper Alloy	Polyphenylene Sulfide (PPS)	19	2	Cantilever	Through Hole	Dual	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	38	Non Specified - Dual Edge
EDAC Inc. 887-038-521-602	10 Áin	0.25 Ám	125 °C	-40 °C				Black	1	Female	0.156 in	3.96 mm	Copper Alloy	Polyphenylene Sulfide (PPS)	38	1	Cantilever	Through Hole	Single	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	38	Non Specified - Single Edge		3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 70.22

Description

General part information

887-038 Series

38 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
