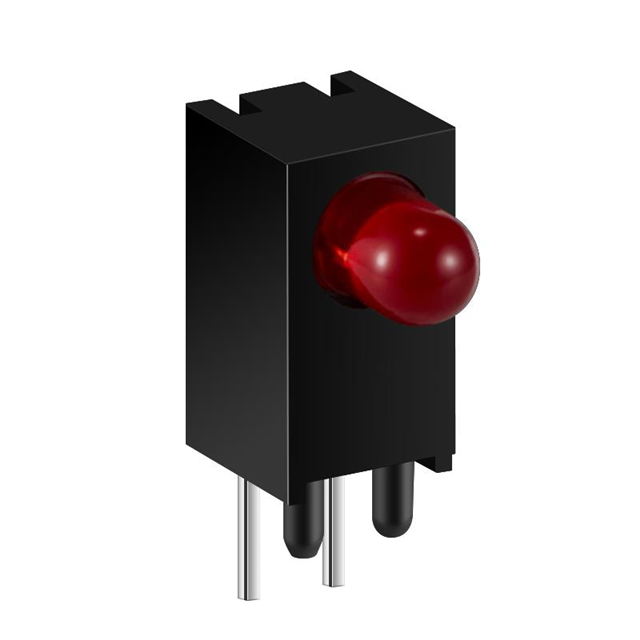

XPV1LUR11D
ActiveSunLED
LED CBI 2.9MM RED RA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XPV1LUR11D
ActiveSunLED
LED CBI 2.9MM RED RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XPV1LUR11D |
|---|---|
| Color | Red |
| Configuration | Single |
| Current | 10 mA |
| Lens Size [diameter] | 2.9 mm |
| Lens Style | Round with Domed Top |
| Lens Type | Diffused, Red |
| Millicandela Rating | 19 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 50 ° |
| Voltage Rating | 1.9 V |
| Wavelength - Peak | 627 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.16 | |
Description
General part information
XPV1LUR11 Series
LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Red 1.9V 10mA Round with Domed Top 2.90mm Dia Through Hole, Right Angle
Documents
Technical documentation and resources
