XAP-09V-1

Active

JST Sales America Inc.

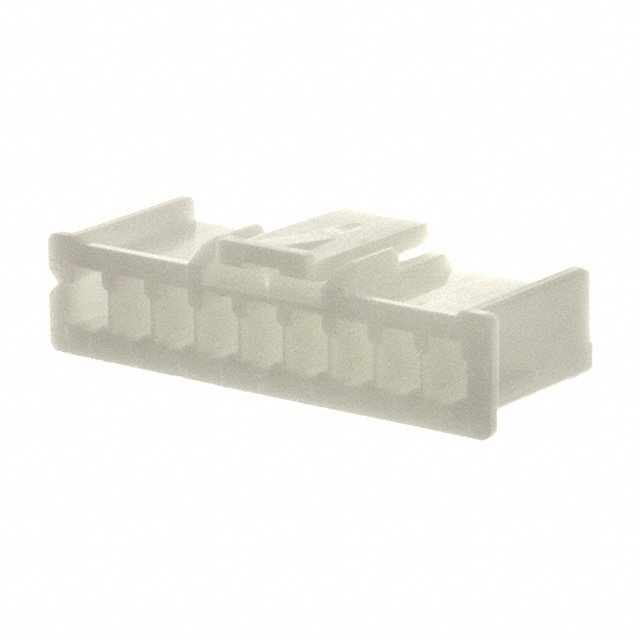

CONN RCPT HSG 9POS 2.50MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJST Prefix Suffix Chart Datasheet

XAP-09V-1

Active

JST Sales America Inc.

CONN RCPT HSG 9POS 2.50MM

Deep-Dive with AI

DocumentsJST Prefix Suffix Chart Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XAP-09V-1	XAP Series

Color	Natural	Natural
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Lock
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	9	4 - 20
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch [x]	0.098 in	0.098 in
Pitch [x]	2.5 mm	2.5 mm

XAP Series

CONN RCPT HSG 14POS 2.50MM

Part	Fastening Type	Number of Positions	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Note	Mounting Type	Contact Type	Contact Termination	Connector Type	Insulation Material	Color	Pitch [x]	Pitch [x]
JST Sales America Inc. XAP-14V-1	Latch Lock	14	1	-25 °C	85 °C	Contacts Not Included	Free Hanging (In-Line)	Female Socket	Crimp	Receptacle	Polyamide (PA66), Nylon 6/6	Natural	0.098 in	2.5 mm
JST Sales America Inc. XAP-20V-1	Latch Lock	20	1	-25 °C	85 °C	Contacts Not Included	Free Hanging (In-Line)	Female Socket	Crimp	Receptacle	Polyamide (PA66), Nylon 6/6	Natural	0.098 in	2.5 mm
JST Sales America Inc. XAP-15V-1	Latch Lock	15	1	-25 °C	85 °C	Contacts Not Included	Free Hanging (In-Line)	Female Socket	Crimp	Receptacle	Polyamide (PA66), Nylon 6/6	Natural	0.098 in	2.5 mm
JST Sales America Inc. XAP-03V-1	Latch Lock		1	-25 °C	85 °C	Contacts Not Included	Free Hanging (In-Line)	Female Socket	Crimp	Receptacle	Polyamide (PA66), Nylon 6/6	Natural	0.098 in	2.5 mm
JST Sales America Inc. XAP-13V-1	Latch Lock	13	1	-25 °C	85 °C	Contacts Not Included	Free Hanging (In-Line)	Female Socket	Crimp	Receptacle	Polyamide (PA66), Nylon 6/6	Natural	0.098 in	2.5 mm
JST Sales America Inc. XAP-10V-1	Latch Lock	10	1	-25 °C	85 °C	Contacts Not Included	Free Hanging (In-Line)	Female Socket	Crimp	Receptacle	Polyamide (PA66), Nylon 6/6	Natural	0.098 in	2.5 mm
JST Sales America Inc. XAP-07V-1	Latch Lock	7	1	-25 °C	85 °C	Contacts Not Included	Free Hanging (In-Line)	Female Socket	Crimp	Receptacle	Polyamide (PA66), Nylon 6/6	Natural	0.098 in	2.5 mm
JST Sales America Inc. XAP-11V-1	Latch Lock	11	1	-25 °C	85 °C	Contacts Not Included	Free Hanging (In-Line)	Female Socket	Crimp	Receptacle	Polyamide (PA66), Nylon 6/6	Natural	0.098 in	2.5 mm
JST Sales America Inc. XAP-12V-1	Latch Lock	12	1	-25 °C	85 °C	Contacts Not Included	Free Hanging (In-Line)	Female Socket	Crimp	Receptacle	Polyamide (PA66), Nylon 6/6	Natural	0.098 in	2.5 mm
JST Sales America Inc. XAP-05V-1	Latch Lock		1	-25 °C	85 °C	Contacts Not Included	Free Hanging (In-Line)	Female Socket	Crimp	Receptacle	Polyamide (PA66), Nylon 6/6	Natural	0.098 in	2.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.28
		10	$ 0.24
		25	$ 0.21
		50	$ 0.20
		100	$ 0.18
		250	$ 0.16
		500	$ 0.16
		1000	$ 0.13
		2500	$ 0.12

Description

General part information

XAP Series

9 Rectangular Connectors - Housings Receptacle Natural 0.098" (2.50mm)

Documents

Technical documentation and resources

JST Prefix Suffix Chart

Datasheet
