PT02A-20-16P(025)
ActiveAmphenol Industrial Operations

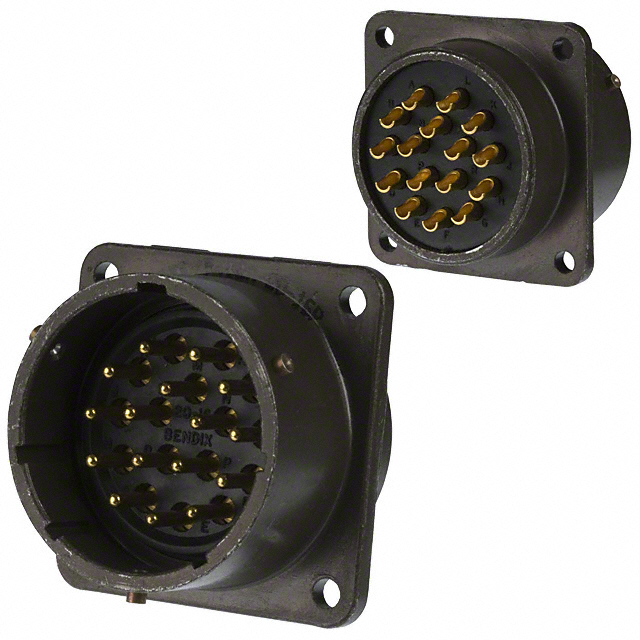

CONN RCPT MALE 16P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
PT02A-20-16P(025)
ActiveAmphenol Industrial Operations
CONN RCPT MALE 16P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PT02A-20-16P(025) | PT02A Series |
|---|---|---|
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial, Communication Systems |
| Backshell Material, Plating | Black Zinc Cobalt, Aluminum | Olive Drab Cadmium, Aluminum, Black Zinc Cobalt, Electroless Nickel |
| Color | Black | Olive Drab, Black, Silver |
| Connector Type | Receptacle, Male Pins | Receptacle, Female Sockets, Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | - | 13 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Flange | Flange |
| Number of Positions | 16 | 16 |
| Number of Positions | - | 2 - 55 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N, X, W, Z |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Black Zinc Cobalt | Olive Drab Chromate over Cadmium, Black Zinc Cobalt, Electroless Nickel |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | - | 10-6, 8-4, 8-2, 12-8, 8-80, 8-3, 10-5, 12-4, 12-3, 14-5, 14-12 |
| Shell Size - Insert | - | 14 - 55 |
| Shell Size - Insert | - | 12 - 22 |
| Shell Size - Insert [Max] [diameter] | 20 | 20 |
| Shell Size - Insert [Min] [diameter] | 16 | 16 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | - | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.30 | |
| 10 | $ 24.07 | |||
PT02A Series
CONN RCPT FMALE 6P GOLD SLDR CUP
| Part | Shielding | Backshell Material, Plating | Contact Finish - Mating | Contact Material | Shell Material | Orientation | Insert Material | Connector Type | Color | Applications | Mounting Feature | Qualification | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Shell Size - Insert | Primary Material | Shell Finish | Voltage Rating | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Shell Size - Insert [Max] [diameter] | Shell Size - Insert [Min] [diameter] | Number of Positions | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations PT02A-10-6S | Unshielded | Aluminum, Olive Drab Cadmium | Gold | Copper Alloy | Aluminum | N | Neoprene | Receptacle, Female Sockets | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 6 | 10-6 | Metal | Olive Drab Chromate over Cadmium | |||||||
Amphenol Industrial Operations PT02A8-4P-025 | Unshielded | Aluminum, Black Zinc Cobalt | Gold | Copper Alloy | Aluminum | N | Neoprene | Male Pins, Receptacle | Black | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 4 | 8-4 | Metal | Black Zinc Cobalt | 600 VAC | ||||||
Amphenol Industrial Operations PT02A18-32PX-027 | Unshielded | Aluminum, Black Zinc Cobalt | Gold | Copper Alloy | Aluminum | X | Neoprene | Male Pins, Receptacle | Black | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | Metal | Black Zinc Cobalt | 32 | 18 | |||||||
Amphenol Industrial Operations PT02A22-55SW | Unshielded | Aluminum, Olive Drab Cadmium | Gold | Copper Alloy | Aluminum | W | Neoprene | Receptacle, Female Sockets | Olive Drab | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 55 positions | Metal | Olive Drab Chromate over Cadmium | 55 | 22 | ||||||
Amphenol Industrial Operations PT02A-16-8S(025) | Unshielded | Aluminum, Black Zinc Cobalt | Gold | Copper Alloy | Aluminum | N | Neoprene | Receptacle, Female Sockets | Black | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 8 | Metal | Black Zinc Cobalt | ||||||||
Amphenol Industrial Operations PT02A8-2P-025 | Unshielded | Aluminum, Black Zinc Cobalt | Gold | Copper Alloy | Aluminum | N | Neoprene | Male Pins, Receptacle | Black | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 2 | 8-2 | Metal | Black Zinc Cobalt | 600 VAC | ||||||
Amphenol Industrial Operations PT02A18-32PZ-027 | Unshielded | Aluminum, Black Zinc Cobalt | Gold | Copper Alloy | Aluminum | Z | Neoprene | Male Pins, Receptacle | Black | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | Metal | Black Zinc Cobalt | 32 | 18 | |||||||
Amphenol Industrial Operations PT02A-12-8P | Unshielded | Aluminum, Olive Drab Cadmium | Gold | Copper Alloy | Aluminum | N | Neoprene | Male Pins, Receptacle | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 8 | 12-8 | Metal | Olive Drab Chromate over Cadmium | |||||||
Amphenol Industrial Operations PT02A-16-26S | Unshielded | Aluminum, Olive Drab Cadmium | Gold | Copper Alloy | Aluminum | N | Neoprene | Receptacle, Female Sockets | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 26 | Metal | Olive Drab Chromate over Cadmium | 26 | 16 | ||||||
Amphenol Industrial Operations PT02A-14-15S | Unshielded | Aluminum, Olive Drab Cadmium | Gold | Copper Alloy | Aluminum | N | Neoprene | Receptacle, Female Sockets | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 15 | Metal | Olive Drab Chromate over Cadmium | 15 | 14 | ||||||
Amphenol Industrial Operations PT02A-14-18P(025) | Unshielded | Aluminum, Black Zinc Cobalt | Gold | Copper Alloy | Aluminum | N | Neoprene | Male Pins, Receptacle | Black | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 18 | Metal | Black Zinc Cobalt | 18 | 14 | ||||||
Amphenol Industrial Operations PT02A-22-55P(025) | Unshielded | Aluminum, Black Zinc Cobalt | Gold | Copper Alloy | Aluminum | N | Neoprene | Male Pins, Receptacle | Black | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 55 positions | Metal | Black Zinc Cobalt | 55 | 22 | ||||||
Amphenol Industrial Operations PT02A-14-18P | Unshielded | Aluminum, Olive Drab Cadmium | Gold | Copper Alloy | Aluminum | N | Neoprene | Male Pins, Receptacle | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 18 | Metal | Olive Drab Chromate over Cadmium | 18 | 14 | ||||||
Amphenol Industrial Operations PT02A-8-80S | Unshielded | Aluminum, Olive Drab Cadmium | Gold | Copper Alloy | Aluminum | N | Neoprene | Receptacle, Female Sockets | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 4 | 8-80 | Metal | Olive Drab Chromate over Cadmium | |||||||
Amphenol Industrial Operations PT02A8-4P-027 | Unshielded | Aluminum, Black Zinc Cobalt | Gold | Copper Alloy | Aluminum | N | Neoprene | Male Pins, Receptacle | Black | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 4 | 8-4 | Metal | Black Zinc Cobalt | |||||||
Amphenol Industrial Operations PT02A-8-3P | Unshielded | Aluminum, Olive Drab Cadmium | Gold | Copper Alloy | Aluminum | N | Neoprene | Male Pins, Receptacle | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 8-3 | Metal | Olive Drab Chromate over Cadmium | ||||||||
Amphenol Industrial Operations PT02A-10-5P | Unshielded | Aluminum, Olive Drab Cadmium | Gold | Copper Alloy | Aluminum | N | Neoprene | Male Pins, Receptacle | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 10-5 | Metal | Olive Drab Chromate over Cadmium | ||||||||
Amphenol Industrial Operations PT02A12-4P-025 | Unshielded | Aluminum, Black Zinc Cobalt | Gold | Copper Alloy | Aluminum | N | Neoprene | Male Pins, Receptacle | Black | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 4 | 12-4 | Metal | Black Zinc Cobalt | 600 VAC | ||||||
Amphenol Industrial Operations PT02A-10-6P(025) | Unshielded | Aluminum, Black Zinc Cobalt | Gold | Copper Alloy | Aluminum | N | Neoprene | Male Pins, Receptacle | Black | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 6 | 10-6 | Metal | Black Zinc Cobalt | |||||||
Amphenol Industrial Operations PT02A-20-16P(025) | Unshielded | Aluminum, Black Zinc Cobalt | Gold | Copper Alloy | Aluminum | N | Neoprene | Male Pins, Receptacle | Black | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | Metal | Black Zinc Cobalt | 20 | 16 | 16 | ||||||
Amphenol Industrial Operations PT02A-22-55S | Unshielded | Aluminum, Olive Drab Cadmium | Gold | Copper Alloy | Aluminum | N | Neoprene | Receptacle, Female Sockets | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 55 positions | Metal | Olive Drab Chromate over Cadmium | 55 | 22 | ||||||
Amphenol Industrial Operations PT02A-12-3P(025) | Unshielded | Aluminum, Black Zinc Cobalt | Gold | Copper Alloy | Aluminum | N | Neoprene | Male Pins, Receptacle | Black | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 12-3 | Metal | Black Zinc Cobalt | ||||||||
Amphenol Industrial Operations PT02A-8-2S | Unshielded | Aluminum, Olive Drab Cadmium | Gold | Copper Alloy | Aluminum | N | Neoprene | Receptacle, Female Sockets | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 2 | 8-2 | Metal | Olive Drab Chromate over Cadmium | |||||||
Amphenol Industrial Operations PT02A-14-5S(025) | Unshielded | Aluminum, Black Zinc Cobalt | Gold | Copper Alloy | Aluminum | N | Neoprene | Receptacle, Female Sockets | Black | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 14-5 | Metal | Black Zinc Cobalt | ||||||||
Amphenol Industrial Operations PT02A-14-12P | Unshielded | Aluminum, Olive Drab Cadmium | Gold | Copper Alloy | Aluminum | N | Neoprene | Male Pins, Receptacle | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 12 | 14-12 | Metal | Olive Drab Chromate over Cadmium | |||||||
Amphenol Industrial Operations PT02A-14-15P | Unshielded | Aluminum, Olive Drab Cadmium | Gold | Copper Alloy | Aluminum | N | Neoprene | Male Pins, Receptacle | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 15 | Metal | Olive Drab Chromate over Cadmium | 15 | 14 | ||||||
Amphenol Industrial Operations PT02A-12-8S(025) | Unshielded | Aluminum, Black Zinc Cobalt | Gold | Copper Alloy | Aluminum | N | Neoprene | Receptacle, Female Sockets | Black | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 8 | 12-8 | Metal | Black Zinc Cobalt | |||||||
Amphenol Industrial Operations PT02A-14-5P(025) | Unshielded | Aluminum, Black Zinc Cobalt | Gold | Copper Alloy | Aluminum | N | Neoprene | Male Pins, Receptacle | Black | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 14-5 | Metal | Black Zinc Cobalt | ||||||||
Amphenol Industrial Operations PT02A-14-12S(025) | Unshielded | Aluminum, Black Zinc Cobalt | Gold | Copper Alloy | Aluminum | N | Neoprene | Receptacle, Female Sockets | Black | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 12 | 14-12 | Metal | Black Zinc Cobalt | |||||||
Amphenol Industrial Operations PT02A16-8S-025 | Unshielded | Aluminum, Black Zinc Cobalt | Gold | Copper Alloy | Aluminum | N | Neoprene | Receptacle, Female Sockets | Black | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 8 | Metal | Black Zinc Cobalt | 13 A | |||||||
Amphenol Industrial Operations PT02A-12-8S | Unshielded | Aluminum, Olive Drab Cadmium | Gold | Copper Alloy | Aluminum | N | Neoprene | Receptacle, Female Sockets | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 8 | 12-8 | Metal | Olive Drab Chromate over Cadmium | |||||||
Amphenol Industrial Operations PT02A-14-5P | Unshielded | Aluminum, Olive Drab Cadmium | Gold | Copper Alloy | Aluminum | N | Neoprene | Male Pins, Receptacle | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 14-5 | Metal | Olive Drab Chromate over Cadmium | ||||||||
Amphenol Industrial Operations PT02A12-4P-027 | Unshielded | Aluminum, Black Zinc Cobalt | Gold | Copper Alloy | Aluminum | N | Neoprene | Male Pins, Receptacle | Black | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 4 | 12-4 | Metal | Black Zinc Cobalt | 600 VAC | ||||||
Amphenol Industrial Operations PT02A-12-3S(025) | Unshielded | Aluminum, Black Zinc Cobalt | Gold | Copper Alloy | Aluminum | N | Neoprene | Receptacle, Female Sockets | Black | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 12-3 | Metal | Black Zinc Cobalt | ||||||||
Amphenol Industrial Operations PT02A-12-10S | Unshielded | Aluminum, Olive Drab Cadmium | Gold | Copper Alloy | Aluminum | N | Neoprene | Receptacle, Female Sockets | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 10 | Metal | Olive Drab Chromate over Cadmium | ||||||||
Amphenol Industrial Operations PT02A-22-21S | Unshielded | Aluminum, Olive Drab Cadmium | Gold | Copper Alloy | Aluminum | N | Neoprene | Receptacle, Female Sockets | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 21 | Metal | Olive Drab Chromate over Cadmium | 21 | 22 | ||||||
Amphenol Industrial Operations PT02A-16-26P(025) | Unshielded | Aluminum, Black Zinc Cobalt | Gold | Copper Alloy | Aluminum | N | Neoprene | Male Pins, Receptacle | Black | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 26 | Metal | Black Zinc Cobalt | 26 | 16 | ||||||
Amphenol Industrial Operations PT02A-12-4P | Unshielded | Aluminum, Olive Drab Cadmium | Gold | Copper Alloy | Aluminum | N | Neoprene | Male Pins, Receptacle | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 4 | 12-4 | Metal | Olive Drab Chromate over Cadmium | |||||||
Amphenol Industrial Operations PT02A16-8P-023 | Unshielded | Aluminum, Electroless Nickel | Gold | Copper Alloy | Aluminum | N | Neoprene | Male Pins, Receptacle | Silver | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 8 | Metal | Electroless Nickel | ||||||||
Amphenol Industrial Operations PT02A14-5PX | Unshielded | Aluminum, Olive Drab Cadmium | Gold | Copper Alloy | Aluminum | X | Neoprene | Male Pins, Receptacle | Olive Drab | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 14-5 | Metal | Olive Drab Chromate over Cadmium | ||||||||
Amphenol Industrial Operations PT02A12-14P | Unshielded | Aluminum, Olive Drab Cadmium | Gold | Copper Alloy | Aluminum | N | Neoprene | Male Pins, Receptacle | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 14 | Metal | Olive Drab Chromate over Cadmium | 14 | 12 | ||||||
Amphenol Industrial Operations PT02A-20-39P | Unshielded | Aluminum, Olive Drab Cadmium | Gold | Copper Alloy | Aluminum | N | Neoprene | Male Pins, Receptacle | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 39 | Metal | Olive Drab Chromate over Cadmium | 39 | 20 | ||||||
Amphenol Industrial Operations PT02A-12-10SW | Unshielded | Gold | Copper Alloy | Aluminum | W | Neoprene | Receptacle, Female Sockets | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 10 | Metal | Olive Drab Chromate over Cadmium | |||||||||
Amphenol Industrial Operations PT02A-16-8S | Unshielded | Aluminum, Olive Drab Cadmium | Gold | Copper Alloy | Aluminum | N | Neoprene | Receptacle, Female Sockets | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 8 | Metal | Olive Drab Chromate over Cadmium | ||||||||
Amphenol Industrial Operations PT02A-16-23S | Unshielded | Aluminum, Olive Drab Cadmium | Gold | Copper Alloy | Aluminum | N | Neoprene | Receptacle, Female Sockets | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 23 | Metal | Olive Drab Chromate over Cadmium | 23 | 16 | ||||||
Amphenol Industrial Operations PT02A12-14S | Unshielded | Aluminum, Olive Drab Cadmium | Gold | Copper Alloy | Aluminum | N | Neoprene | Receptacle, Female Sockets | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 14 | Metal | Olive Drab Chromate over Cadmium | 14 | 12 | ||||||
Amphenol Industrial Operations PT02A-10-6P | Unshielded | Aluminum, Olive Drab Cadmium | Gold | Copper Alloy | Aluminum | N | Neoprene | Male Pins, Receptacle | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | 6 | 10-6 | Metal | Olive Drab Chromate over Cadmium | |||||||
Amphenol Industrial Operations PT02A18-32SW-027 | Unshielded | Aluminum, Black Zinc Cobalt | Gold | Copper Alloy | Aluminum | W | Neoprene | Receptacle, Female Sockets | Black | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | Metal | Black Zinc Cobalt | 32 | 18 | |||||||
Amphenol Industrial Operations PT02A-18-32S | Unshielded | Aluminum, Olive Drab Cadmium | Gold | Copper Alloy | Aluminum | N | Neoprene | Receptacle, Female Sockets | Olive Drab | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Flange | MIL-DTL-26482 Series I | Bayonet Lock | -55 °C | 125 °C | Metal | Olive Drab Chromate over Cadmium | 32 | 18 |
Description
General part information
PT02A Series
16 Position Circular Connector Receptacle, Male Pins Solder Cup
