887-058-521-204
ActiveEDAC Inc.

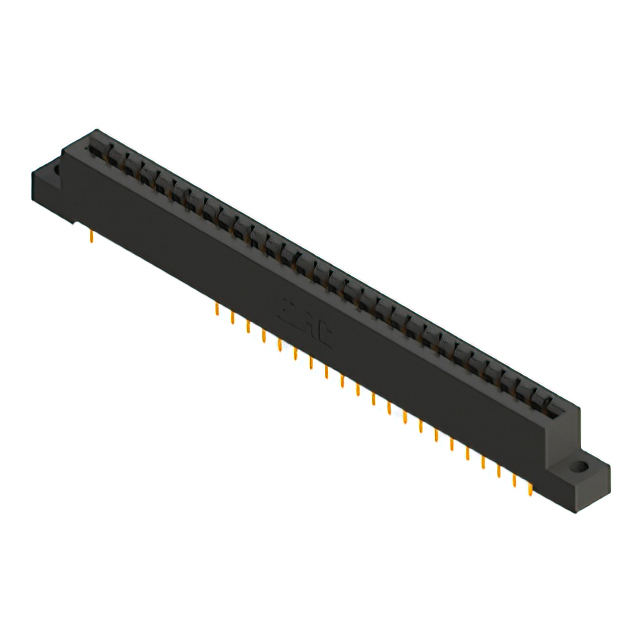

CONN EDGE DUAL FMALE 58POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
887-058-521-204
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 58POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 887-058-521-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 58 |
| Number of Positions/Bay/Row | 29 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
887-058 Series
...
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Mounting Type | Read Out | Termination | Contact Finish | Contact Type | Number of Positions/Bay/Row | Contact Finish Thickness | Contact Finish Thickness | Features | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch [x] | Termination Rows | Color | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Contact Material | Number of Rows | Material - Insulation | Card Type | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Board Edge Straddle Mount | Dual | Solder | Gold | Cantilever | 29 | 10 Áin | 0.25 Ám | Card Extender | 58 | 125 °C | -40 °C | 0.156 in | 3.96 mm | 2 | Black | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Copper Alloy | 2 | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Through Hole | Dual | Solder Eyelet(s) | Gold | Cantilever | 29 | 10 Áin | 0.25 Ám | 58 | 125 °C | -40 °C | 0.156 in | 3.96 mm | 2 | Black | M3 Threaded Insert Top Mount Opening | Copper Alloy | 2 | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Through Hole | Dual | Solder Eyelet(s) | Gold | Cantilever | 29 | 10 Áin | 0.25 Ám | 58 | 125 °C | -40 °C | 0.156 in | 3.96 mm | 2 | Black | 3.96 mm | 0.156 in | Top Mount Opening Unthreaded | Copper Alloy | 2 | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Through Hole | Dual | Solder | Gold | Cantilever | 29 | 10 Áin | 0.25 Ám | 58 | 125 °C | -40 °C | 0.156 in | 3.96 mm | 2 | Black | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Copper Alloy | 2 | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Through Hole | Dual | Solder | Gold | Cantilever | 29 | 10 Áin | 0.25 Ám | 58 | 125 °C | -40 °C | 0.156 in | 3.96 mm | 2 | Black | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | Copper Alloy | 2 | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Through Hole | Dual | Solder Eyelet(s) | Gold | Cantilever | 29 | 10 Áin | 0.25 Ám | 58 | 125 °C | -40 °C | 0.156 in | 3.96 mm | 2 | Black | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Copper Alloy | 2 | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Through Hole | Dual | Solder Eyelet(s) | Gold | Cantilever | 29 | 10 Áin | 0.25 Ám | 58 | 125 °C | -40 °C | 0.156 in | 3.96 mm | 2 | Black | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Copper Alloy | 2 | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Through Hole | Dual | Solder Eyelet(s) | Gold | Cantilever | 29 | 10 Áin | 0.25 Ám | 58 | 125 °C | -40 °C | 0.156 in | 3.96 mm | 2 | Black | Copper Alloy | 2 | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | ||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Through Hole | Dual | Solder Eyelet(s) | Gold | Cantilever | 29 | 10 Áin | 0.25 Ám | 58 | 125 °C | -40 °C | 0.156 in | 3.96 mm | 2 | Black | Copper Alloy | 2 | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Board Edge Straddle Mount | Dual | Solder | Gold | Cantilever | 29 | 10 Áin | 0.25 Ám | Card Extender | 58 | 125 °C | -40 °C | 0.156 in | 3.96 mm | 2 | Black | M3 Threaded Insert Top Mount Opening | Copper Alloy | 2 | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 73.07 | |
Description
General part information
887-058 Series
58 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
