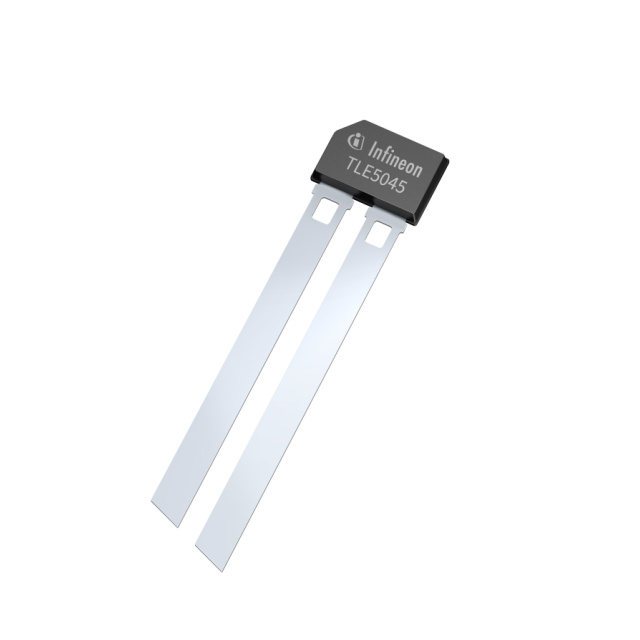

TLE5045ICR050HALA1
ActiveXENSIV™ - TLE5045IC-R050 MAGNETIC WHEEL SPEED SENSOR FOR VEHICLE CONTROL SYSTEMS
Deep-Dive with AI
Search across all available documentation for this part.
TLE5045ICR050HALA1
ActiveXENSIV™ - TLE5045IC-R050 MAGNETIC WHEEL SPEED SENSOR FOR VEHICLE CONTROL SYSTEMS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TLE5045ICR050HALA1 |
|---|---|
| Axis | Single |
| Features | Selectable Scale, Temperature Compensated |
| Grade | Automotive |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Qualification | AEC-Q100 |
| Technology | Hall Effect |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.56 | |
| 5 | $ 1.38 | |||
| 10 | $ 1.31 | |||
| 25 | $ 1.23 | |||
| 50 | $ 1.18 | |||
| 100 | $ 1.13 | |||
| 500 | $ 1.03 | |||
| 1000 | $ 0.99 | |||
| Digi-Reel® | 1 | $ 1.56 | ||
| 5 | $ 1.38 | |||
| 10 | $ 1.31 | |||
| 25 | $ 1.23 | |||
| 50 | $ 1.18 | |||
| 100 | $ 1.13 | |||
| 500 | $ 1.03 | |||
| 1000 | $ 0.99 | |||
| Tape & Box (TB) | 2000 | $ 0.96 | ||
| 4000 | $ 0.93 | |||
| 6000 | $ 0.91 | |||
| 10000 | $ 0.89 | |||
Description
General part information
TLE5045 Series
Infineon's XENSIV TLE5045iC is a wheel speed sensor without direction detection designed for sophisticated vehicle control systems. As the successor of the TLE5041plusC the sensor shows best-in-class jitter performance, thus being the best choice for wheel speed applications. The rotational speed is sensed with high accuracy, enabling the sensor to be used as a component of indirect tire pressure monitoring systems (iTPMS). It is based on integrated giant magneto resistance (iGMR). Excellent sensitivity to magnetic field is specified over a wide temperature range. To meet harsh automotive requirements, robustness to electrostatic discharge (ESD) and electromagnetic compatibility (EMC) was maximized without the need of additional external components.
