304-28-09-MC-0100F
ObsoleteCnC Tech, LLC
CBL RIBN 9COND 0.05 MULTI 100'
Deep-Dive with AI
Search across all available documentation for this part.
304-28-09-MC-0100F
ObsoleteCnC Tech, LLC
CBL RIBN 9COND 0.05 MULTI 100'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 304-28-09-MC-0100F |
|---|---|
| Cable Type | Flat Cable |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 36 AWG |
| Insulation Resistance | 100 MOhms |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Multiple |
| Length [x] | 100 ft |
| Length [x] | 30.48 m |
| Number of Conductors | 9 |
| Operating Temperature | 105 C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Ratings | UL Style 2651 |
| Ribbon Thickness | 0.89 mm |
| Ribbon Thickness | 0.035 in |
| Ribbon Width | 11.43 mm |
| Ribbon Width | 0.45 in |
| Shielding | Unshielded |
| Voltage | 300 V |
| Wire Gauge | 28 AWG |
304-28 Series
| Part | Jacket Color | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Ribbon Width | Ribbon Width | Pitch [x] | Pitch [x] | Ribbon Thickness | Ribbon Thickness | Conductor Material | Insulation Resistance | Ratings | Voltage | Jacket (Insulation) Material | Operating Temperature | Length | Length | Cable Type | Wire Gauge | Shielding | Length [x] | Length [x] | Ribbon Width [y] | Ribbon Width [y] | Ribbon Width [custom] | Ribbon Width [custom] | Ribbon Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CnC Tech, LLC | Multiple | 15 | 7 | 36 AWG | 0.75 " | 19.05 mm | 0.05 in | 1.27 mm | 0.89 mm | 0.035 in | Copper Tinned | 100 MOhms | UL Style 2651 | 300 V | Poly-Vinyl Chloride (PVC) | 105 C | 76.2 m | 3000 " | Flat Cable | 28 AWG | Unshielded | |||||||
CnC Tech, LLC | Multiple | 15 | 7 | 36 AWG | 0.75 " | 19.05 mm | 0.05 in | 1.27 mm | 0.89 mm | 0.035 in | Copper Tinned | 100 MOhms | UL Style 2651 | 300 V | Poly-Vinyl Chloride (PVC) | 105 C | Flat Cable | 28 AWG | Unshielded | 100 ft | 30.48 m | |||||||
CnC Tech, LLC | Multiple | 9 | 7 | 36 AWG | 0.45 in | 11.43 mm | 0.05 in | 1.27 mm | 0.89 mm | 0.035 in | Copper Tinned | 100 MOhms | UL Style 2651 | 300 V | Poly-Vinyl Chloride (PVC) | 105 C | Flat Cable | 28 AWG | Unshielded | 100 ft | 30.48 m | |||||||
CnC Tech, LLC | Multiple | 16 | 7 | 36 AWG | 0.05 in | 1.27 mm | 0.89 mm | 0.035 in | Copper Tinned | 100 MOhms | UL Style 2651 | 300 V | Poly-Vinyl Chloride (PVC) | 105 C | 15.24 m 76.2 m | 50 ft 3000 " | Flat Cable | 28 AWG | Unshielded | 10 ft | 3.05 m | 20.32 mm | 0.8 in | |||||
CnC Tech, LLC | Multiple | 40 | 7 | 36 AWG | 0.05 in | 1.27 mm | 0.89 mm | 0.035 in | Copper Tinned | 100 MOhms | UL Style 2651 | 300 V | Poly-Vinyl Chloride (PVC) | 105 C | Flat Cable | 28 AWG | Unshielded | 100 ft | 30.48 m | 50.8 mm | 2 in | |||||||
CnC Tech, LLC | Multiple | 10 | 7 | 36 AWG | 0.05 in | 1.27 mm | 0.89 mm | 0.035 in | Copper Tinned | 100 MOhms | UL Style 2651 | 300 V | Poly-Vinyl Chloride (PVC) | 105 C | 91.44 m | 300 ft | Flat Cable | 28 AWG | Unshielded | 0.5 " | 12.7 mm | |||||||
CnC Tech, LLC | Multiple | 37 | 7 | 36 AWG | 1.85 in | 46.99 mm | 0.05 in | 1.27 mm | 0.89 mm | 0.035 in | Copper Tinned | 100 MOhms | UL Style 2651 | 300 V | Poly-Vinyl Chloride (PVC) | 105 C | 76.2 m | 3000 " | Flat Cable | 28 AWG | Unshielded | |||||||
CnC Tech, LLC | Multiple | 20 | 7 | 36 AWG | 1 in | 0.05 in | 1.27 mm | 0.89 mm | 0.035 in | Copper Tinned | 100 MOhms | UL Style 2651 | 300 V | Poly-Vinyl Chloride (PVC) | 105 C | 91.44 m | 300 ft | Flat Cable | 28 AWG | Unshielded | 25.4 mm | |||||||
CnC Tech, LLC | Multiple | 44 | 7 | 36 AWG | 0.05 in | 1.27 mm | 0.89 mm | 0.035 in | Copper Tinned | 100 MOhms | UL Style 2651 | 300 V | Poly-Vinyl Chloride (PVC) | 105 C | 91.44 m | 300 ft | Flat Cable | 28 AWG | Unshielded | |||||||||
CnC Tech, LLC | Multiple | 26 | 7 | 36 AWG | 1.3 " | 33.02 mm | 0.05 in | 1.27 mm | 0.89 mm | 0.035 in | Copper Tinned | 100 MOhms | UL Style 2651 | 300 V | Poly-Vinyl Chloride (PVC) | 105 C | 91.44 m | 300 ft | Flat Cable | 28 AWG | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
304-28 Series

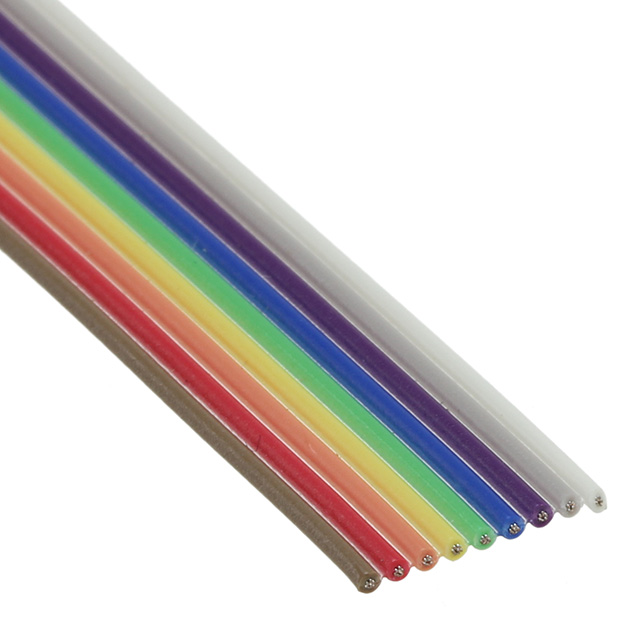

Flat Ribbon Cable Multiple 9 Conductors 0.050" (1.27mm) Flat Cable 100.0' (30.48m)
