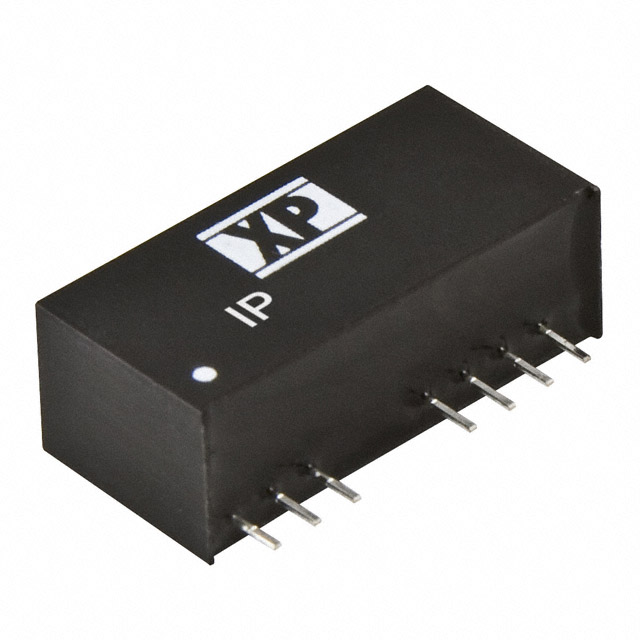

IP1212SA
ActiveXP POWER
DC DC CONVERTER 12V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IP1212SA
ActiveXP POWER
DC DC CONVERTER 12V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IP1212SA |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 250 mA |
| Efficiency | 81 % |
| Features | Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-SIP Module |
| Package / Case | 7 Leads |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 21.9 mm |
| Size / Dimension [x] | 0.86 in |
| Size / Dimension [y] | 9.2 mm |
| Size / Dimension [y] | 0.36 " |
| Size / Dimension [z] | 0.44 " |
| Size / Dimension [z] | 11.1 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 1.6 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 18.62 | |
| 5 | $ 18.06 | |||
| 10 | $ 17.50 | |||
Description
General part information
IP1212 Series
Isolated Module DC DC Converter 1 Output 12V 250mA 4.5V - 18V Input
