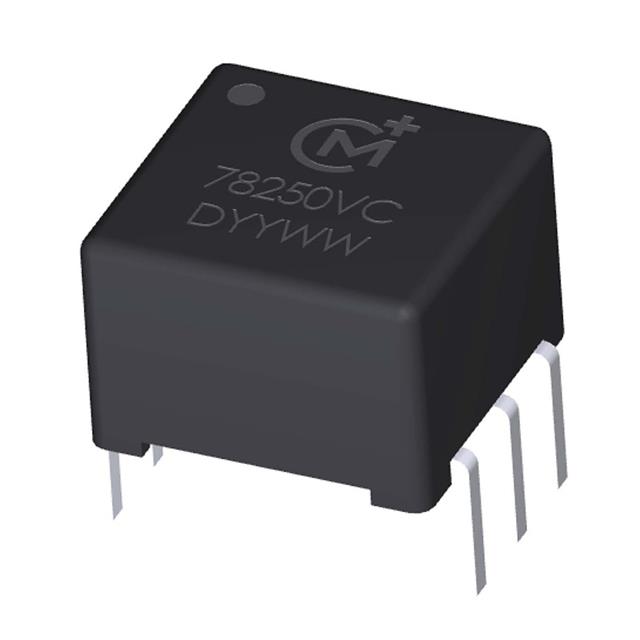

78250C

Active

Murata Power Solutions Inc.

XFRMR MAX250 1.5KVDC 2.5 MH DIP

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

XFRMR MAX250 1.5KVDC 2.5 MH DIP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	78250C	78250 Series

	-	-
For Use With/Related Products	MAX251, MAX250	MAX250/MAX251, MAX251, MAX250
Height - Seated (Max)	-	6.35 mm
Height - Seated (Max)	-	0.25 in
Height - Seated (Max) [Max] [z]	0.26 in	0.26 in
Height - Seated (Max) [Max] [z]	6.6 mm	6.6 mm
Inductance	2 mH	2 mH
Mounting Type	Through Hole	Surface Mount, Through Hole
Weight	0.04 oz	0.04 - 0.91 g
Weight	1.14 g	1.14 g
Weight	-	0.002 lb

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

MAX250 TX 4KVDC 2.5 MH SMD ROHS COMPLIANT: YES

Part	Inductance	Mounting Type	Height - Seated (Max)	Height - Seated (Max) [Max]	For Use With/Related Products	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Weight	Weight	Weight
Murata Power Solutions Inc. 78250MVC-R	2 mH	Surface Mount	6.35 mm	0.25 in	MAX250/MAX251
Murata Power Solutions Inc. 78250MVC
Murata Power Solutions Inc. 78250JC	2 mH	Surface Mount			MAX250, MAX251	0.26 in	6.6 mm	0.91 g	0.002 lb
Murata Power Solutions Inc. 78250MC-R	2 mH	Surface Mount	6.35 mm	0.25 in	MAX250/MAX251
Murata Power Solutions Inc. 78250JC-R
Murata Power Solutions Inc. 78250C
Murata Power Solutions Inc. 78250JC-R
Murata Power Solutions Inc. 78250JVC-R
Murata Power Solutions Inc. 78250C	2 mH	Through Hole			MAX250, MAX251	0.26 in	6.6 mm	0.04 oz		1.14 g
Murata Power Solutions Inc. 78250VC

General part information

XFRMR MAX250 1.5KVDC 2.5 MH DIP

Technical documentation and resources
