627W3W3-324-1ND

Active

EDAC Inc.

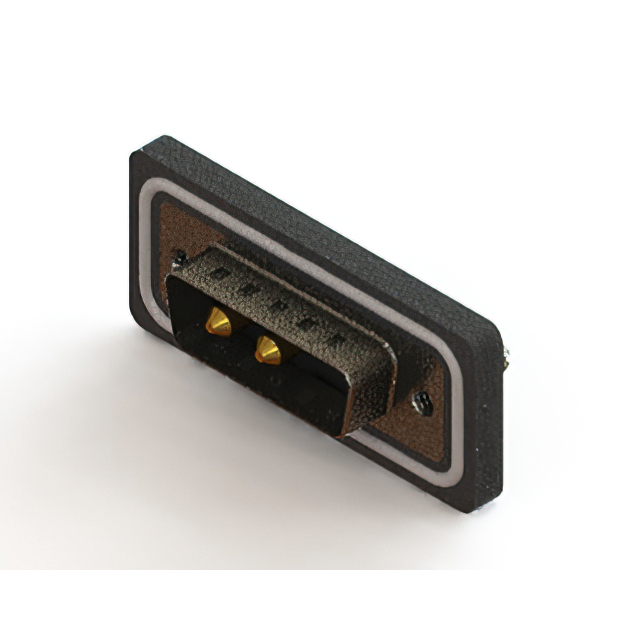

CONN D-SUB PLUG 3P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

627W3W3-324-1ND

Active

EDAC Inc.

CONN D-SUB PLUG 3P PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627W3W3-324-1ND

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	10 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Board Lock, Shielded, Grounding Indents
Flange Feature	Board Side (M3)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Number of Positions	3
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	2 (DA, A)
Shell Size, Connector Layout [custom]	3W3
Termination	Solder
Voltage Rating	125 VDC

627W3W Series

...

Part	Contact Type	Material Flammability Rating	Shell Size, Connector Layout	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Flange Feature	Connector Style	Color	Contact Material	Connector Type	Contact Finish	Number of Rows	Dielectric Material	Number of Positions	Voltage Rating	Shell Material, Finish	Features	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Termination
EDAC Inc. 627W3WK3622-4NA	Power	UL94 V-0	2 (DA A) - 3WK3	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Housing/Shell (M3)	Combo D-Sub	Black	Copper Alloy	Female Sockets Male Pins Plug	Gold	1	Polybutylene Terephthalate (PBT) Glass Filled	3	125 VDC	Nickel Plated Steel	Grounding Indents Shielded	0.76 Ám	30 Áin	40 A
EDAC Inc. 627W3W3-324-1NA	Power	UL94 V-0		-25 °C	85 °C	IP67 - Dust Tight Waterproof	Housing/Shell (M3)	Combo D-Sub	Black	Copper Alloy	Male Pins Plug	Gold	1	Polybutylene Terephthalate (PBT) Glass Filled	3	125 VDC	Nickel Plated Steel	Grounding Indents Shielded	0.38 µm	15 µin	10 A	2 (DA A)	3W3	Solder
EDAC Inc. 627W3W3-324-1ND	Power	UL94 V-0		-25 °C	85 °C	IP67 - Dust Tight Waterproof	Board Side (M3)	Combo D-Sub	Black	Copper Alloy	Male Pins Plug	Gold	1	Polybutylene Terephthalate (PBT) Glass Filled	3	125 VDC	Nickel Plated Steel	Board Lock Grounding Indents Shielded	0.38 µm	15 µin	10 A	2 (DA A)	3W3	Solder
EDAC Inc. 627W3WK3122-1NA	Power	UL94 V-0	2 (DA A) - 3WK3	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Housing/Shell (M3)	Combo D-Sub	Black	Copper Alloy	Female Sockets Male Pins Plug	Gold	1	Polybutylene Terephthalate (PBT) Glass Filled	3	125 VDC	Nickel Plated Steel	Grounding Indents Shielded	0.127 µm	5 µin	10 A
EDAC Inc. 627W3WK3122-3NA	Power	UL94 V-0	2 (DA A) - 3WK3	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Housing/Shell (M3)	Combo D-Sub	Black	Copper Alloy	Female Sockets Male Pins Plug	Gold	1	Polybutylene Terephthalate (PBT) Glass Filled	3	125 VDC	Nickel Plated Steel	Grounding Indents Shielded	0.127 µm	5 µin	30 A
EDAC Inc. 627W3WK3322-2N2	Power	UL94 V-0	2 (DA A) - 3WK3	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Housing/Shell (4-40)	Combo D-Sub	Black	Copper Alloy	Female Sockets Male Pins Plug	Gold	1	Polybutylene Terephthalate (PBT) Glass Filled	3	125 VDC	Nickel Plated Steel	Grounding Indents Shielded	0.38 µm	15 µin	20 A
EDAC Inc. 627W3W3-624-1N2	Power	UL94 V-0		-25 °C	85 °C	IP67 - Dust Tight Waterproof	Housing/Shell (4-40)	Combo D-Sub	Black	Copper Alloy	Male Pins Plug	Gold	1	Polybutylene Terephthalate (PBT) Glass Filled	3	125 VDC	Nickel Plated Steel	Grounding Indents Shielded	0.76 Ám	30 Áin	10 A	2 (DA A)	3W3	Solder
EDAC Inc. 627W3W3-622-2N2	Power	UL94 V-0		-25 °C	85 °C	IP67 - Dust Tight Waterproof	Housing/Shell (4-40)	Combo D-Sub	Black	Copper Alloy	Male Pins Plug	Gold	1	Polybutylene Terephthalate (PBT) Glass Filled	3	125 VDC	Nickel Plated Steel	Grounding Indents Shielded	0.76 Ám	30 Áin	20 A	2 (DA A)	3W3
EDAC Inc. 627W3W3-322-1N2	Power	UL94 V-0		-25 °C	85 °C	IP67 - Dust Tight Waterproof	Housing/Shell (4-40)	Combo D-Sub	Black	Copper Alloy	Male Pins Plug	Gold	1	Polybutylene Terephthalate (PBT) Glass Filled	3	125 VDC	Nickel Plated Steel	Grounding Indents Shielded	0.38 µm	15 µin	10 A	2 (DA A)	3W3
EDAC Inc. 627W3W3-324-2NA	Power	UL94 V-0		-25 °C	85 °C	IP67 - Dust Tight Waterproof	Housing/Shell (M3)	Combo D-Sub	Black	Copper Alloy	Male Pins Plug	Gold	1	Polybutylene Terephthalate (PBT) Glass Filled	3	125 VDC	Nickel Plated Steel	Grounding Indents Shielded	0.38 µm	15 µin	20 A	2 (DA A)	3W3	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 14.51

Description

General part information

627W3W Series

3 (Power) Position D-Sub, Combo Plug, Male Pins Connector
